Intel Desktop Board D845EPI Technical Product Specification
56
2.10 Mechanical Considerations
The Desktop Board D845EPI is designed to fit into either a microATX or an ATX-form-factor
chassis. Figure 11 illustrates the mechanical form factor for the Desktop Board. Dimensions are
given in inches [millimeters]. The outer dimensions are 9.20 inches by 8.20 inches
[233.68 millimeters by 208.28 millimeters]. Location of the I/O connectors and mounting holes
are in compliance with the ATX specification.
#
INTEGRATOR’S NOTE
When installing the Desktop Board in a microATX chassis, make sure that peripheral devices are
installed at least 1.5 inches above the main power connector, the diskette drive connector, the IDE
connector, and the DIMM sockets.
OM16250
6.10
[154.94]
1.700
[42.5]
.150
[3.81]
9.050
[229.87]
6.50
[165.10]
8.800
[223.52]
5.20
[132.08]
.800
[20.32]
2.600
[66.04]
0.00
0.00

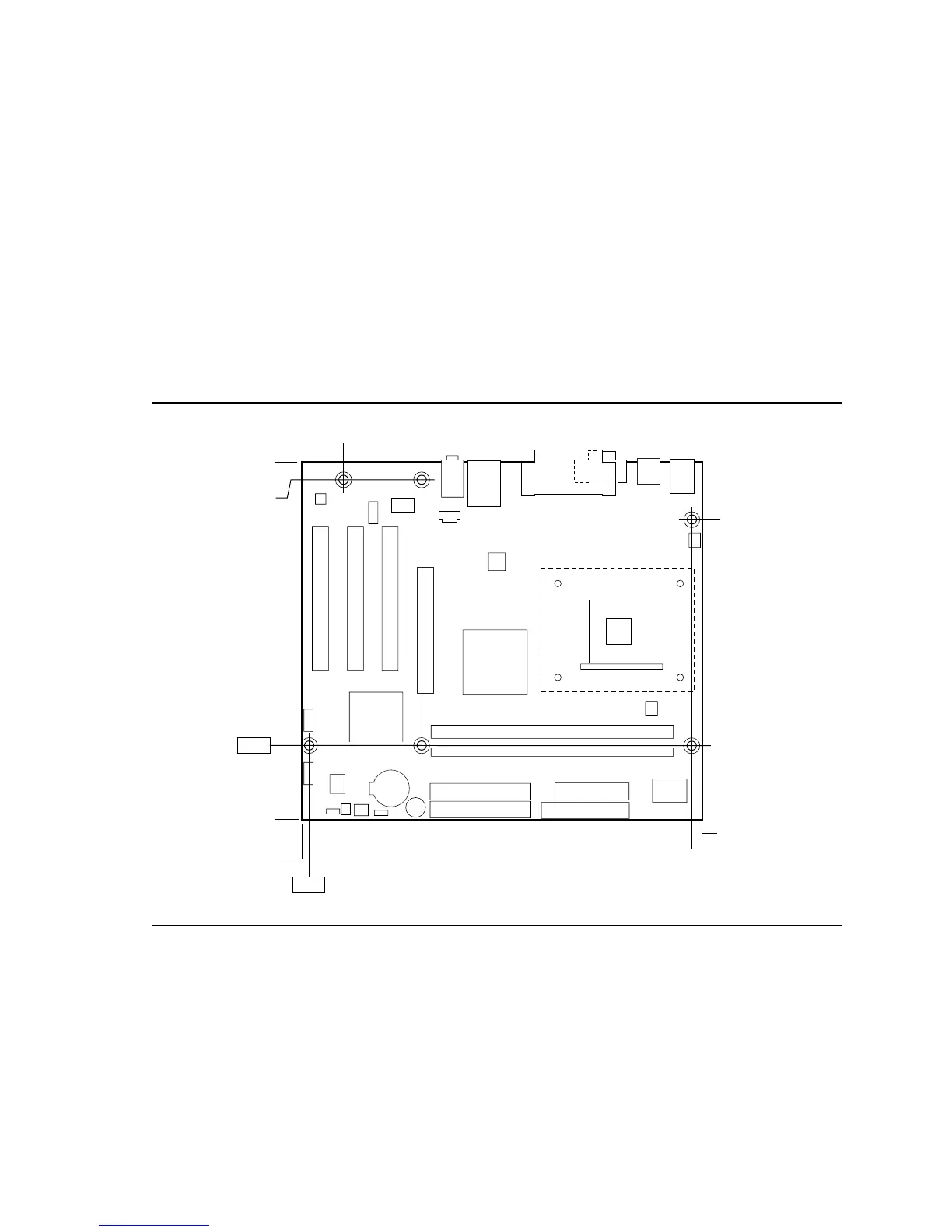

Figure 11. Desktop Board Dimensions
