Technical Reference
55
CAUTION
Do not place jumpers on this block in any configuration other than the one described in Table 30.
Other jumper configurations are not supported and could damage the Desktop Board.

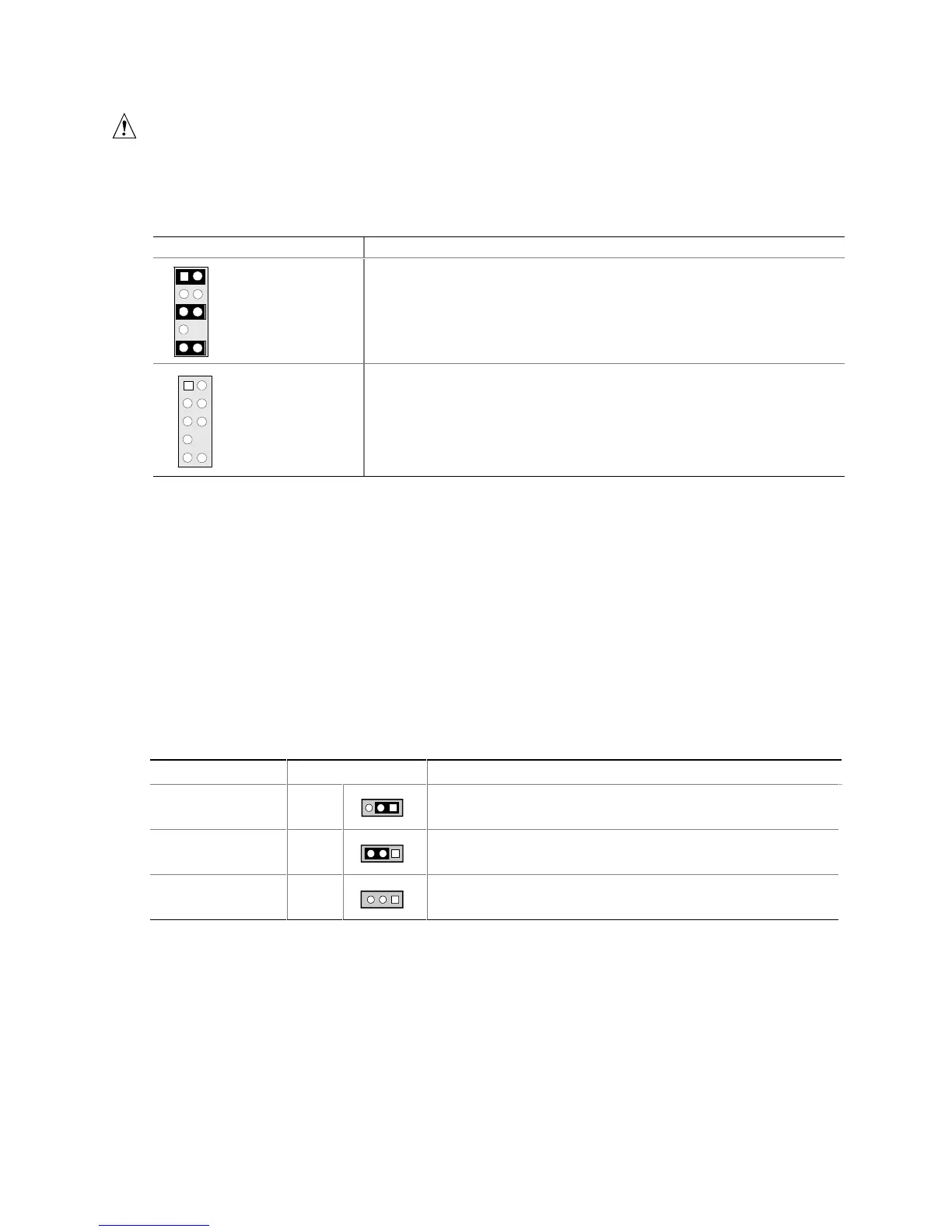

Table 30. Front Panel Audio Connector/Jumper Block
Jumper Setting Configuration
1
3 4
6
9
7
5
2
10
1 and 2
5 and 6
9 and 10
Audio line out signals are routed to the back panel audio line out
connector. The back panel audio line out connector is shown in Figure 4
on page 44.
1
34
6
9
7
5
2
10
No jumpers
installed
Audio line out and mic in signals are available for front panel audio
connectors. Table 17 on page 47 lists the names of the signals available
on this connector when no jumpers are installed.
#
INTEGRATOR’S NOTE
When the jumpers are removed and this connector is used for front panel audio, the back panel
audio line out and mic in connectors are disabled.
2.9.2 BIOS Setup Configuration Jumper Block
The 3-pin jumper block determines the BIOS Setup program’s mode. Table 31 describes the
jumper settings for the three modes: normal, configure, and recovery. When the jumper is set to
configuration mode and the computer is powered-up, the BIOS compares the processor version and
the microcode version in the BIOS and reports if the two match.
Table 31. BIOS Setup Configuration Jumper Settings
Function/Mode Jumper Setting Configuration
Normal
1-2
13
The BIOS uses current configuration information and
passwords for booting.
Configure
2-3
13
After the POST runs, Setup runs automatically. The
maintenance menu is displayed.
Recovery
None
13
The BIOS attempts to recover the BIOS configuration. A
recovery diskette is required.
