Technical Reference
49
2.8.2.3 Add-in Board and Peripheral Interface Connectors

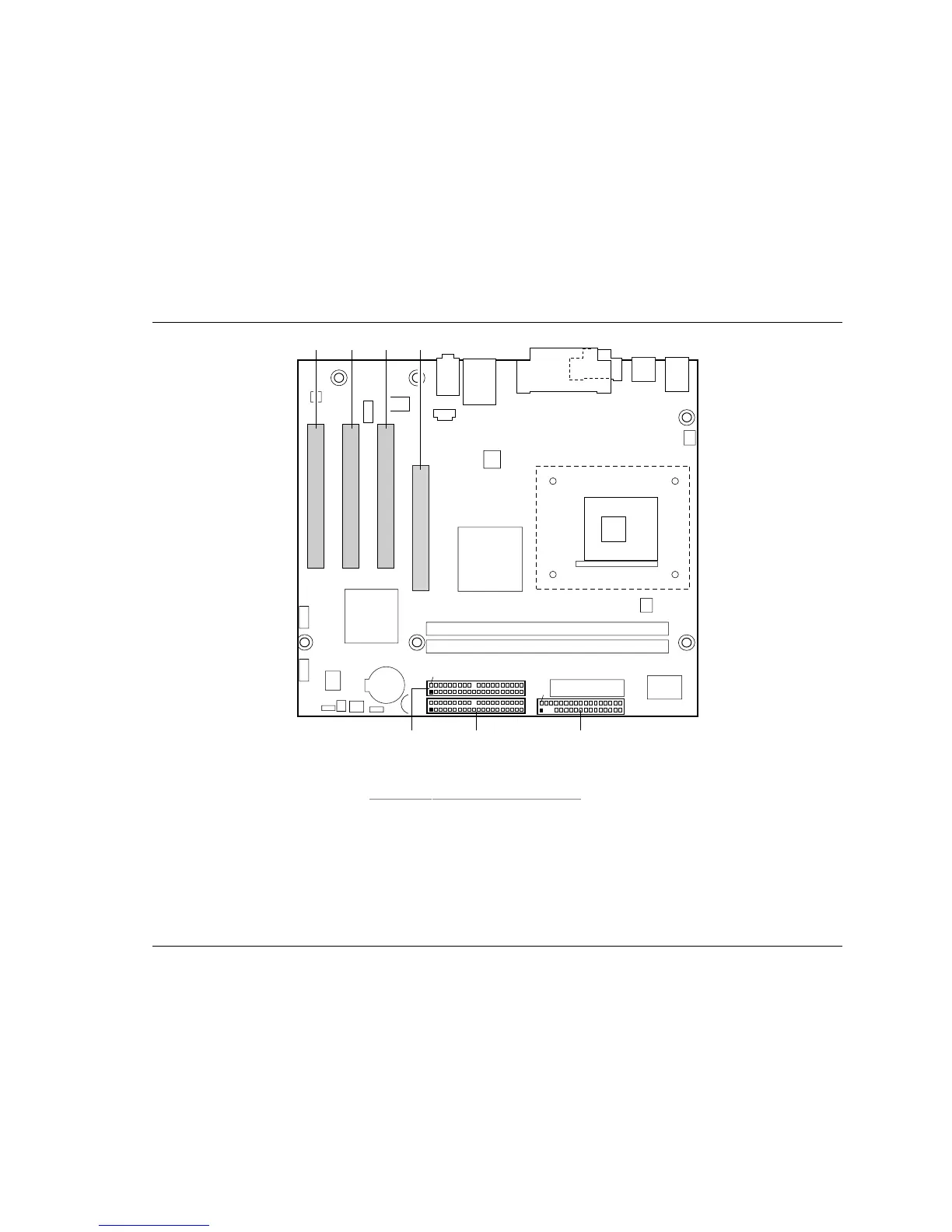

Figure 6 shows the location of the add-in board connector and peripheral connectors for the
Desktop Board D845EPI. Note the following considerations for the PCI bus connectors:
All of the PCI bus connectors are bus master capable.
SMBus signals are routed to PCI bus connector 2, enabling PCI bus add-in boards with SMBus
support to access sensor data on the Desktop Board. The SMBus signals are as follows:
The SMBus clock line is connected to pin A40.
The SMBus data line is connected to pin A41.
OM16247
A
2
40
39
40
39
1
1
G
E
F
2
33
34
1
2
B C D
Item Description
A PCI bus connector 3
B PCI bus connector 2
C PCI bus connector 1
D AGP connector
E Diskette drive
F Primary IDE
G Secondary IDE
Figure 6. Add-in Board and Peripheral Interface Connectors
