Intel Desktop Board D845GERG2/D845GEBV2 Product Guide
28
Installing an AGP or ADD Card
Follow these instructions to install an AGP or ADD card:
1. Observe the precautions in "Before You Begin" on page 21.
2. Place the card in the AGP connector.
3. Press down on the card until it is completely seated in the AGP connector and the card
retention notch snaps into place around the RM pin.
4. Secure the card’s metal bracket to the chassis back panel with a screw.
Removing the AGP or ADD Card
Follow these instructions to remove the AGP or ADD card from the RM:
1. Observe the precautions in "Before You Begin" on page 21.
2. Remove the screw (B) that secures the card’s metal bracket (A) to the chassis back panel.
3. Push back on the RM lever (D), as shown in Figure 9, until the retention pin (C) completely
clears the notch in the card.
4. Pull the card straight up (E).
OM10595
A
B
C
D
E

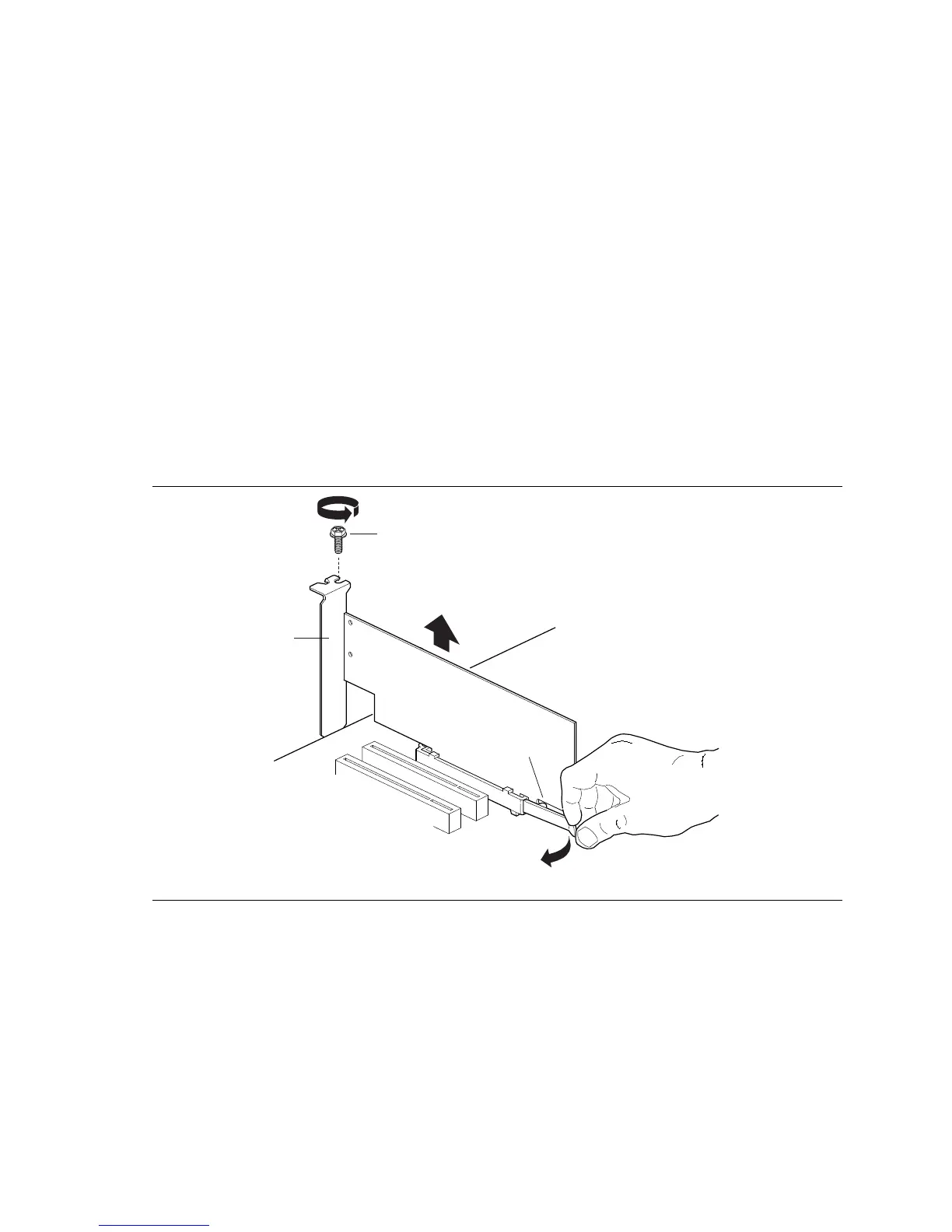

Figure 9. Removing the AGP or ADD Card
