Intel Desktop Board D845GERG2/D845GEBV2 Product Guide
66
Add-In Card and Peripheral Interface Connectors

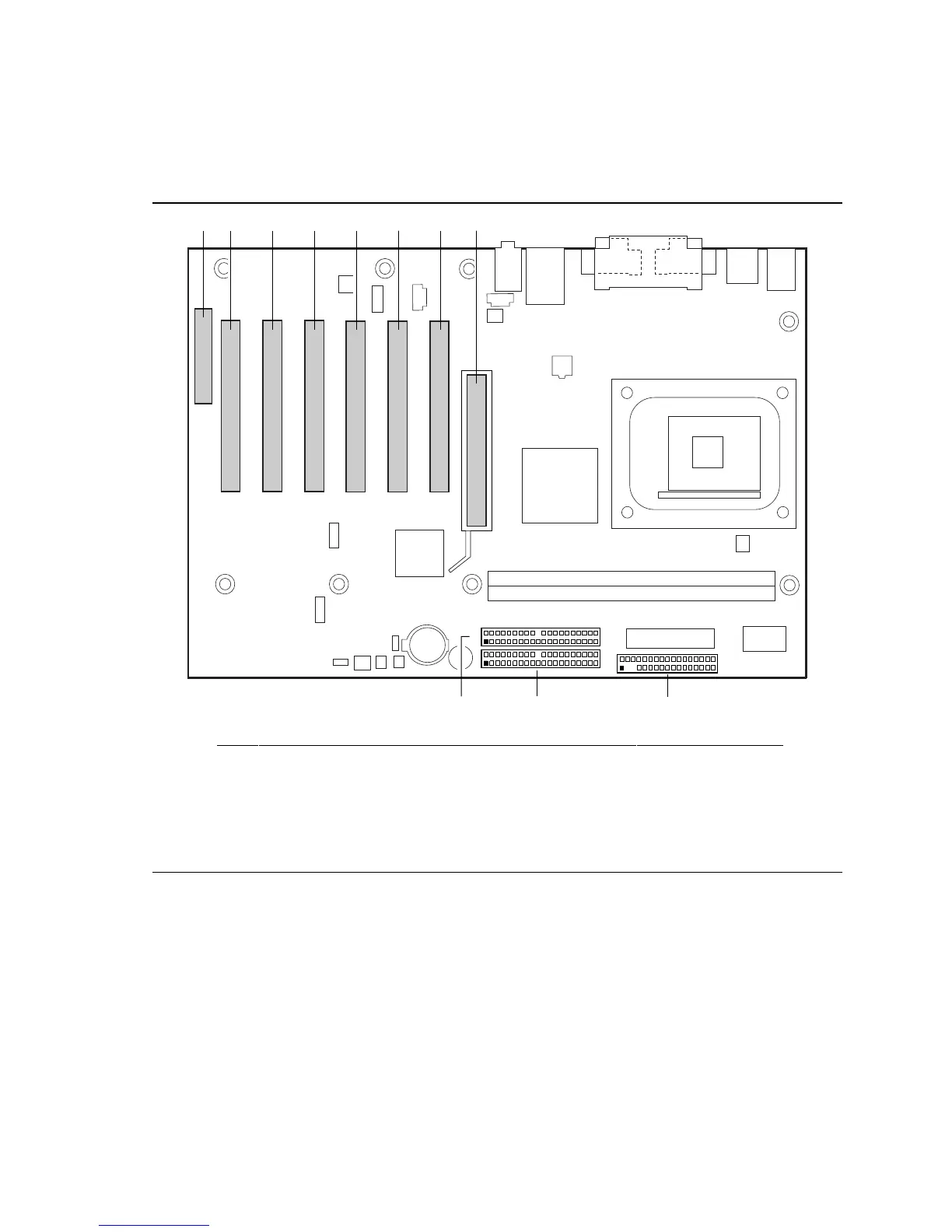

Figure 17 shows the PCI bus add-in card and peripheral interface connectors for Desktop Board
D845GEBV2. Desktop Board D845GERG2 has three PCI bus add-in card connectors.
OM13615
1
2
33
34
1
2
40
39
1
2
40
39
I
KJ
A
BCD H
EFG
Item Description Item Description
A CNR (optional) G PCI bus connector 1
B PCI bus add-in card connector 6 H AGP
C PCI bus add-in card connector 5 I Floppy drive
D PCI bus add-in card connector 4 J Primary IDE
E PCI bus add-in card connector 3 K Secondary IDE
F PCI bus add-in card connector 2 (SMBus routed)
Figure 17. PCI Bus Add-in Card and Peripheral Interface Connectors
