Intel Desktop Board D845GERG2/D845GEBV2 Product Guide
34
Setting the BIOS Configuration Jumper Block
CAUTION
Always turn off the power and unplug the power cord from the computer before changing the
jumper. Moving the jumper with the power on may result in unreliable computer operation.

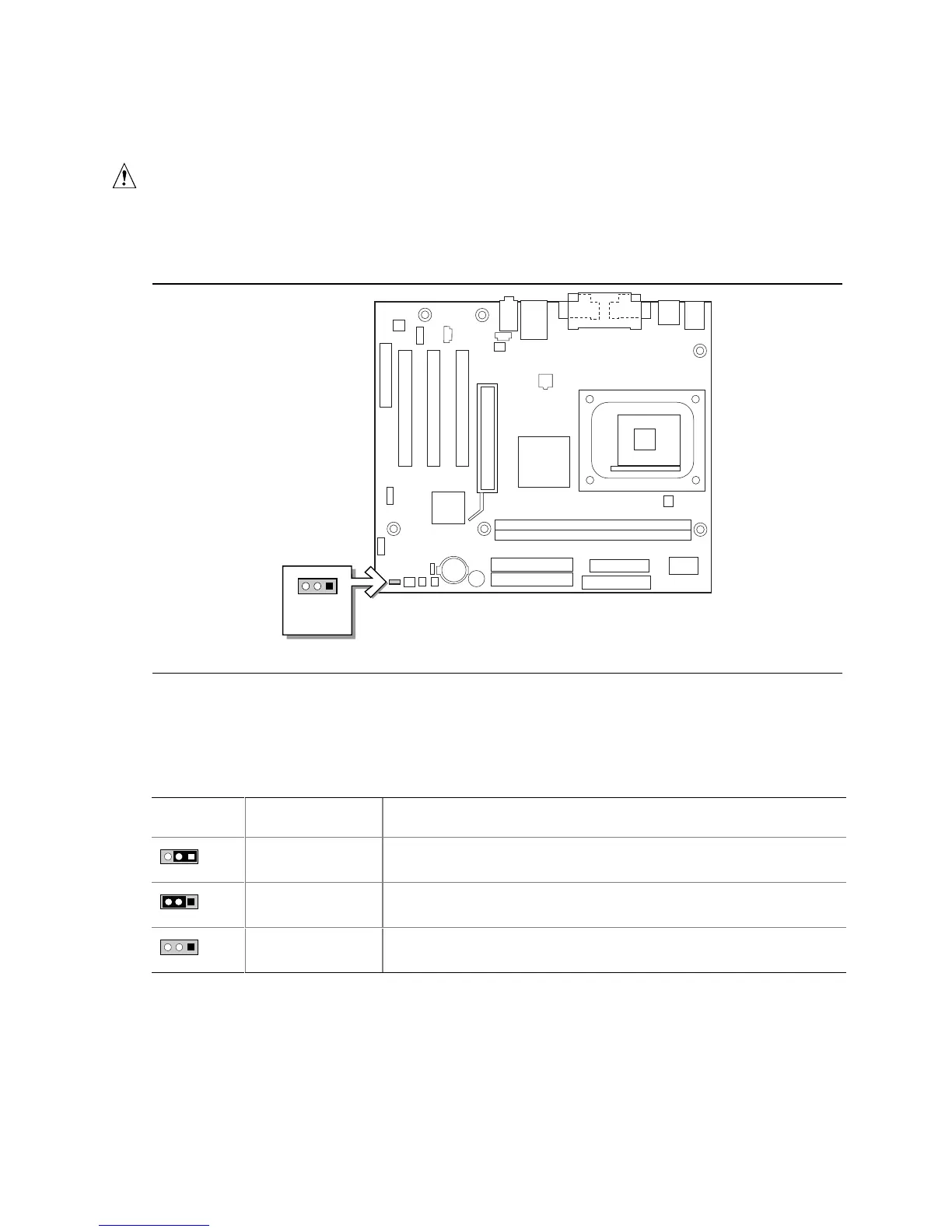

The location of the desktop board’s BIOS configuration jumper is shown in Figure 13.
OM13609
3
1
J9H2
Figure 13. Location of the BIOS Configuration Jumper Block
The three-pin BIOS jumper block enables all board configurations to be done in BIOS Setup.
Table 8 shows the jumper settings for the Setup program modes.
Table 8. Jumper Settings for the BIOS Setup Program Modes (J9H2)
Jumper
Setting
Mode
Description
3
1
Normal (default)
(1-2)
The BIOS uses the current configuration and passwords for booting.
3
1
Configure
(2-3)
After the Power-On Self-Test (POST) runs, the BIOS displays the
Maintenance Menu. Use this menu to clear passwords.
3
1
Recovery
(None)
The BIOS recovers data from a recovery diskette in the event of a failed
BIOS update.
