Back Panel Connectors

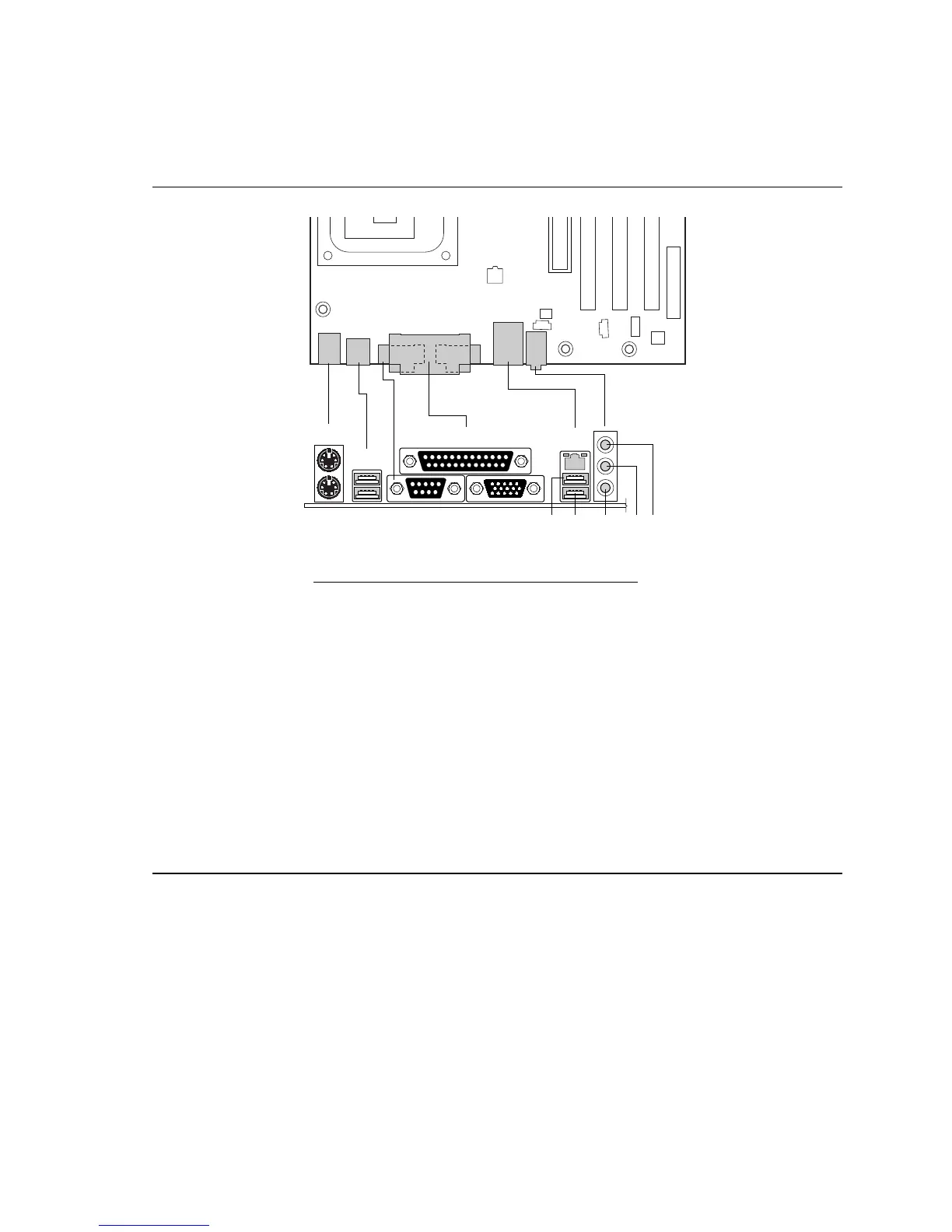

Figure 15 shows the back panel connectors.
OM13611
A
E
H
BF KJI
L M
C
D
G
Item Description Color
A PS/2 mouse port Green
B PS/2 keyboard port Purple
C USB 2.0 port Black
D USB 2.0 port Black
E Parallel port Burgundy
F Serial port Teal
G VGA port Blue
H RJ-45 (optional) Black
I USB 2.0 port Black
J USB 2.0 port Black
K Mic in Pink
L Audio line out Lime green
M Audio line in Light blue
Figure 15. Back Panel Connectors
✏
NOTE
The line out connector, located on the back panel, is designed to power either headphones or
amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
