Audio Connectors

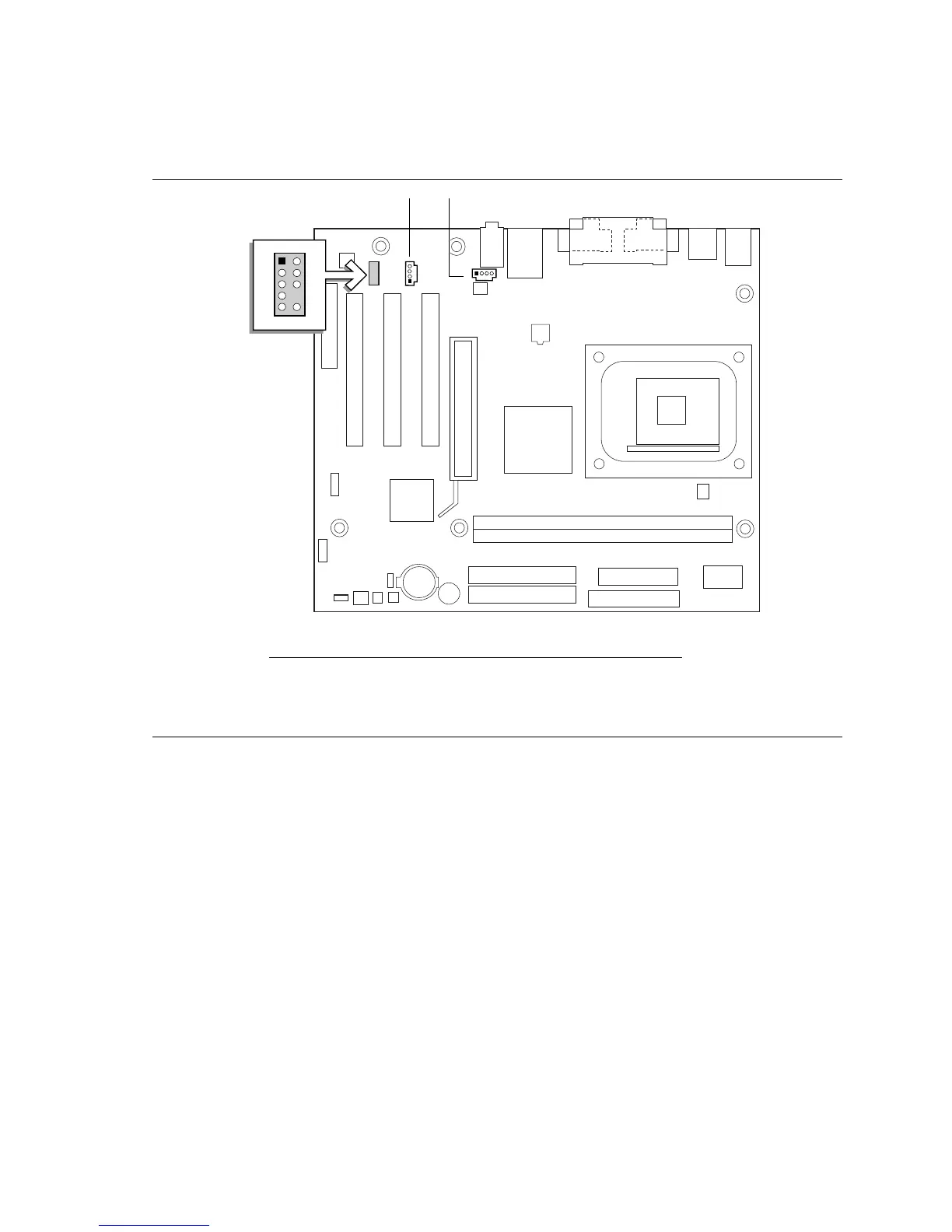

Figure 11 shows the approximate location of the audio connectors.
OM13612
1
4
B
1
3
5
7
9
2
4
6
10
A
4
1
C
Item Description Color
A Front panel audio Black
B Auxiliary line in (ATAPI) Grey
C CD-ROM (ATAPI) Black
Figure 16. Audio Connectors
