Intel Desktop Board D955XBK Technical Product Specification
20
1.4.1.2 Single Channel (Asymmetric) Mode Configurations

NOTE
Dual channel (Interleaved) mode configurations provide the highest memory throughput.

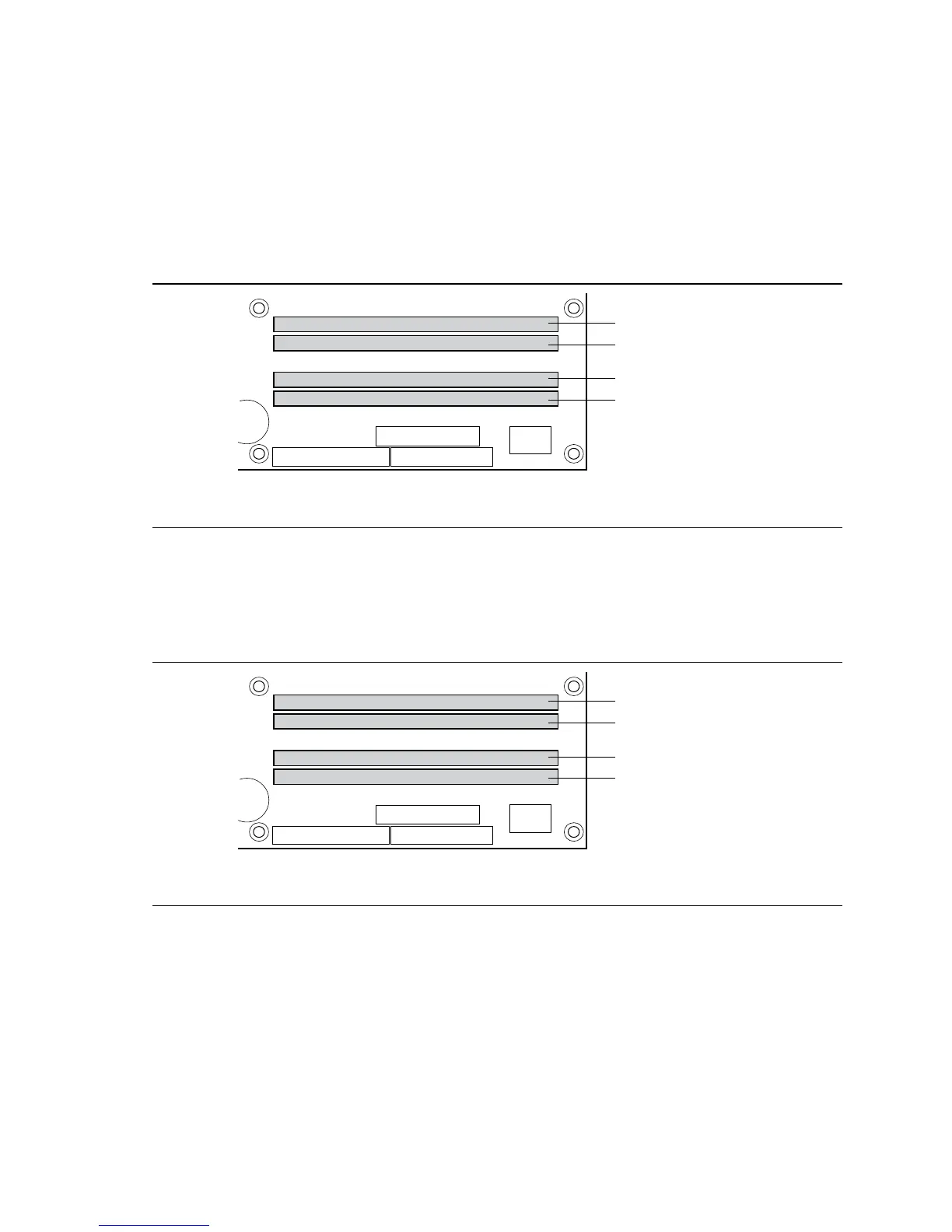

Figure 7 shows a single channel configuration using one DIMM. In this example, only the DIMM0
(blue) socket of Channel A is populated. Channel B is not populated.
OM17125
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
256 MB
Figure 7. Single Channel (Asymmetric) Mode Configuration with One DIMM
Figure 8 shows a single channel configuration using three DIMMs. In this example, the combined
capacity of the two DIMMs in Channel A does not equal the capacity of the single DIMM in the
DIMM0 (blue) socket of Channel B.
OM17126
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
256 MB
512 MB
512 MB
Figure 8. Single Channel (Asymmetric) Mode Configuration with Three DIMMs
