Product Description
35
1.13.2 Thermal Monitoring

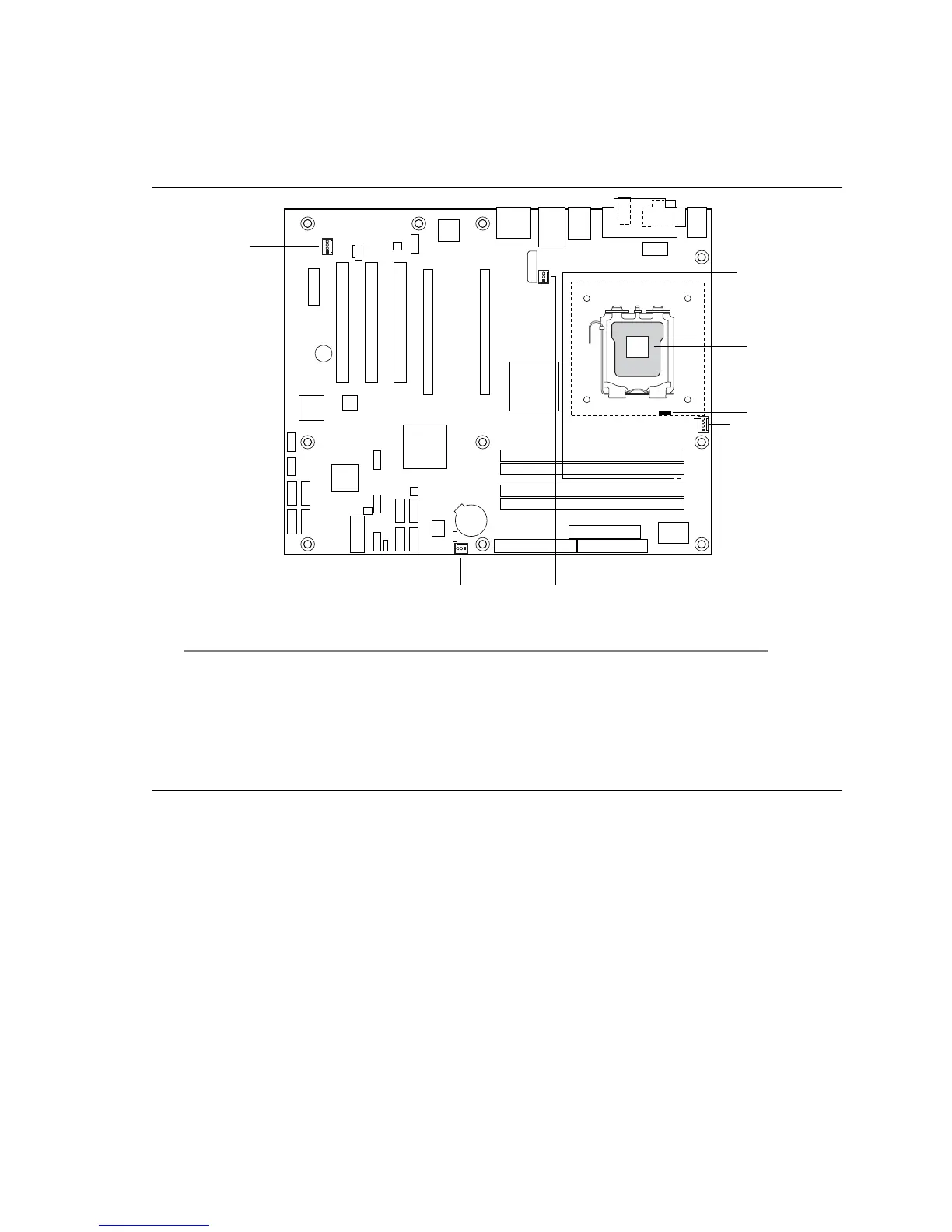

Figure 14 shows the location of the sensors and fan connectors.
OM17725
D
A
C
EF
G
B
1
4
13
3
1
1
4
Item Description
A Remote ambient temperature sensor
B Thermal diode, located on processor die
C Ambient temperature sensor, internal to hardware monitoring and fan control ASIC
D Processor fan connector
E Rear chassis fan connector
F Front chassis fan connector
G Auxiliary rear fan connector
Figure 14. Sensors and Fan Connectors
