2.8 Jumper Block
CAUTION
Do not move the jumper with the power on. Always turn off the power and unplug the power cord
from the computer before changing a jumper setting. Otherwise, the board could be damaged.
Figure 23 shows the location of the jumper block. The 3-pin jumper block determines the BIOS
Setup program’s mode. Table 34 describes the jumper settings for the three modes: normal,
configure, and recovery. When the jumper is set to configure mode and the computer is powered-
up, the BIOS compares the processor version and the microcode version in the BIOS and reports if
the two match.
OM17722
J6J2
3
1

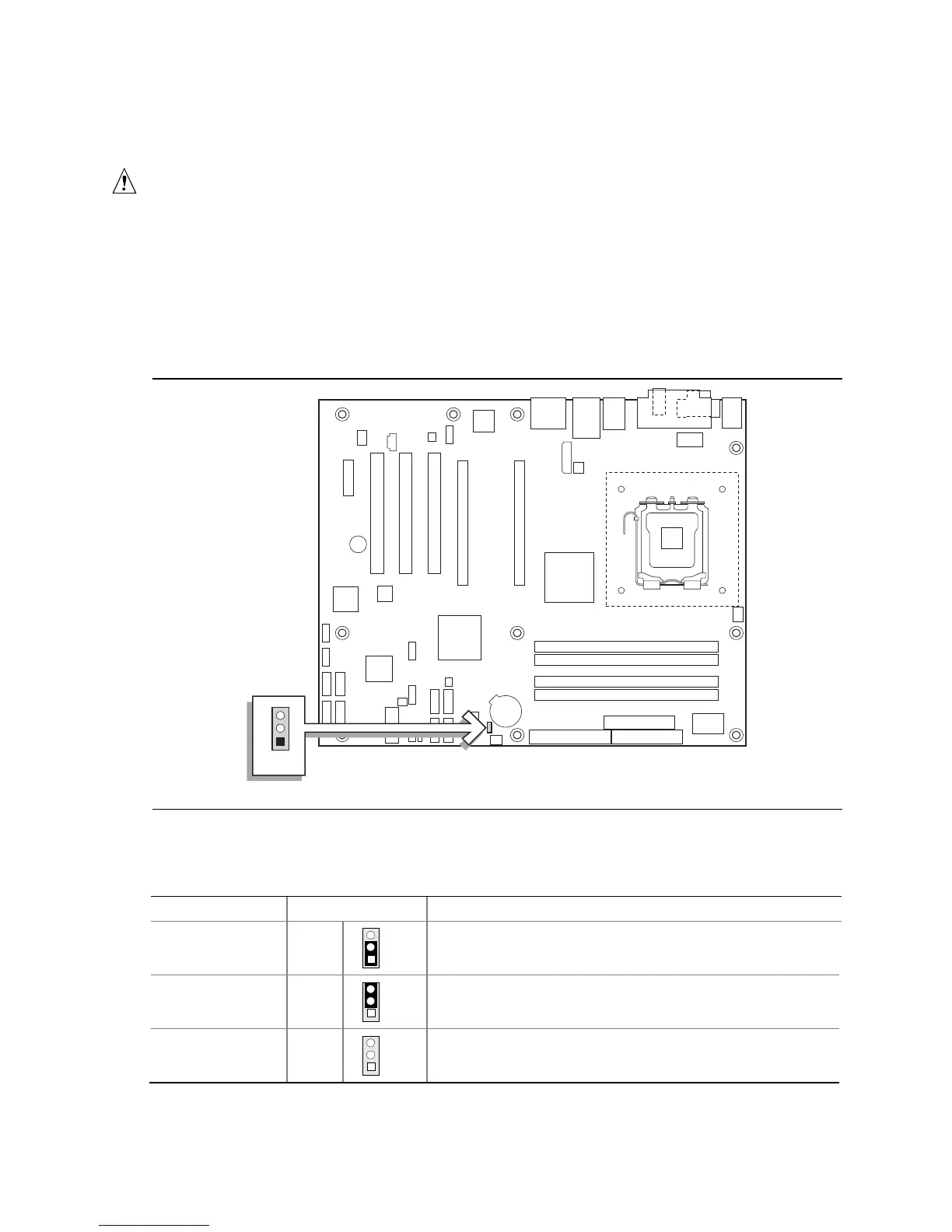

Figure 23. Location of the Jumper Block
Table 34. BIOS Setup Configuration Jumper Settings
Function/Mode Jumper Setting Configuration
Normal 1-2
1
3
The BIOS uses current configuration information and
passwords for booting.
Configure 2-3
1
3
After the POST runs, Setup runs automatically. The
maintenance menu is displayed.
Recovery None
1
3
The BIOS attempts to recover the BIOS configuration. A
recovery diskette is required.
