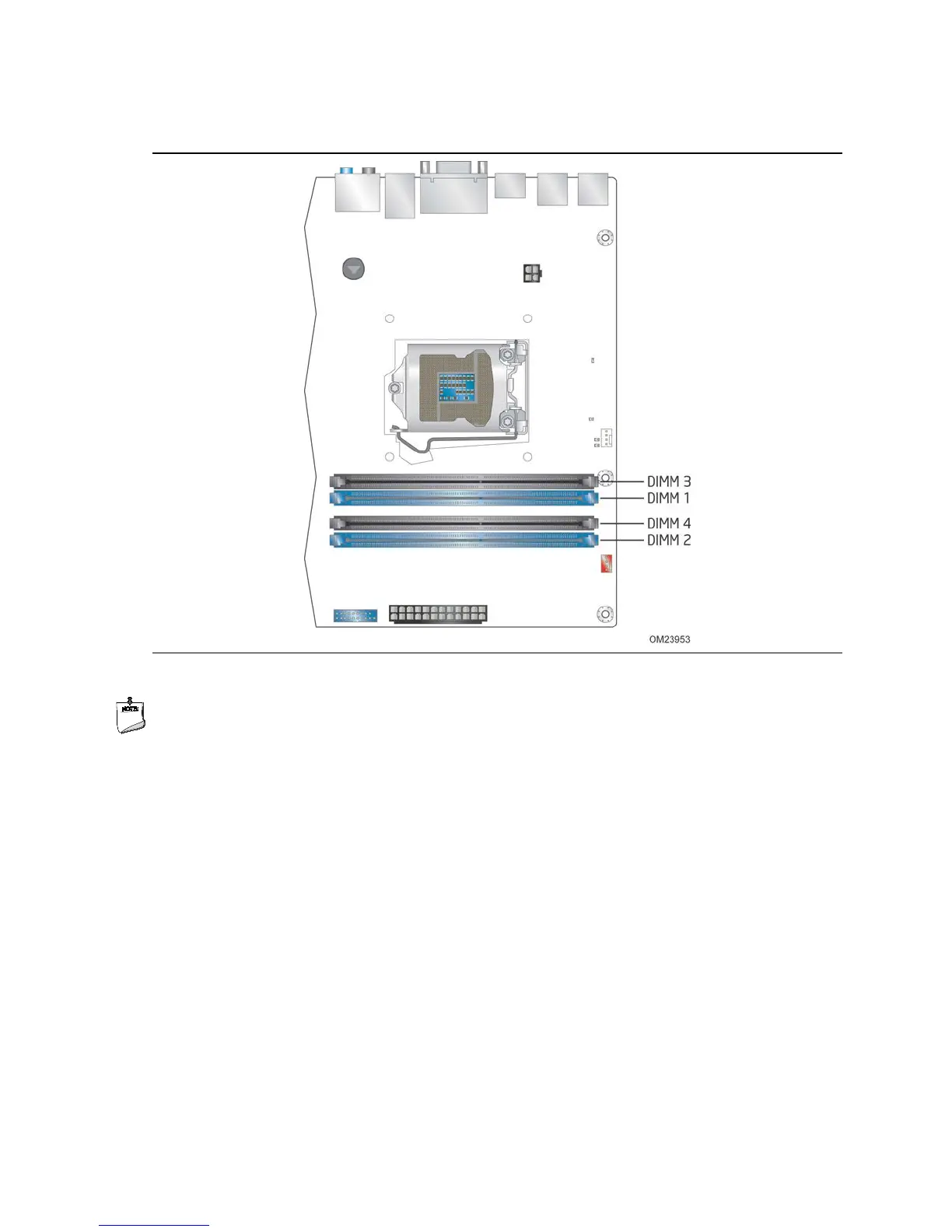

Figure 3 illustrates the memory channel and DIMM configuration.
Figure 3. Memory Channel and DIMM Configuration
NOTE
For best memory performance always install memory in the blue DIMM sockets if
installing only two DIMMs on your board.

Intel DH87MC Specifications

General

Form Factor	Micro ATX
Chipset	Intel H87
Socket	LGA 1150
Memory Slots	4
Maximum Memory	32 GB
Memory Type	DDR3
PCI Express x16	1
SATA 6Gb/s	6
USB 3.0 Ports	4
USB 2.0 Ports	8
RAID Support	RAID 0, 1, 5, 10
Ethernet	Gigabit Ethernet
Video Ports	HDMI, DVI, VGA
PCI Express x1	2 x PCIe 2.0 x1
