2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into an ATX-form-factor chassis. Figure 15 illustrates the
mechanical form factor for the board. Dimensions are given in inches [millimeters].
The outer dimensions are 9.60 inches by 12.0 inches [243.84 millimeters by
304.80 millimeters]. Location of the I/O connectors and mounting holes are in
compliance with the ATX specification.

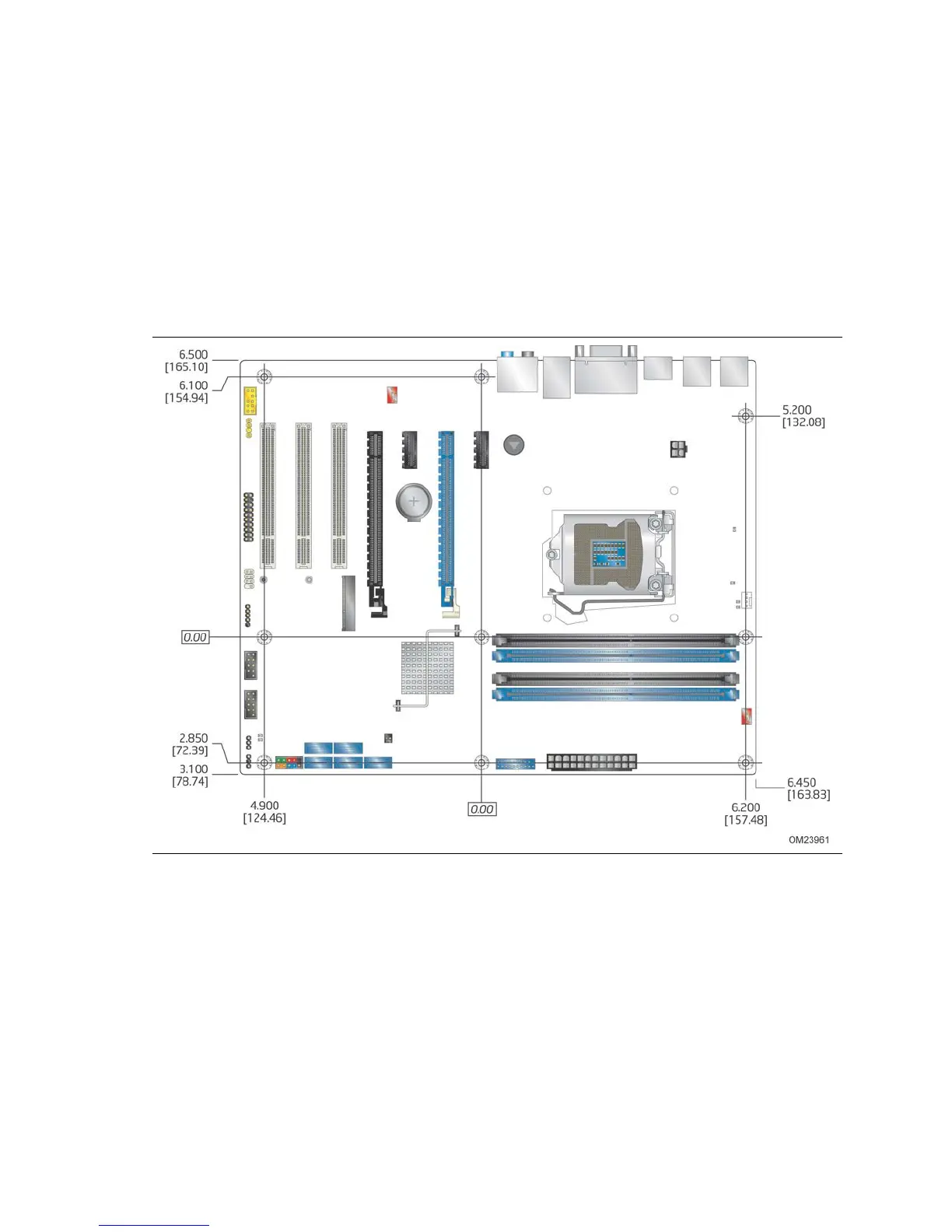

Figure 15. Board Dimensions

Intel DH87MC Specifications

General

Form Factor	Micro ATX
Chipset	Intel H87
Socket	LGA 1150
Memory Slots	4
Maximum Memory	32 GB
Memory Type	DDR3
PCI Express x16	1
SATA 6Gb/s	6
USB 3.0 Ports	4
USB 2.0 Ports	8
RAID Support	RAID 0, 1, 5, 10
Ethernet	Gigabit Ethernet
Video Ports	HDMI, DVI, VGA
PCI Express x1	2 x PCIe 2.0 x1
