Intel Desktop Board DH87MC Technical Product Specification
54
2.3 BIOS Security Jumper
CAUTION
Do not move the jumper with the power on. Always turn off the power and unplug the
power cord from the computer before changing a jumper setting. Otherwise, the
board could be damaged.
Figure 14 shows the location of the jumper. The 3-pin jumper determines the BIOS
Security program’s mode. Table 32 describes the jumper settings for the three
modes: normal, lockdown, and configuration.

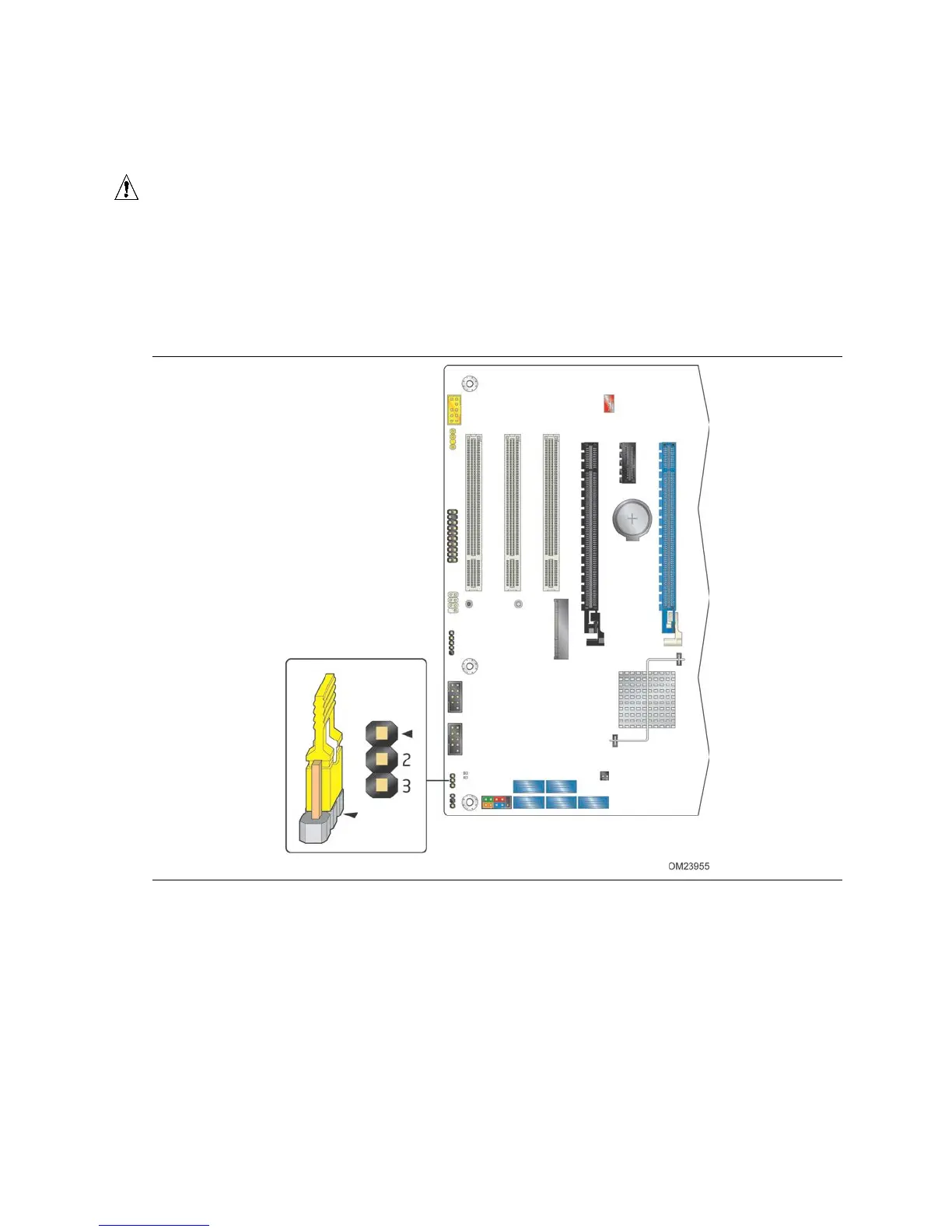

Figure 14. Location of the Jumper

Intel DH87MC Specifications

General

Form Factor	Micro ATX
Chipset	Intel H87
Socket	LGA 1150
Memory Slots	4
Maximum Memory	32 GB
Memory Type	DDR3
PCI Express x16	1
SATA 6Gb/s	6
USB 3.0 Ports	4
USB 2.0 Ports	8
RAID Support	RAID 0, 1, 5, 10
Ethernet	Gigabit Ethernet
Video Ports	HDMI, DVI, VGA
PCI Express x1	2 x PCIe 2.0 x1
