Intel Desktop Board DH87MC Technical Product Specification
32
1.10.4 Thermal Monitoring

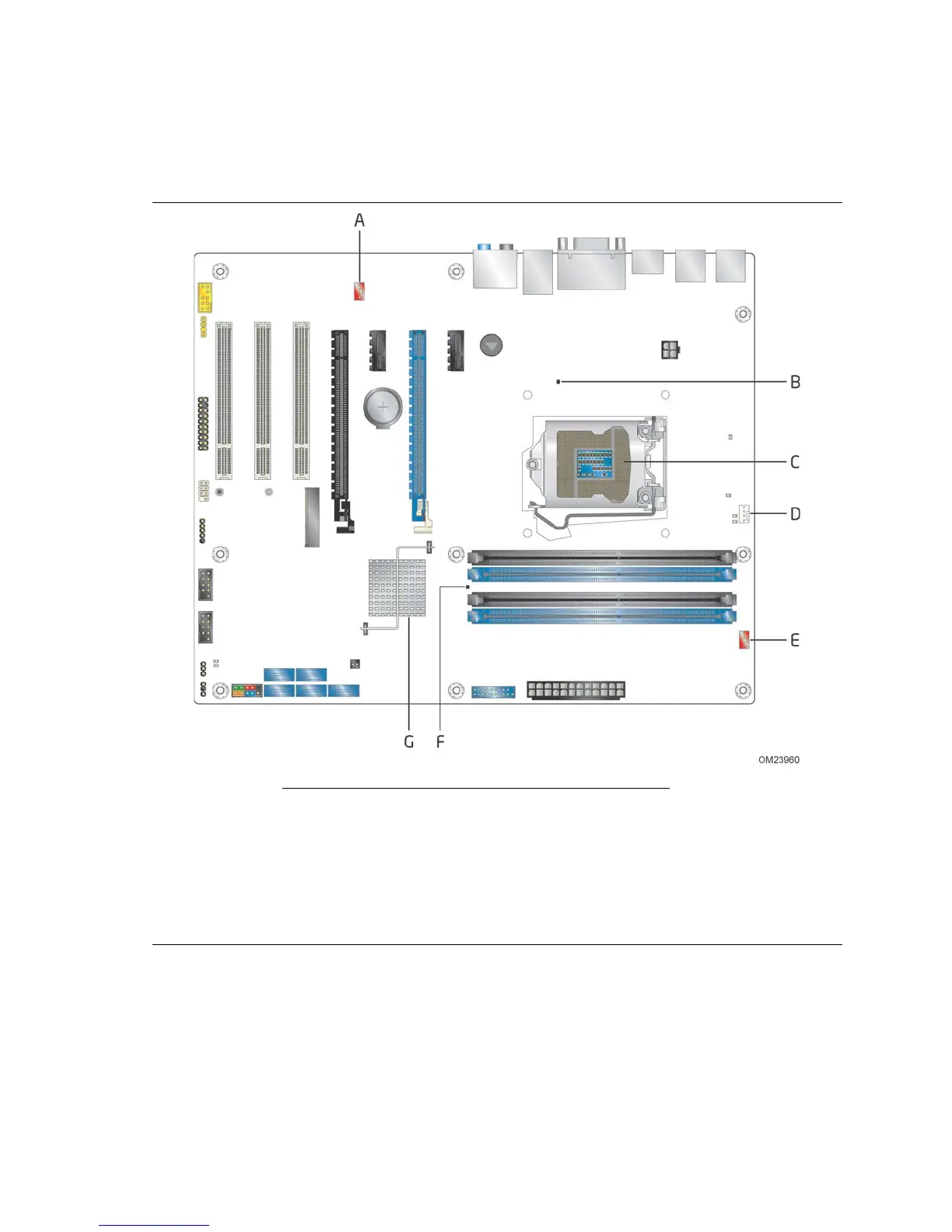

Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Voltage regulator thermal sensor
C Thermal diode, located on the processor die
D Processor fan header
E Front fan header
F DIMM thermal sensor
G Thermal diode, located on the Intel H87 PCH
Figure 6. Thermal Sensors and Fan Headers

Intel DH87MC Specifications

General

Form Factor	Micro ATX
Chipset	Intel H87
Socket	LGA 1150
Memory Slots	4
Maximum Memory	32 GB
Memory Type	DDR3
PCI Express x16	1
SATA 6Gb/s	6
USB 3.0 Ports	4
USB 2.0 Ports	8
RAID Support	RAID 0, 1, 5, 10
Ethernet	Gigabit Ethernet
Video Ports	HDMI, DVI, VGA
PCI Express x1	2 x PCIe 2.0 x1
