Intel Desktop Board DH87MC Technical Product Specification
52
2.2.2.6 Front Panel Connectors and Headers

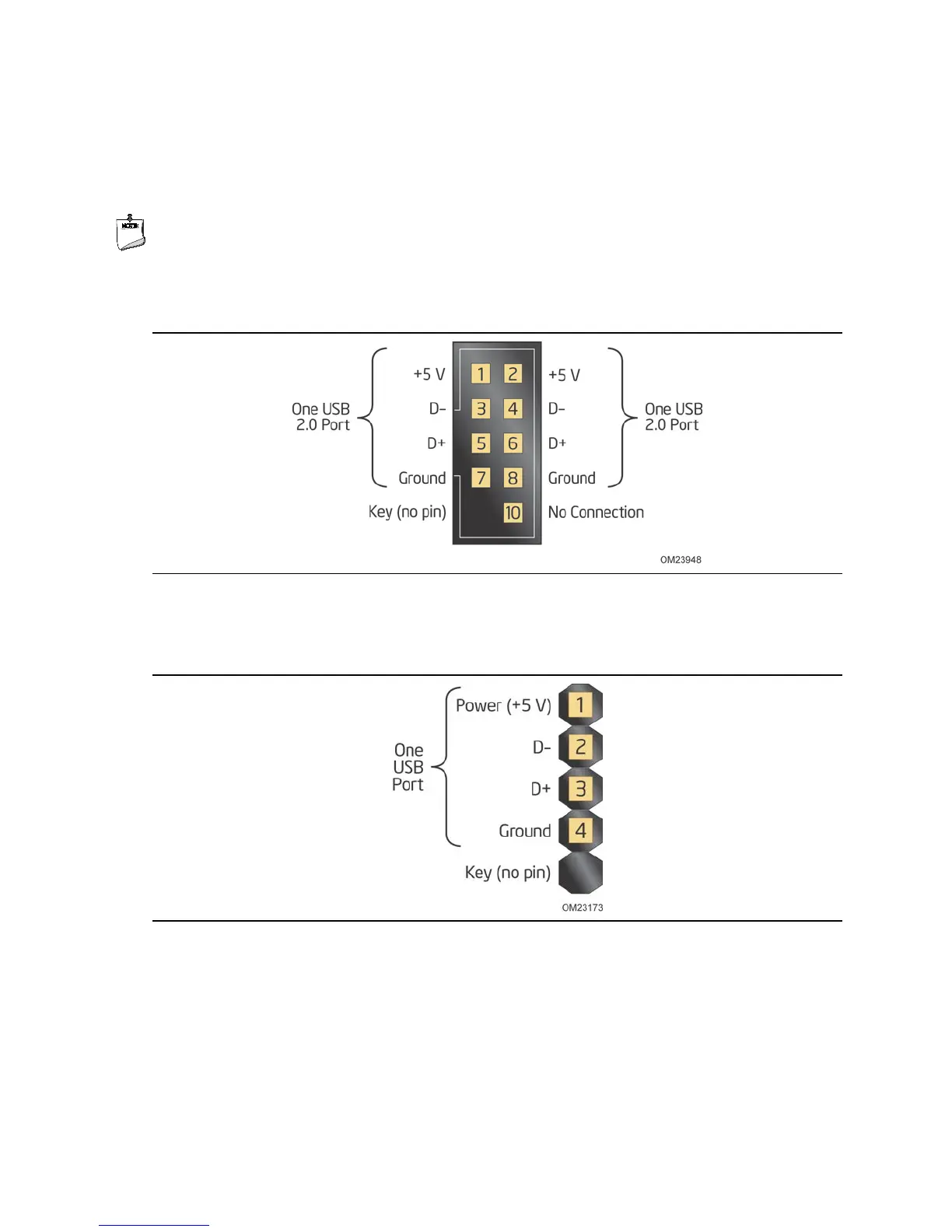

Figure 11, Figure 12, and Figure 13 are connection diagrams for the front panel USB
connectors and headers.
NOTE
• The +5 V DC power on the USB connectors is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
Figure 11. Connection Diagram for the Front Panel Dual-Port
USB 2.0 Connectors
Figure 12. Connection Diagram for the Front Panel
USB 2.0 Single-Port Header

Intel DH87MC Specifications

General

Form Factor	Micro ATX
Chipset	Intel H87
Socket	LGA 1150
Memory Slots	4
Maximum Memory	32 GB
Memory Type	DDR3
PCI Express x16	1
SATA 6Gb/s	6
USB 3.0 Ports	4
USB 2.0 Ports	8
RAID Support	RAID 0, 1, 5, 10
Ethernet	Gigabit Ethernet
Video Ports	HDMI, DVI, VGA
PCI Express x1	2 x PCIe 2.0 x1
