Technical Reference
41
2.2.1 Back Panel Connectors

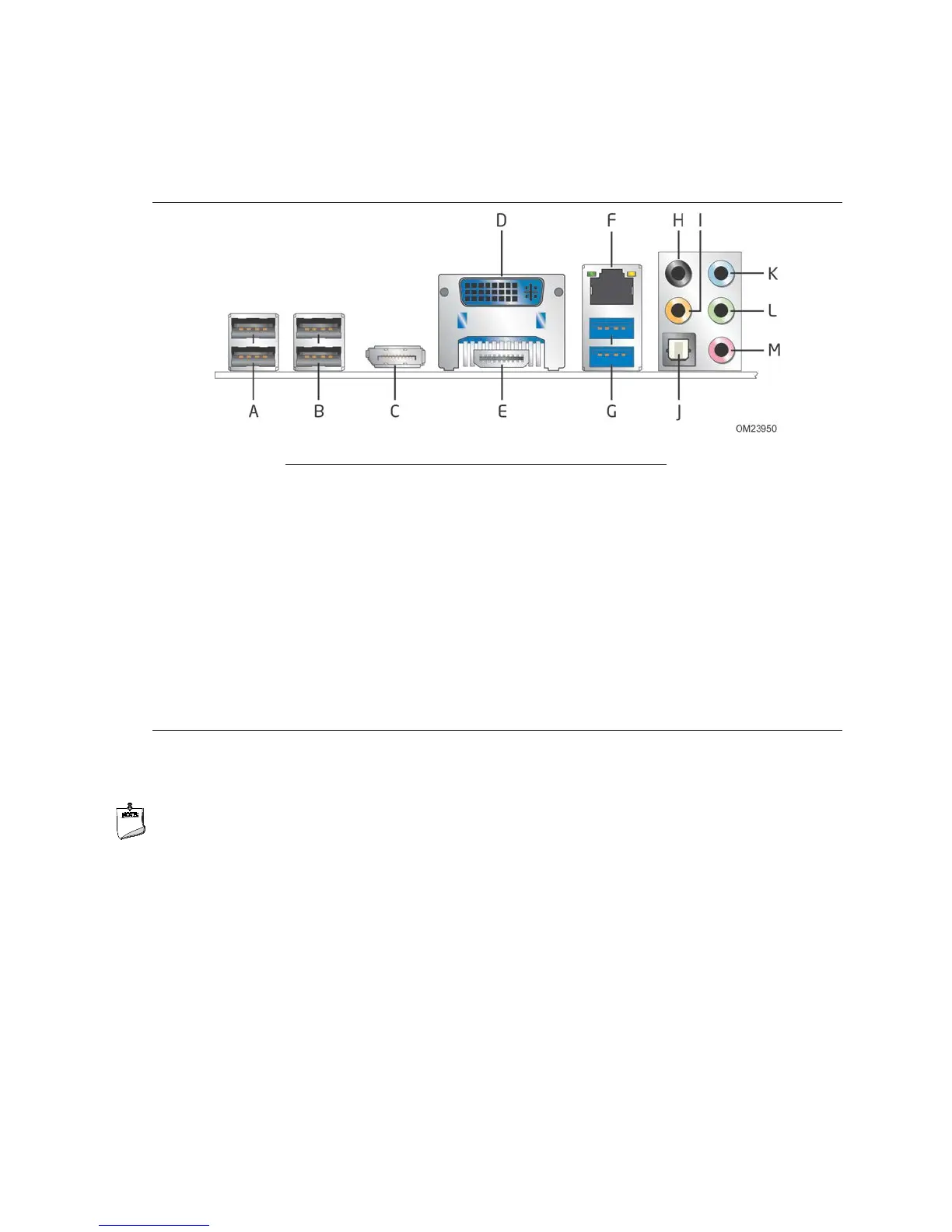

Figure 8 shows the location of the back panel connectors for the board.
Item Description
A USB 2.0 connectors
B USB 2.0 connectors
C DisplayPort connector
D DVI-I connector
E HDMI connector
F LAN port
G USB 3.0 connectors
H Rear surround
I Center channel and LFE (subwoofer)
J S/PDIF out (optical)
K Line-in
L Line-out (Front speaker)
M Mic-in (Side Surround)
Figure 8. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
