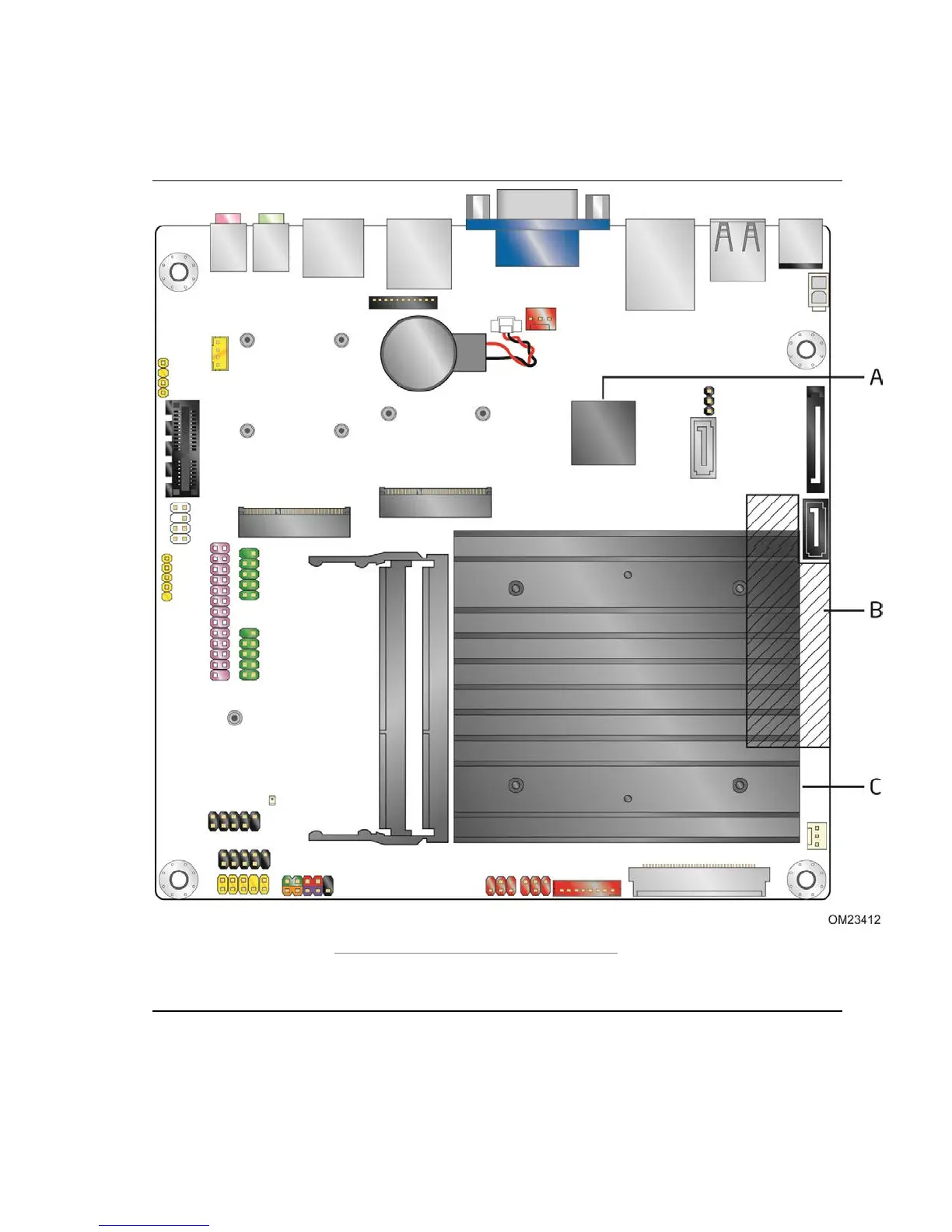

Figure 23 shows the locations of the localized high temperature zones.
Item Description
A Intel NM10 Express Chipset
B Processor voltage regulator area
C Processor socket
Figure 23. Localized High Temperature Zones
