Intel Desktop Board DQ45CB Technical Product Specification
36
1.15.4 Thermal Monitoring

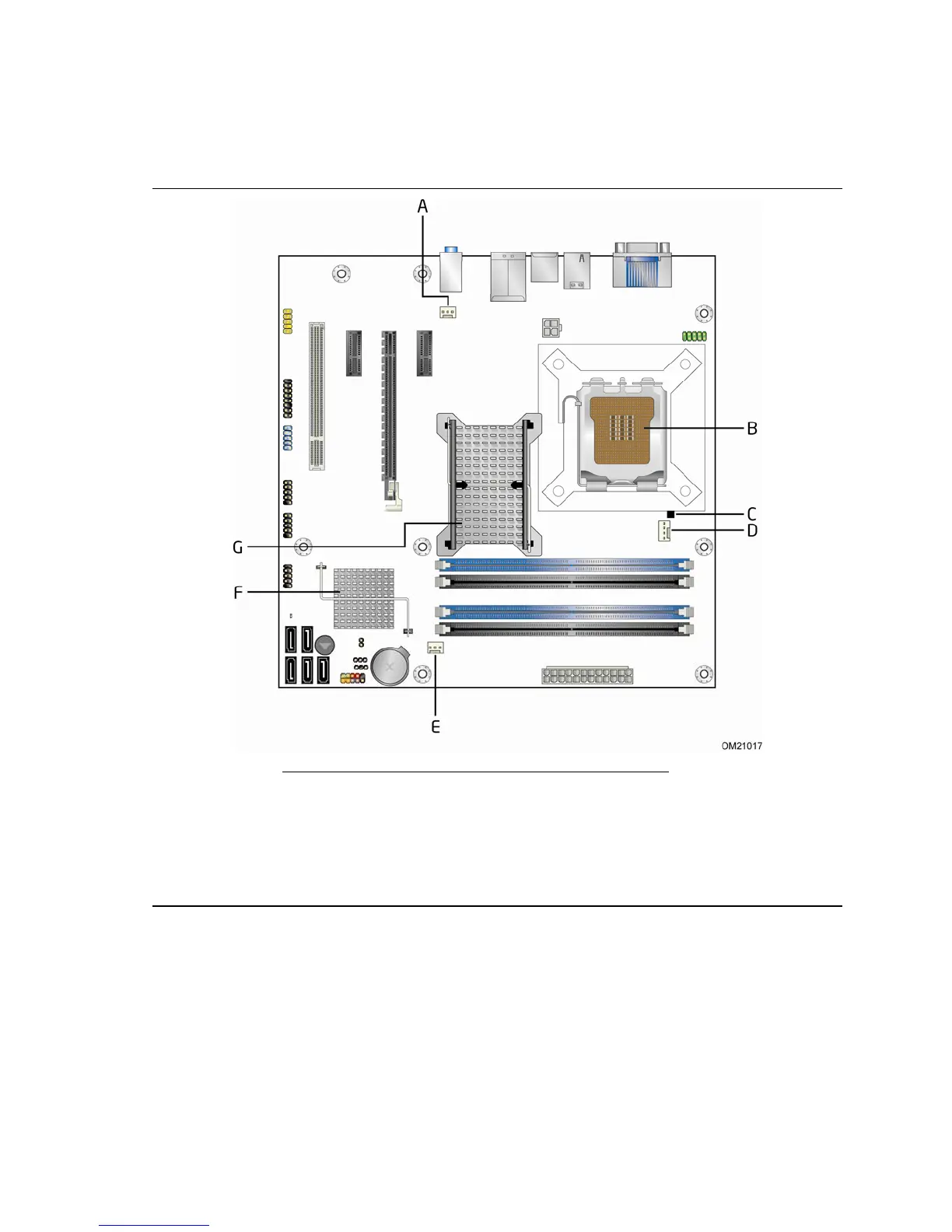

Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan
B Thermal diode, located on processor die
C Remote thermal sensor
D Processor fan
E Front chassis fan
F Thermal diode, located on the ICH10DO die
G Thermal diode, located on the GMCH die
Figure 6. Thermal Sensors and Fan Headers
NOTE
The minimum thermal reporting threshold for the GMCH is 66 °C. The GMCH thermal
sensor will display 66 °C until the temperature rises above this point.
