Intel Desktop Board DQ45CB Technical Product Specification
58
2.2.2.6 Front Panel USB Headers
Figure 12 is a connection diagram for the front panel USB headers.
#
INTEGRATOR’S NOTES
• The +5 V DC power on the USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification
for high-speed USB devices.

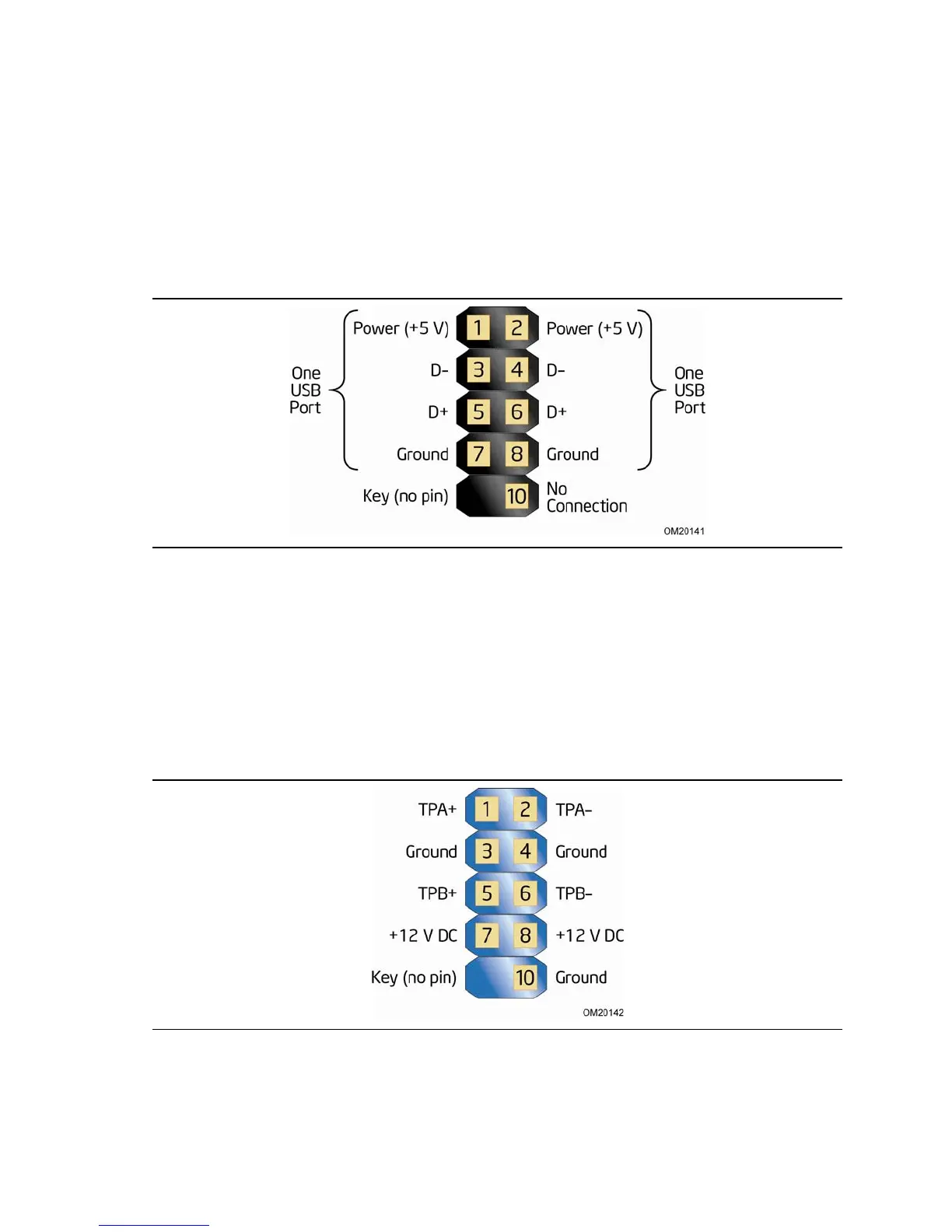

Figure 12. Connection Diagram for Front Panel USB Headers
2.2.2.7 Front Panel IEEE 1394a Header
Figure 13 is a connection diagram for the IEEE 1394a header.
#
INTEGRATOR’S NOTES
• The +12 V DC power on the IEEE 1394a header is fused.
• The IEEE 1394a header provides one IEEE 1394a port.
Figure 13. Connection Diagram for IEEE 1394a Header
