Intel DQ67OW Product Guide

Installing and Replacing Desktop Board Components
41
Installing a Processor Fan Heat Sink
Intel Desktop Board DQ67OW has mounting holes for a processor fan heat sink. For
instructions on how to attach the processor fan heat sink to the Desktop Board, refer
to the boxed processor manual or boxed thermal solution manual.
Connecting the Processor Fan Heat Sink Cable
Connect the processor fan heat sink power cable to the 4-pin processor fan header
(see Figure 12). A fan with a 4-pin connector as shown in Figure 12 is recommended.

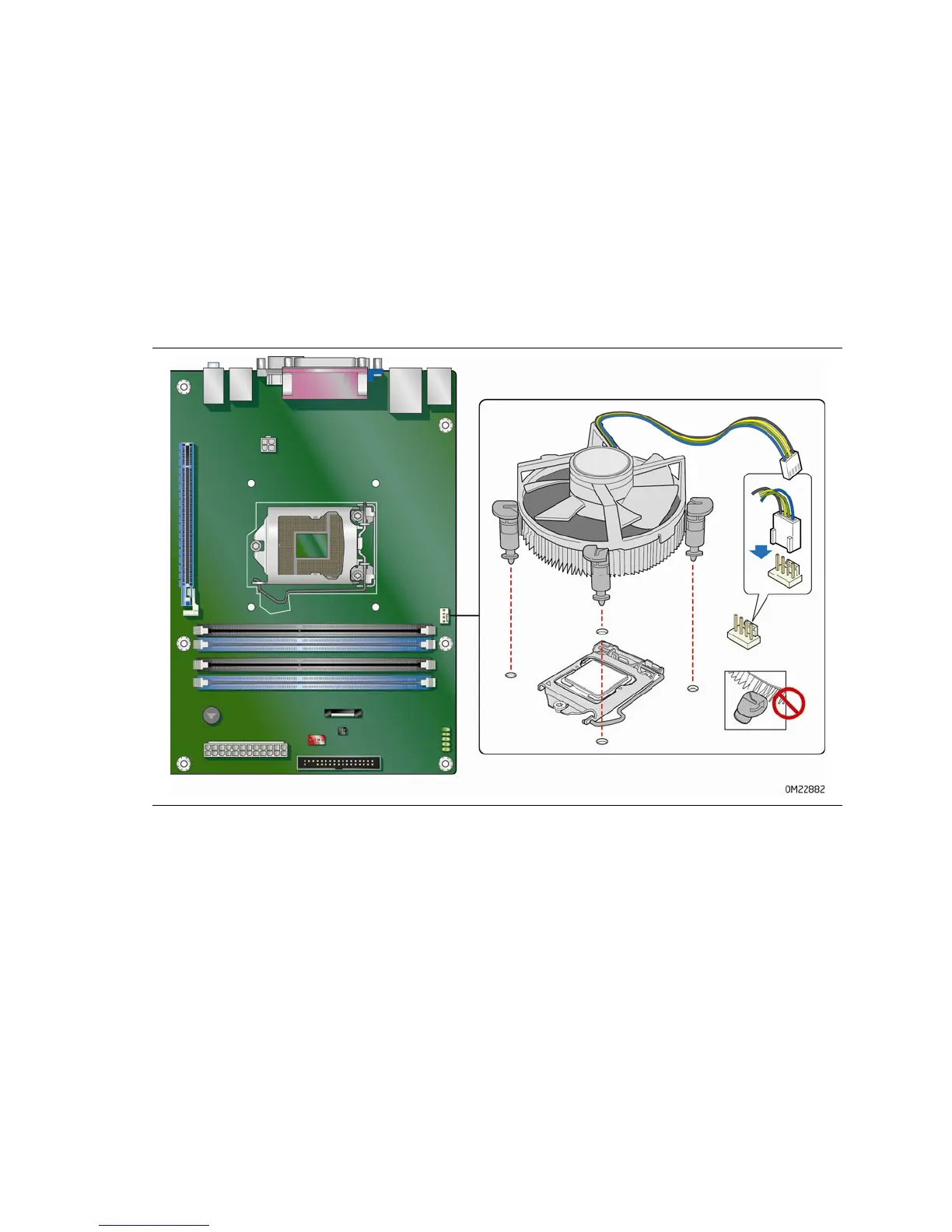

Figure 12. Connecting the Processor Fan Heat Sink Power Cable to the
Processor Fan Header
Removing the Processor
For instructions on how to remove the processor fan heat sink and processor, refer to
the processor installation manual.
