Installing and Replacing Desktop Board Components
57
Connecting Chassis Fan and Power Supply
Cables
Connecting Chassis Fan Cables
Connect chassis fan cables to the chassi
s fan headers on the Desktop Board.

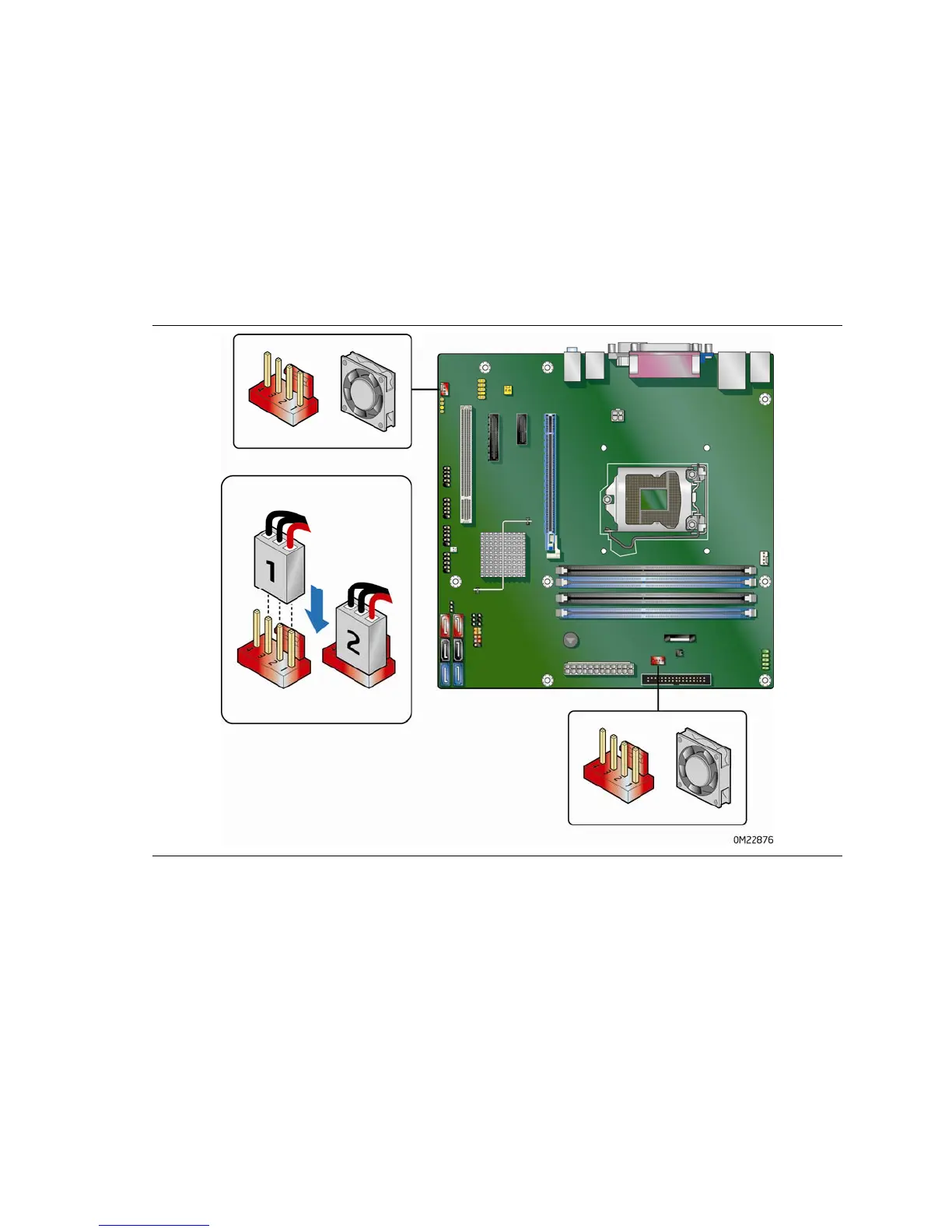

Figure 24 shows the location of
the chassis fa
n headers.
Figure 24. Location of t
he Chassis Fan Headers
