Installing and Removing System Memory
Guidelines for Dual Channel Memory Configuration
Desktop board DQ67OW has four 240-pin DDR3 DIMM sockets arranged in two
channels (A and B).
Two or Four DIMMs
Install a matched pair of DIMMs equal in speed and size (see Figure 13) in the blue
socket of channel A (DIMM 1) and channel B (DIMM 2).

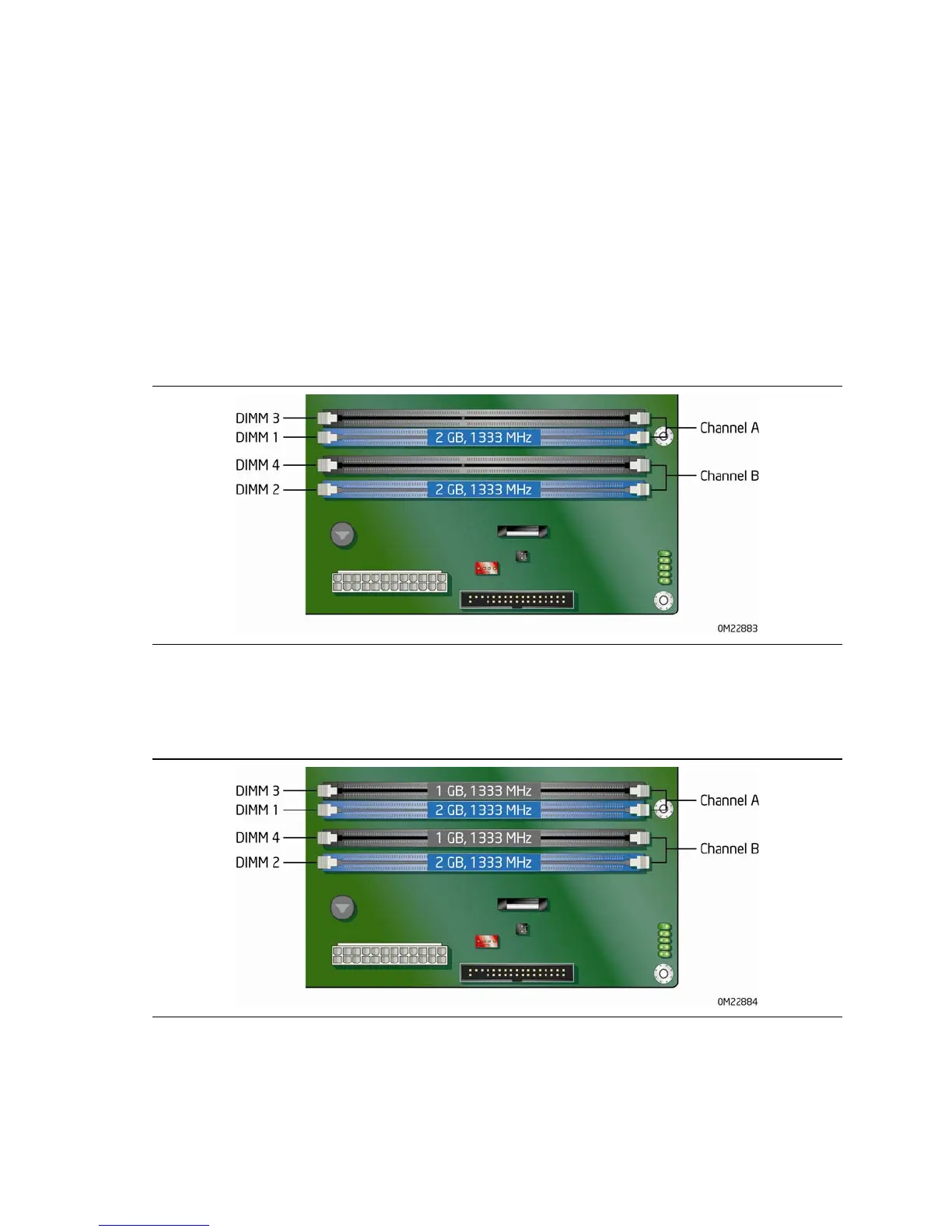

Figure 13. Example Dual Channel Memory Configuration with Two DIMMs
If additional memory is to be used, install another matched pair of DIMMs (see
Figure 14) in the black socket of channel A (DIMM 3) and channel B (DIMM 4).
Figure 14. Example Dual Channel Memory Configuration with Four DIMMs

Intel DQ67OW Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q67
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Max Memory	32 GB
PCI Express x16	1
PCI Express x1	2
SATA 6Gb/s	2
SATA 3Gb/s	4
Ethernet	Gigabit Ethernet
Audio	7.1 channel
USB Ports	14 (4 rear, 6 front, 4 via headers)
