Intel Desktop Board DQ67OW Product Guide
48
Removing a PCI Express x16 Graphics Card
Follow these instructions to remove a PCI Express x16 graphics card from a connector:
1. Observe the precautions in "Before You Begin" on page 33.
2. Di
sconnect the monitor cable from the graphics card back panel connector.
3. Remove the screw (Figure 19, A) that secures the card’s metal bracket to the
chassis bac
k panel.
4. Push the card ejector lever down using the tip of a pencil or similar tool
(Figure 19, B) in the notch. This will release the card from the connector (C).
5. P
ull the card straight up to remove it.

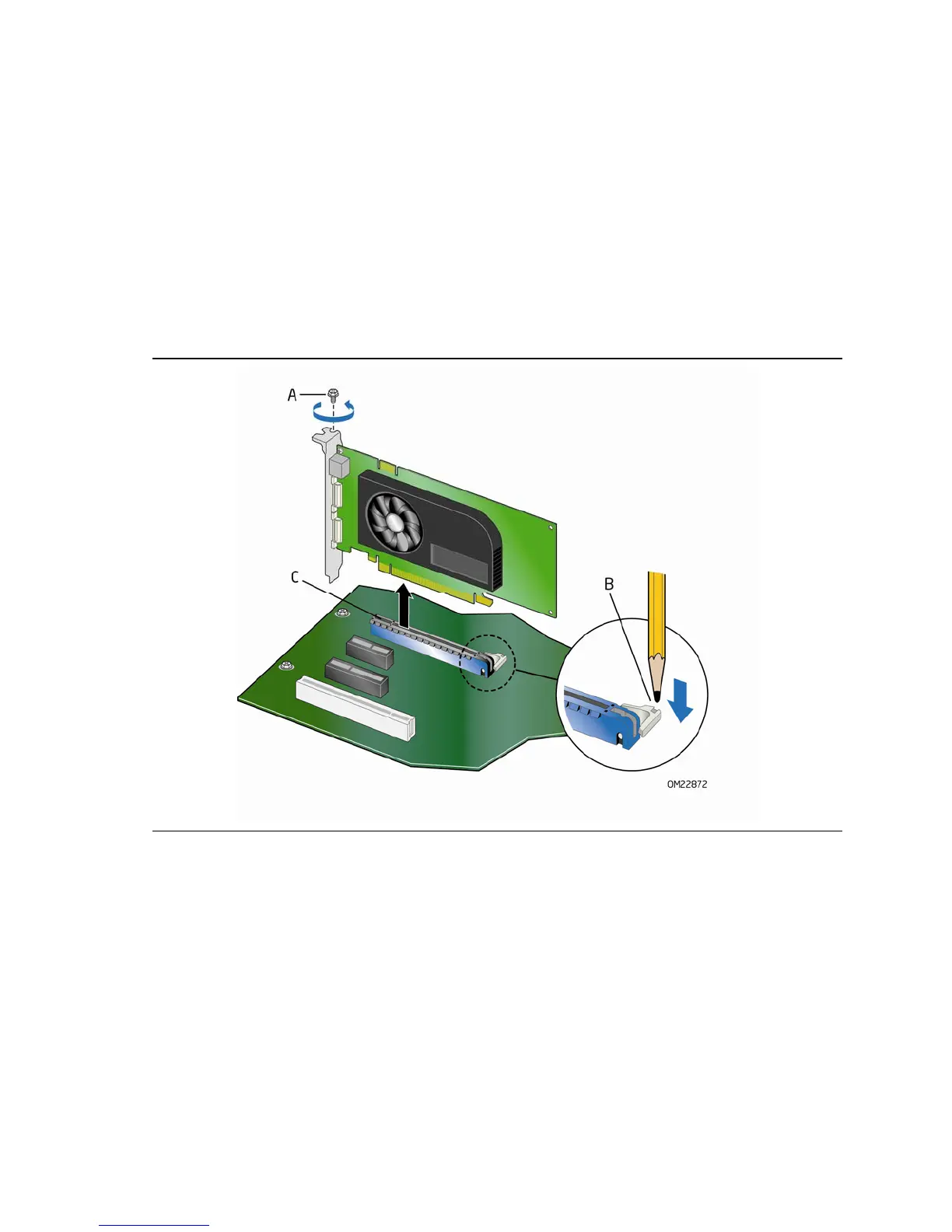

Figure 19. Removing a PCI Express x16 Graphics Card

Intel DQ67OW Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q67
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Max Memory	32 GB
PCI Express x16	1
PCI Express x1	2
SATA 6Gb/s	2
SATA 3Gb/s	4
Ethernet	Gigabit Ethernet
Audio	7.1 channel
USB Ports	14 (4 rear, 6 front, 4 via headers)
