Intel DQ67OW Product Guide

Installing and Replacing Desktop Board Components
49
Connecting Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 33.
2. Attach
one end of the SATA cable to one of the SATA connectors on the board
(Figure 20, A) and attach the other end of the
cable to the SATA drive
(Figure 20, B).

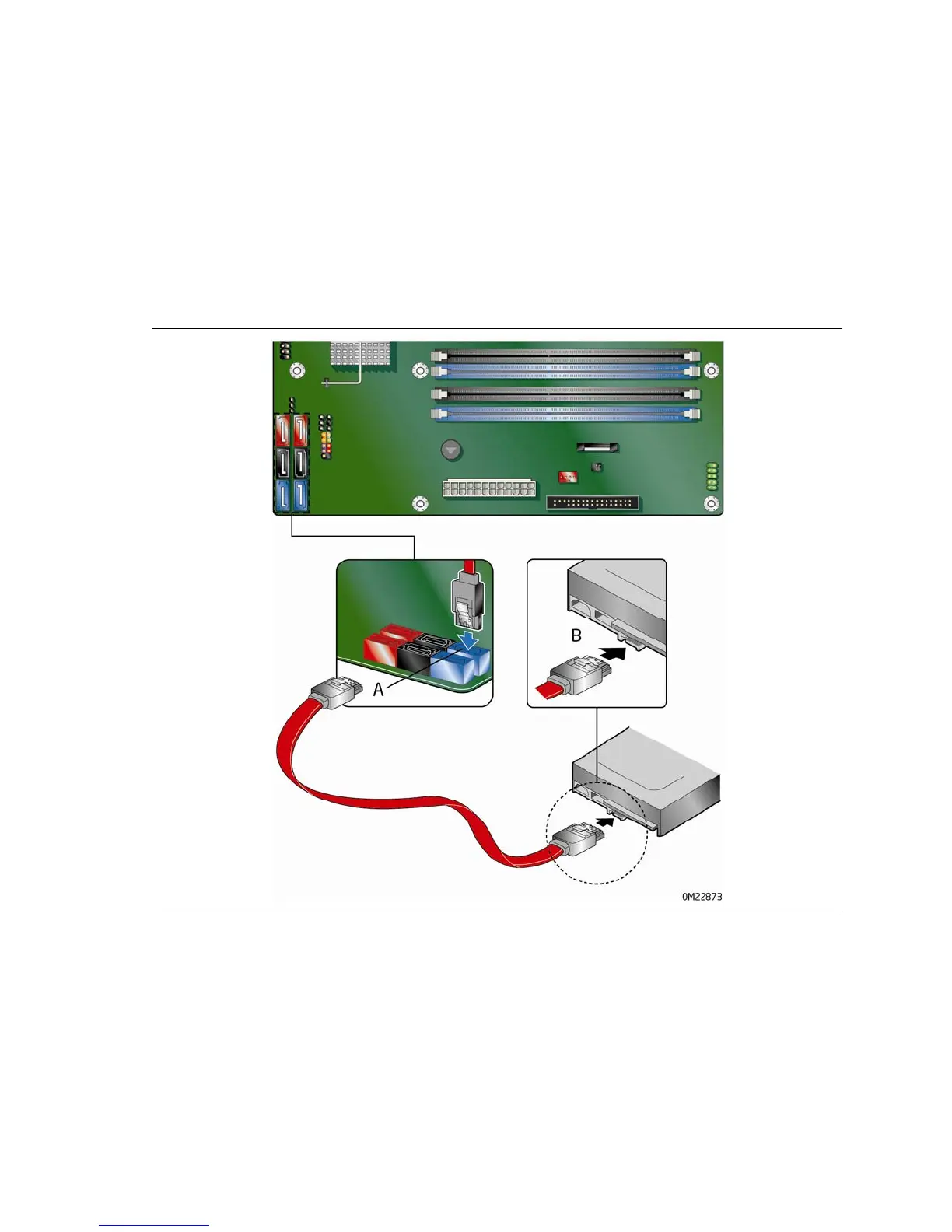

Figure 20. Connecting a Serial ATA Cable

Intel DQ67OW Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q67
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Max Memory	32 GB
PCI Express x16	1
PCI Express x1	2
SATA 6Gb/s	2
SATA 3Gb/s	4
Ethernet	Gigabit Ethernet
Audio	7.1 channel
USB Ports	14 (4 rear, 6 front, 4 via headers)
