Intel Desktop Board DQ67OW Product Guide
50
Connecting Diskette Drive Cables
A diskette drive cable can be used to connect a single diskette drive to the Desktop
Board.
For correct installation of the diskette drive cable:
1. Observe the precautions in "Before You Begin" on page 33.
2. Attach
the cable end labeled P1 to the diskette drive connector on the Intel
Desktop Board (Figure 21, A).
3. Attach the c
able end labeled P2 to the connector on the diskette drive
(Figure 21, B).

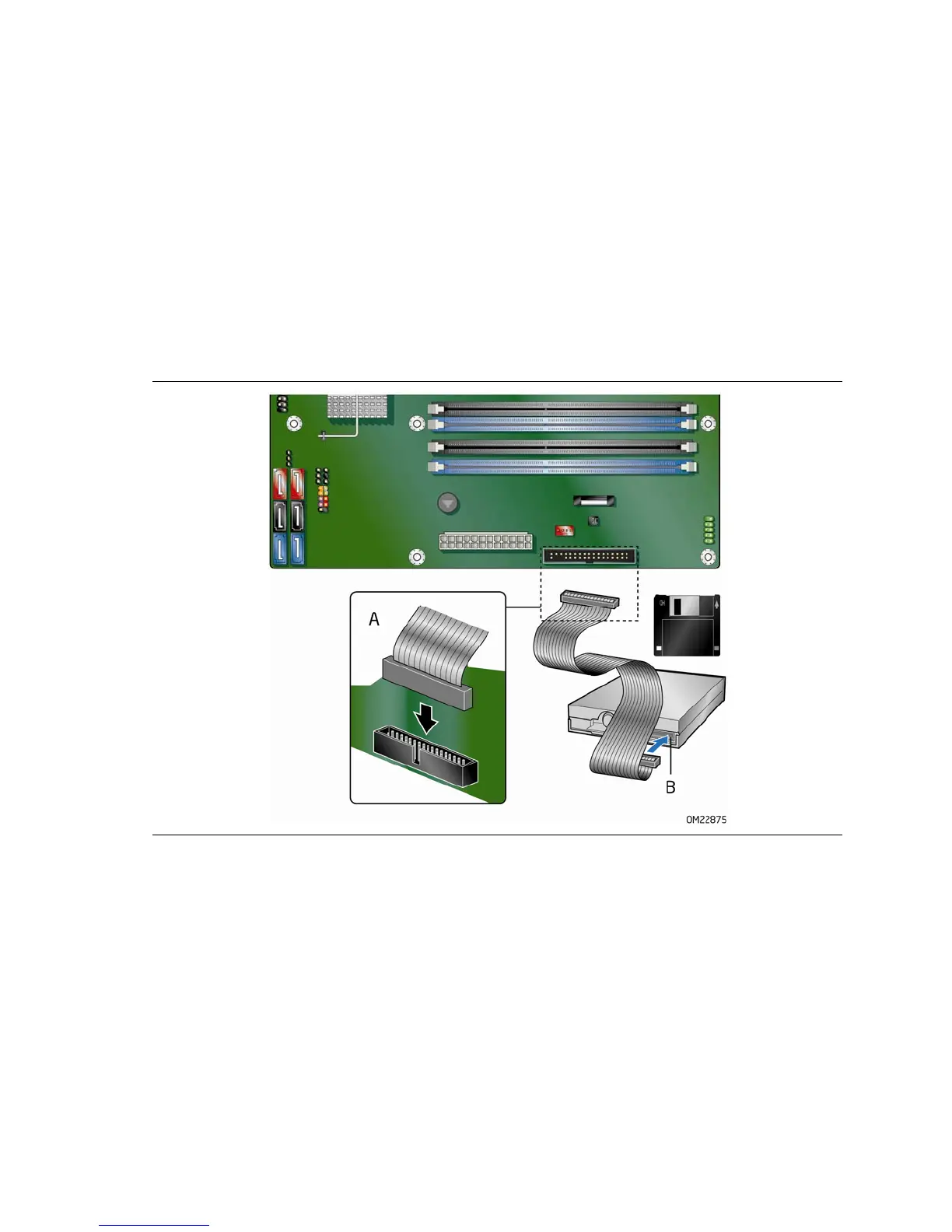

Figure 21. Connecting a Diskette Drive

Intel DQ67OW Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q67
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Max Memory	32 GB
PCI Express x16	1
PCI Express x1	2
SATA 6Gb/s	2
SATA 3Gb/s	4
Ethernet	Gigabit Ethernet
Audio	7.1 channel
USB Ports	14 (4 rear, 6 front, 4 via headers)
