Intel Desktop Board DQ67OW Product Guide
12
Desktop Board Components

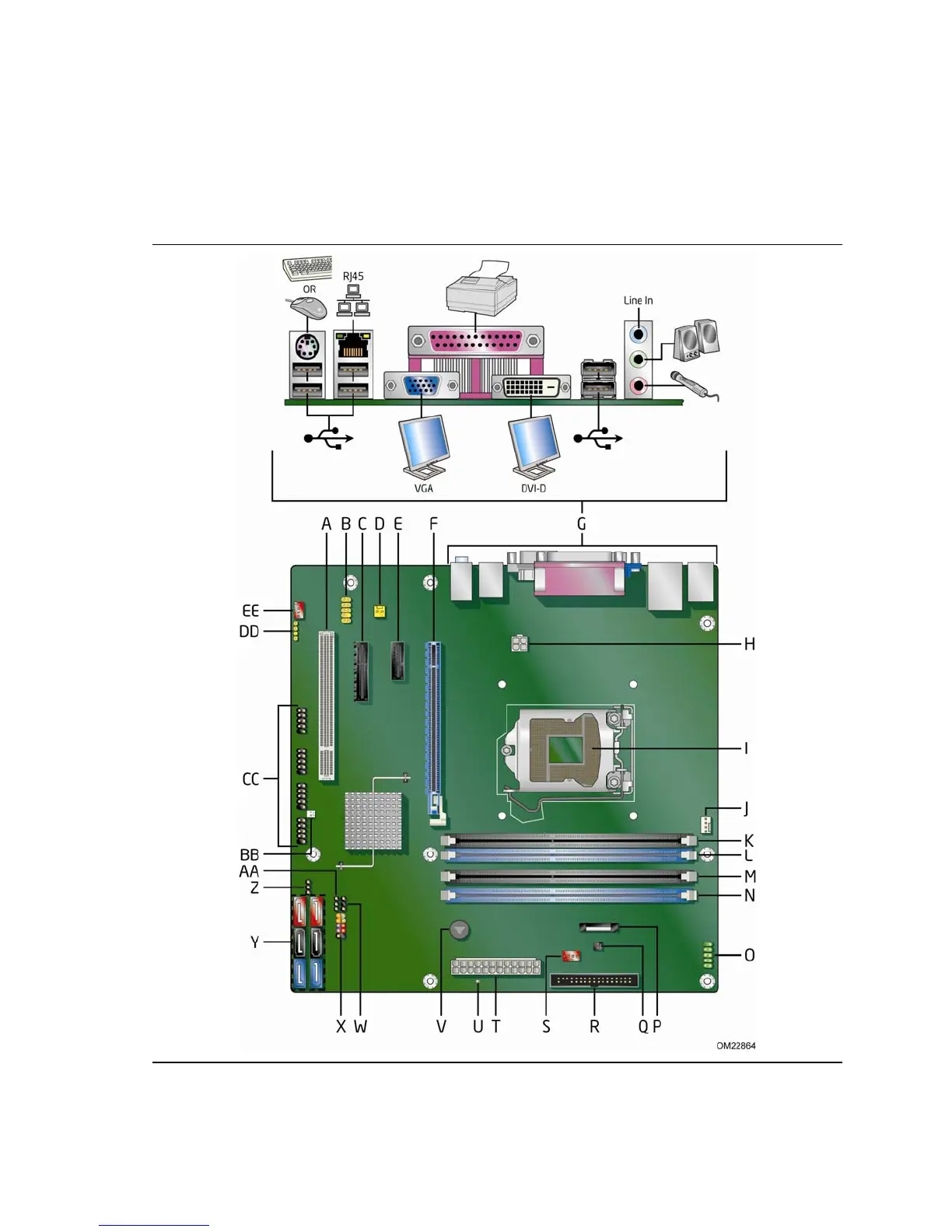

Figure 1 shows the approximate location of the major components on Intel Desktop
Board DQ67OW.
Figure 1. Intel Desktop Board DQ67OW Components
