1.11.3 Intel
®
Management Engine (Intel
®
ME) Software
and Drivers
Intel ME software and drivers are available from Intel’s World Wide Web site.
For information about Refer to
Obtaining Intel ME software and drivers Section 1.2 on page 19
1.11.3.1 Intel
®
Management Engine “M” State LED
The board has a blue-colored Intel ME “M” state LED (see Figure 10). The “M” state is
based on Intel ME status, as follows:
• M0 = Intel ME is in full control in S0
• M3 = Intel ME is in full control in S3-S5 for “out of bound” Intel manageability
• Moff = Intel ME is in sleep state after Intel ME timeout has occurred
Table 11 shows expected behavior of the “M” state LED.
Table 11. Intel ME “M” State LED Behavior
Sx/M3 Sx/Moff S0/M0
LED blinks Off On

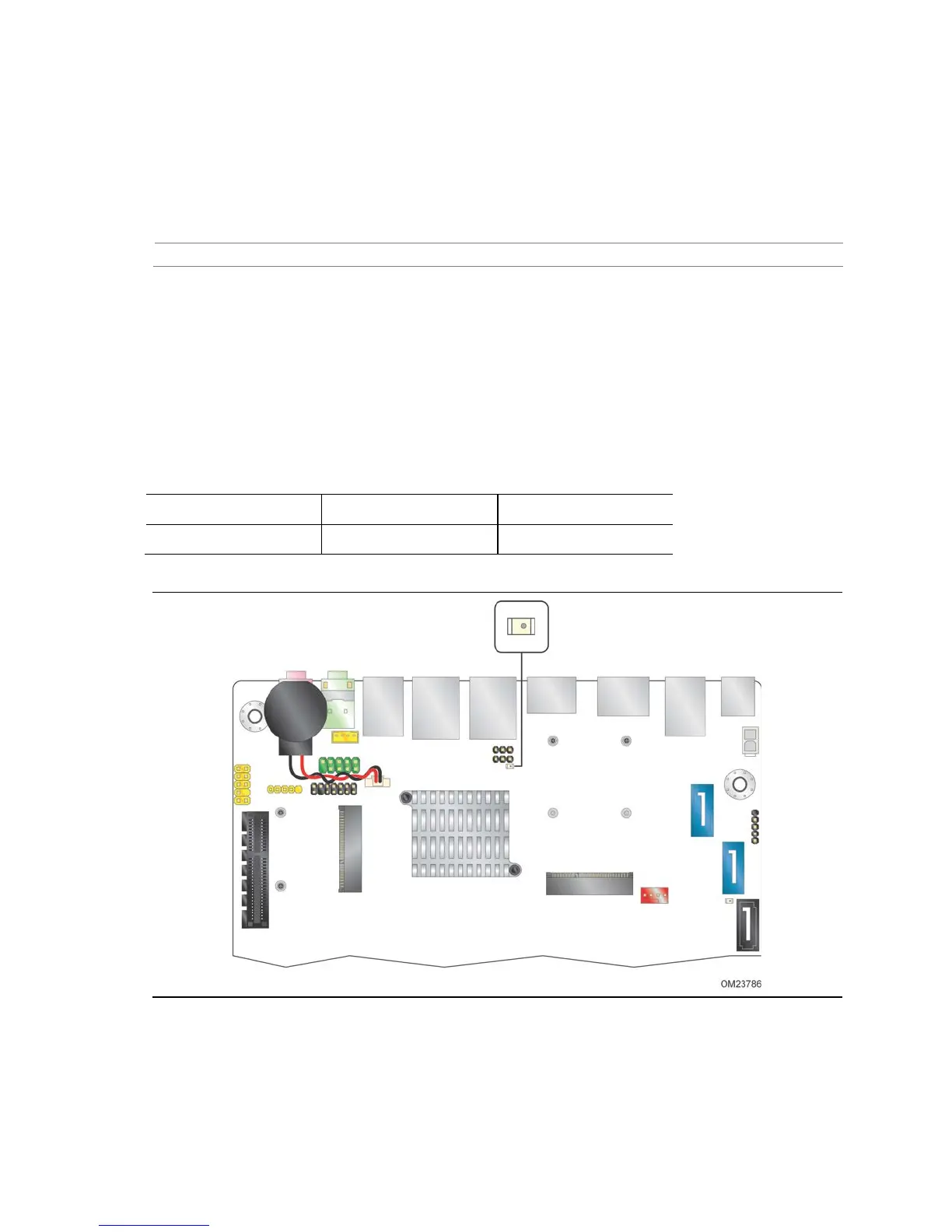

Figure 10. Location of the Intel ME “M” State LED
