1.1.2 Board Layout (Top)
Figure 1 shows the location of the major components on the top-side of the Intel
Desktop Board DQ77KB.

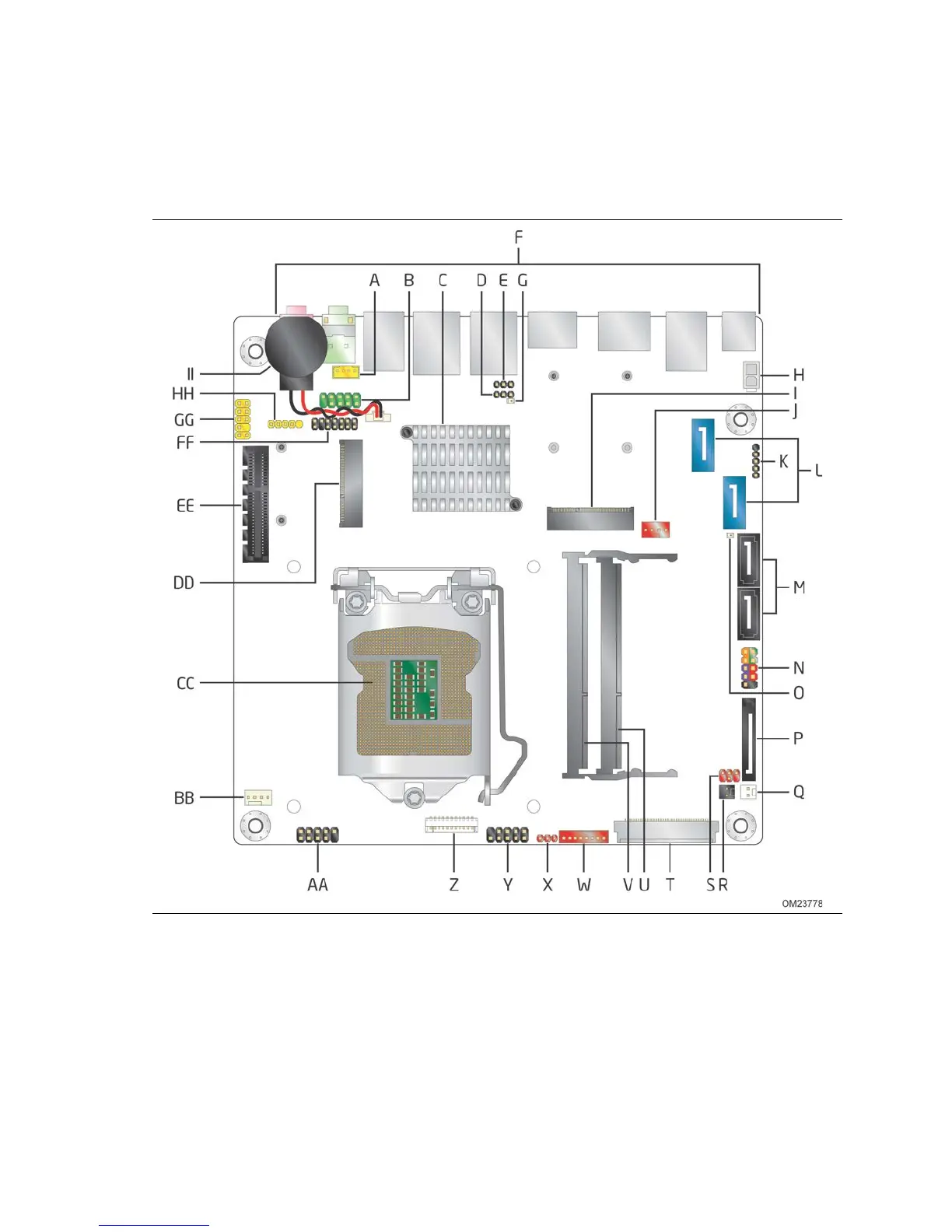

Figure 1. Major Board Components (Top)
