Intel Desktop Board DQ77KB Technical Product Specification
66
2.2.3.5 Front Panel USB 2.0 Headers

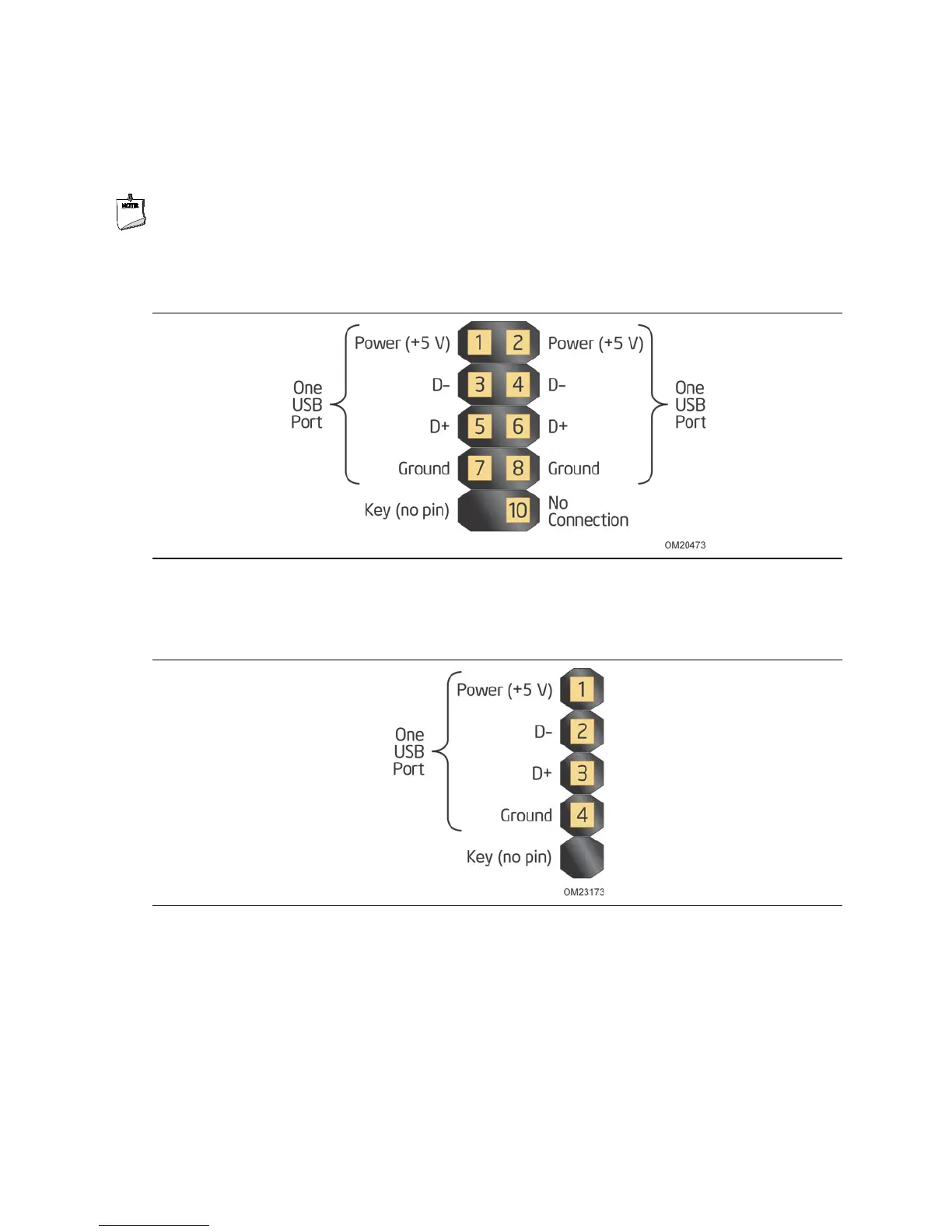

Figure 17 and Figure 18 are connection diagrams for the front panel USB 2.0 headers.
NOTE
• The +5 V DC power on the USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
Figure 17. Connection Diagram for Front Panel
USB 2.0 Dual-Port Headers
Figure 18. Connection Diagram for the Front Panel
USB 2.0 Single-Port Header
