Intel DQ77MK User Manual

Product Description
39
1.11.3 Intel
®
Management Engine (Intel
®
ME) Software
and Drivers
Intel ME software and drivers are available from Intel’s World Wide Web site.
For information about
Refer to
Obtaining Intel ME software and drivers Section 1.2 on page 18
1.11.3.1 Intel
®
Management Engine “M” State LED
The board has a blue-colored Intel ME “M” state LED (see Figure 7). The “M” state is
based on Intel ME status, as follows:
• M0 = Intel ME is in full control in S0
• M3 = Intel ME is in full control in S3-S5 for “out of bound” Intel manageability
• Moff = Intel ME is in sleep state after Intel ME timeout has occurred
Table 9 shows expected behavior of the “M” state LED.
Table 9. Intel ME “M” State LED Behavior
Sx/M3 Sx/Moff S0/M0
LED blinks Off On

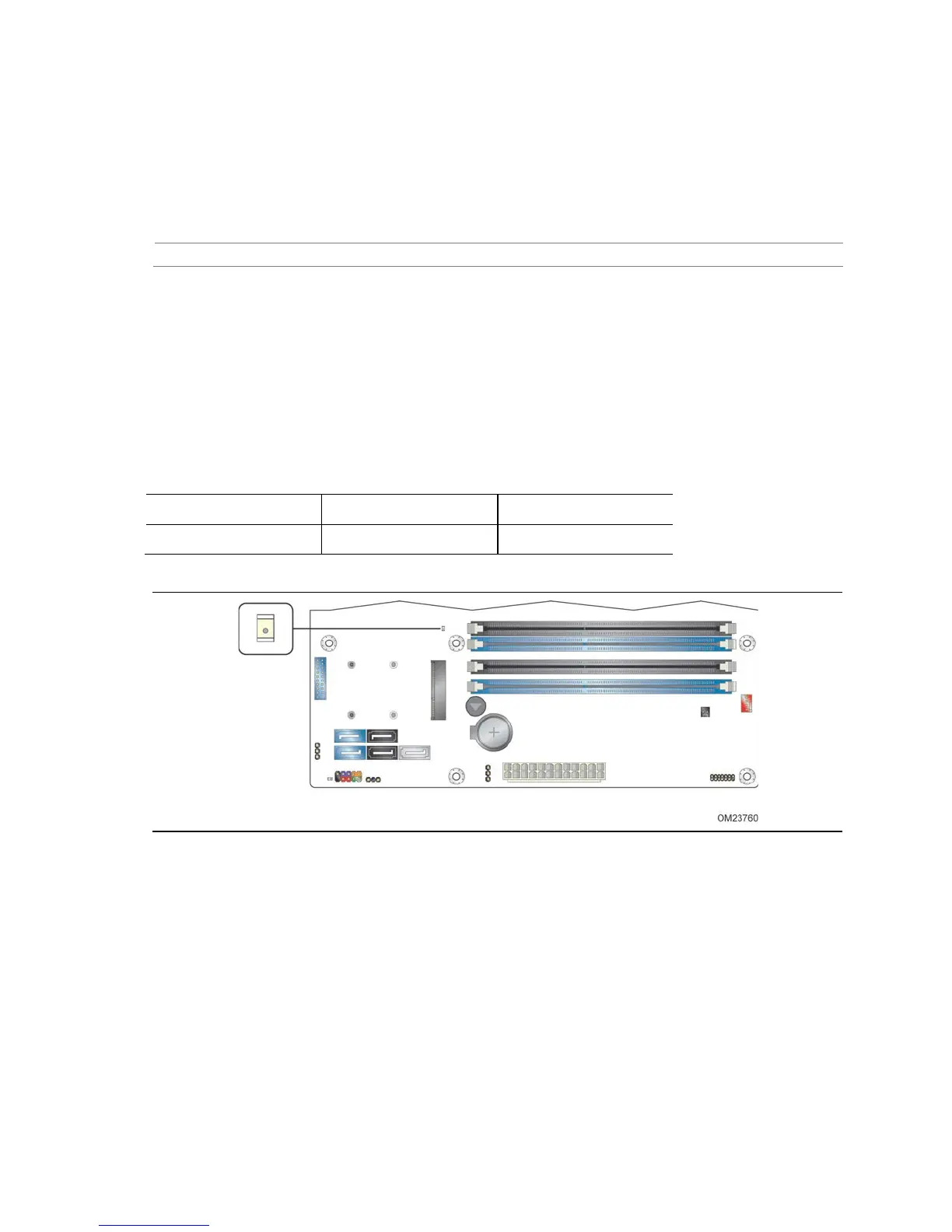

Figure 7. Location of the Intel ME “M” State LED

Intel DQ77MK Specifications

General

Form Factor	Micro ATX
Socket	LGA 1155
Chipset	Intel Q77
Memory Type	DDR3
Memory Slots	4
Max Memory	32 GB
PCI Express x16	1
PCI Express x16 (x4 mode)	1
PCI Express x1	1
PCI	1
SATA 6Gb/s Ports	2
SATA 3Gb/s Ports	4
mSATA	1
USB 3.0 Ports	4
USB 2.0 Ports	8
Ethernet	Intel 82579LM Gigabit Ethernet
RAID Support	RAID 0, 1, 5, 10
Memory Types	DDR3 1333/1600
Video Outputs	DisplayPort
Audio	Realtek ALC892
