2.2.2.6 Front Panel USB 2.0 Connectors

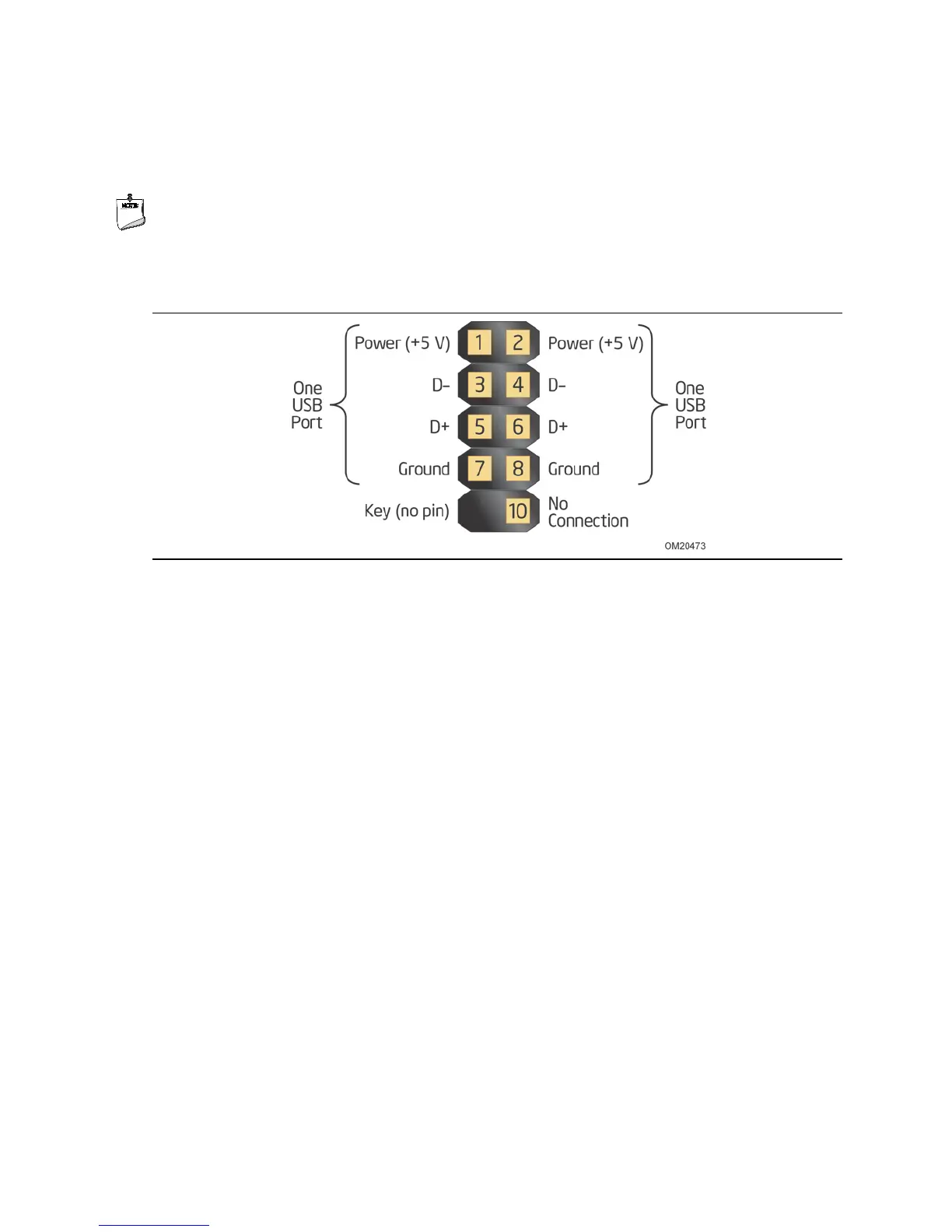

Figure 13 is a connection diagram for the front panel USB 2.0 connectors.
NOTE
• The +5 V DC power on the USB connectors is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
Figure 13. Connection Diagram for Front Panel USB 2.0 Connectors
