3. During the next power on, a message will be displayed on the screen to notify the
user that the power supply voltage rails have deviated outside the current ATX
power supply specification and safe operating levels.
4. A message will be added to the BIOS Event Log for each event that takes place
until the BIOS Event Log is cleared.
1.12.2.12 Enhanced Standby Power LED
The enhanced standby power LED is lit when the board has +5 V standby voltage
applied to it. It also blinks as soon as the BIOS has started executing code, once the
power button has been pressed and before video has been initialized. Figure 8 shows
the location of the LED.
CAUTION
If AC power has been switched off and the standby power indicator is still lit,
disconnect the power cord before installing or removing any devices connected to the
board. Failure to do so could damage the board and any attached devices.

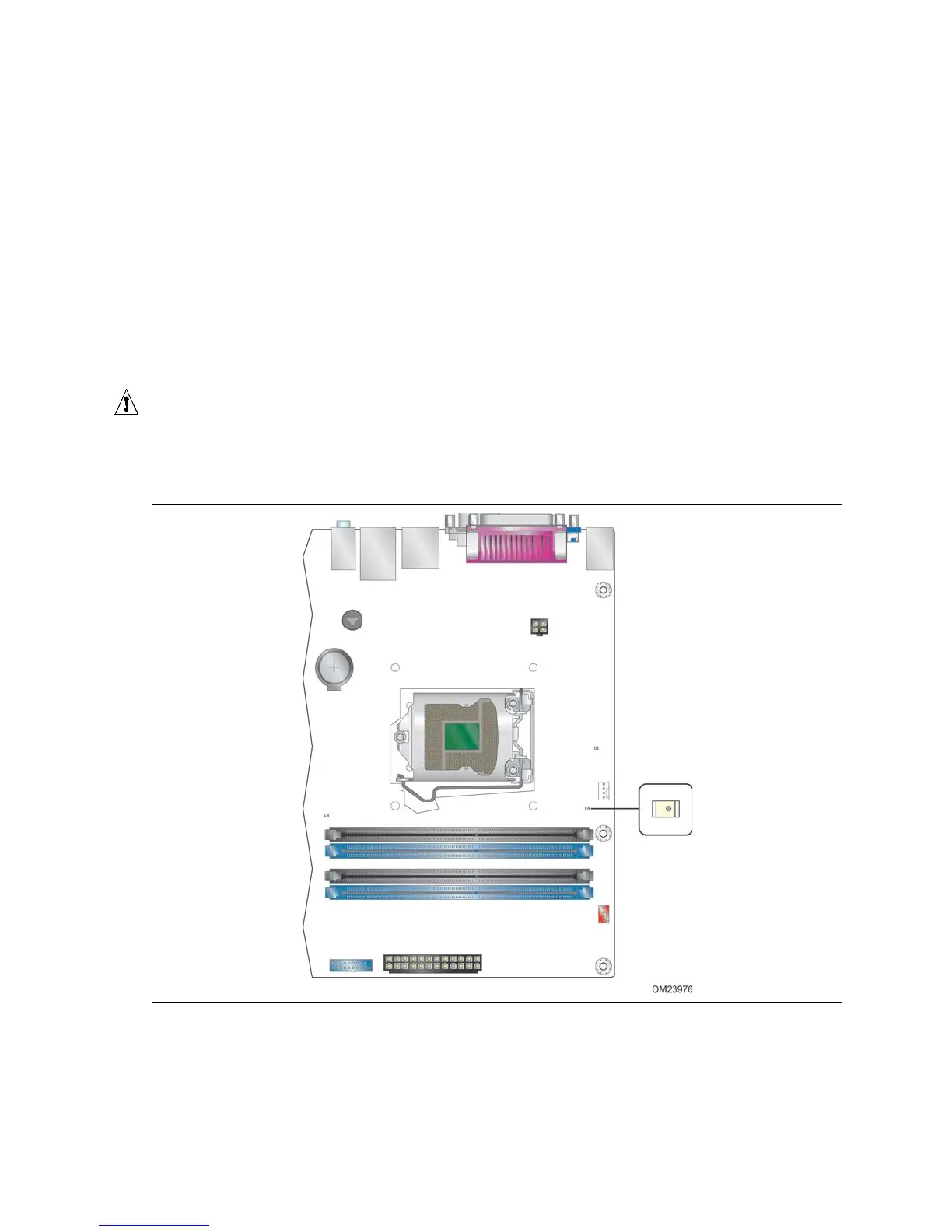

Figure 8. Location of the Enhanced Standby Power LED
