2.2.1 Back Panel Connectors

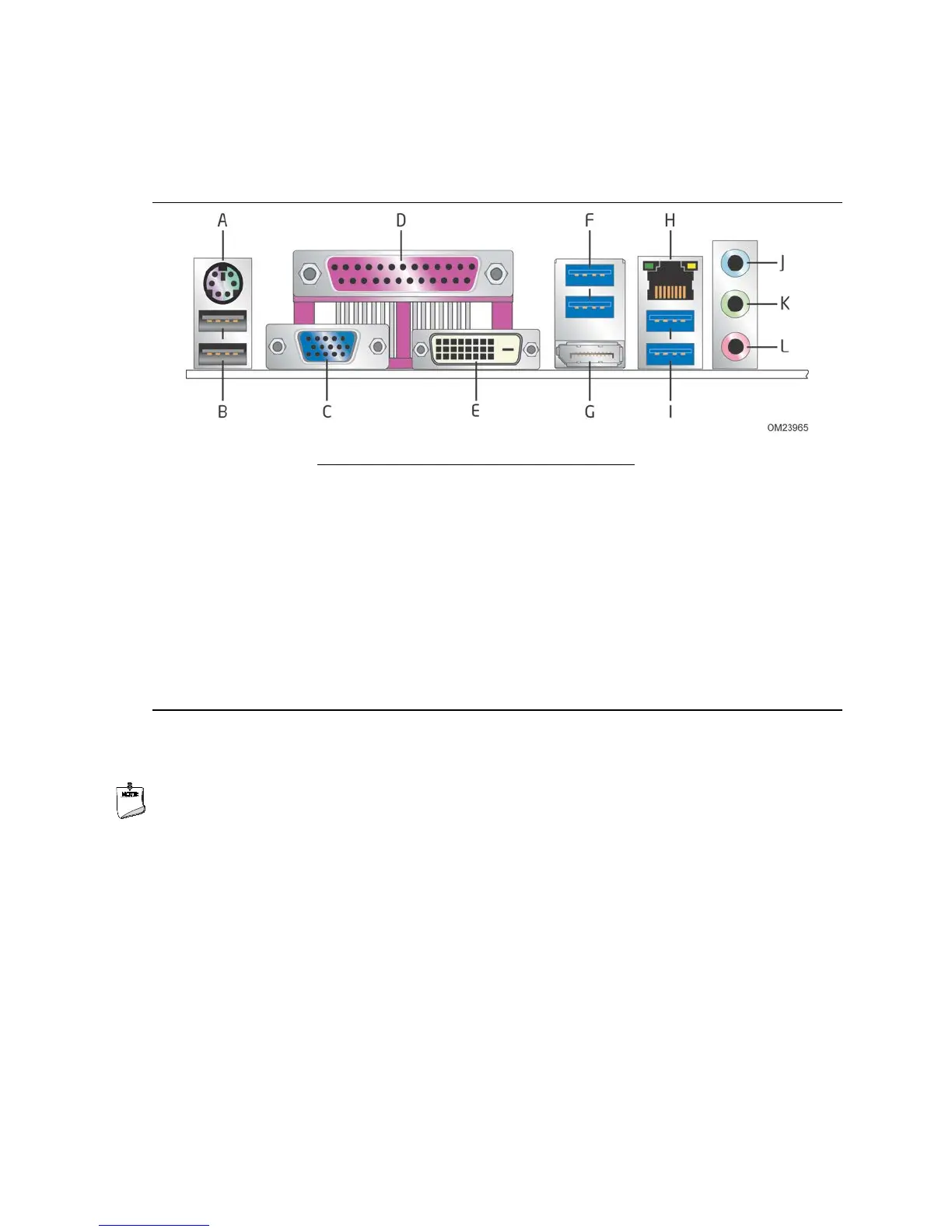

Figure 9 shows the location of the back panel connectors for the board.
Item Description
A PS/2 port
B USB 2.0 ports
C VGA connector
D Parallel port
E DVI-D connector
F USB 3.0 connectors
G DisplayPort connector
H LAN port
I USB 3.0 connectors
J Line-in (surround)
K Line-out (front speakers)
L Mic-in (center/sub)
Figure 9. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
