Intel Desktop Board DQ87PG Technical Product Specification
58
2.2.2.6 Front Panel USB Connectors

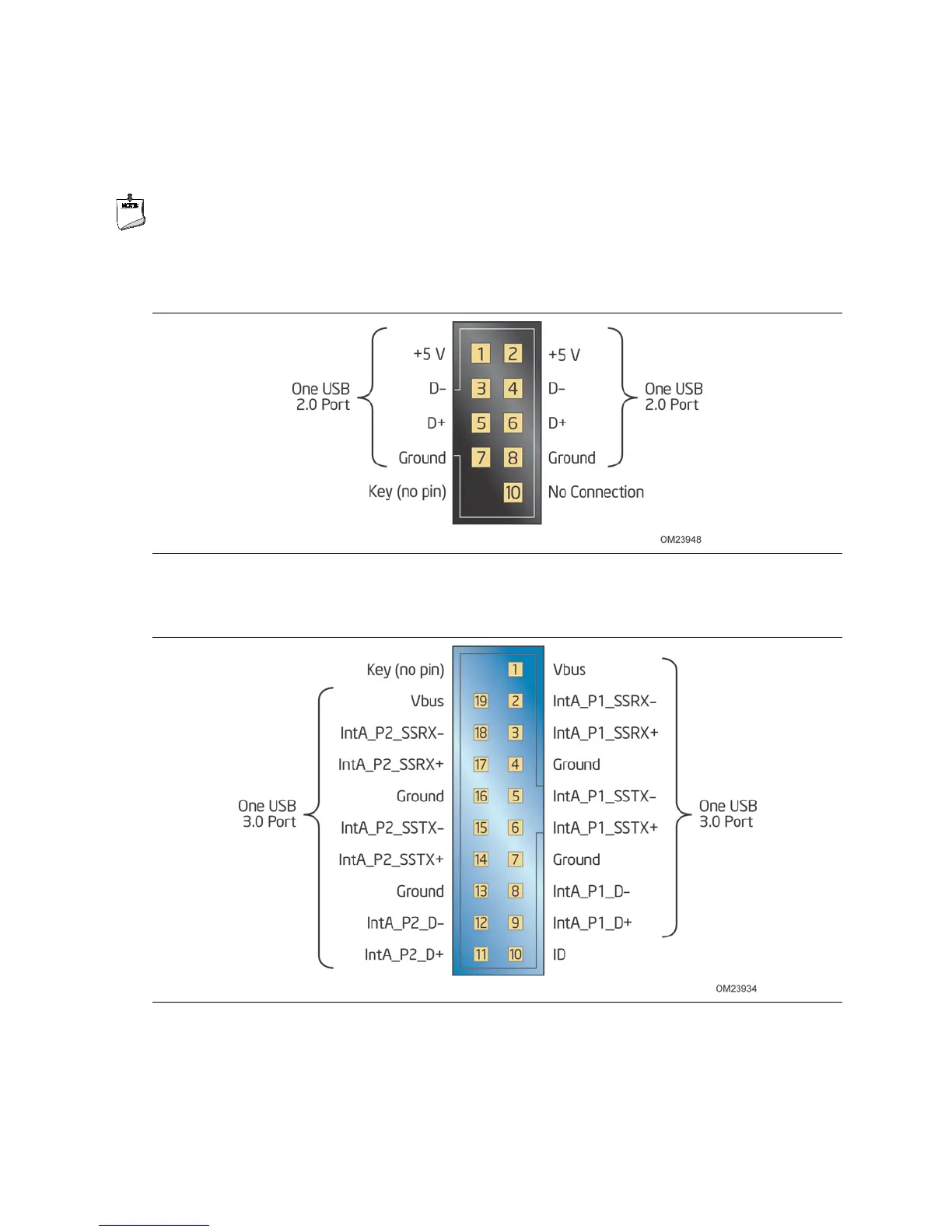

Figure 12 and Figure 13 are connection diagrams for the front panel USB connectors.
NOTE
• The +5 V DC power on the USB connectors is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
Figure 12. Connection Diagram for Front Panel USB 2.0 Connectors
Figure 13. Connection Diagram for the Front Panel
USB 3.0 Connector
