Intel Desktop Board DQ87PG Technical Product Specification
66

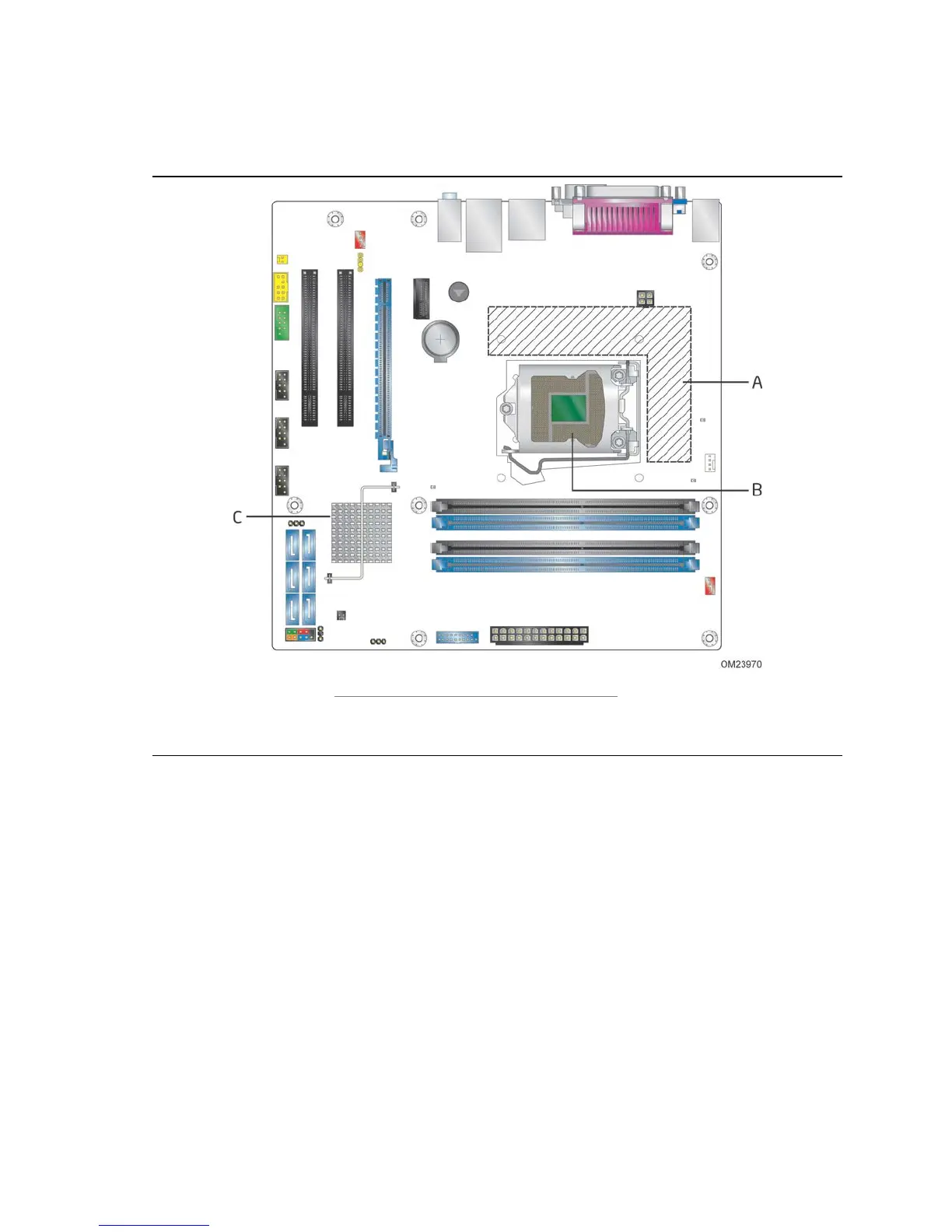

Figure 17 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Processor
C Intel Q87 Express Chipset
Figure 17. Localized High Temperature Zones
