Intel Desktop Board DZ87KLT-75K Technical Product Specification
32
1.9.1.3 RJ-45 LAN Connectors with Integrated LEDs

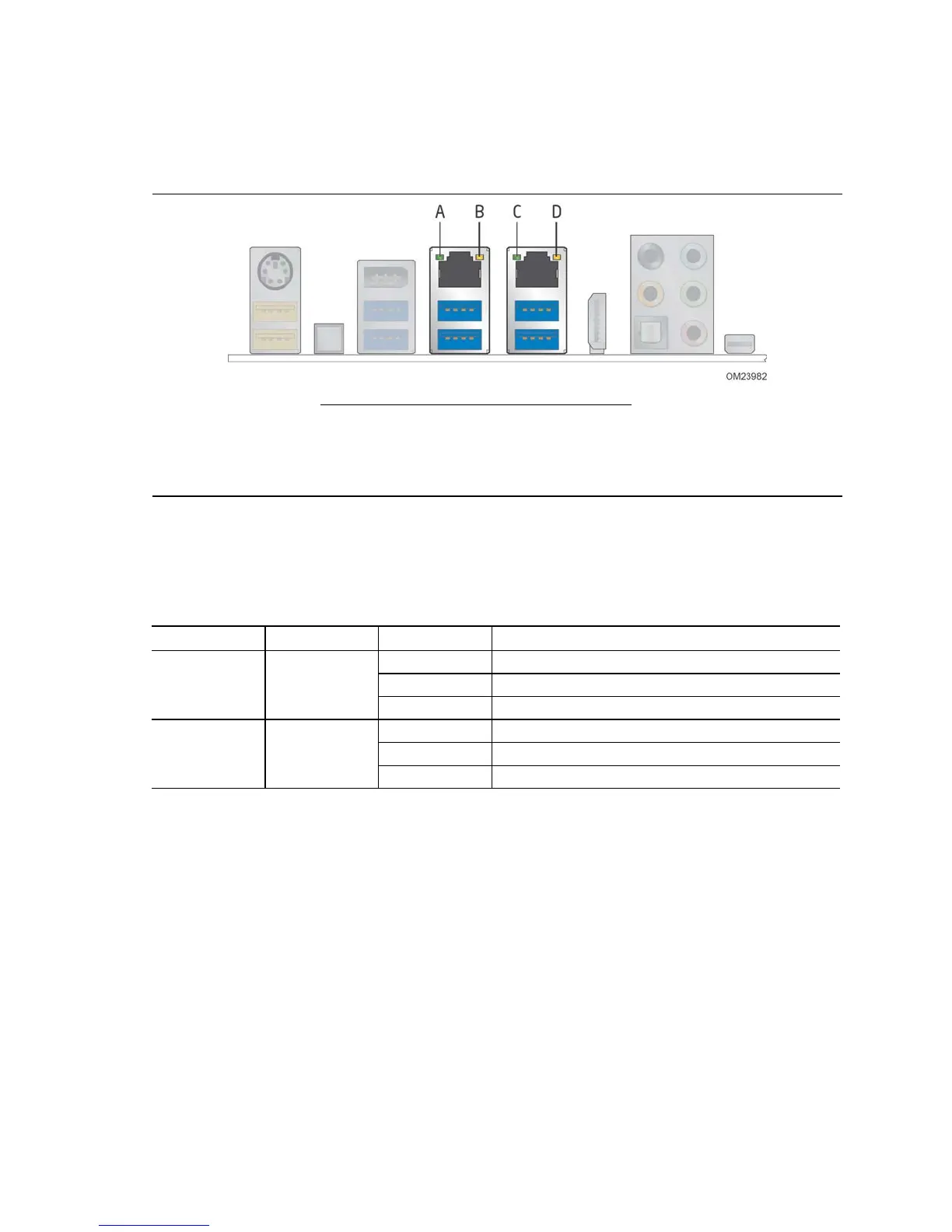

Two LEDs are built into the RJ-45 LAN connectors (shown in Figure 5).
Item Description
A Link LED (green)
B Data Rate LED (green/yellow)
C Link LED (green)
D Data Rate LED (green/yellow)
Figure 5. LAN Connectors LED Locations
Table 7 describes the LED states when the board is powered up and the LAN
subsystems are operating.
Table 7. LAN Connector LED States
LED LED Color LED State Condition
Link Green
Off LAN link is not established.
On LAN link is established.
Blinking LAN activity is occurring.
Data Rate Green/Yellow
Off 10 Mb/s data rate is selected.
Green 100 Mb/s data rate is selected.
Yellow 1000 Mb/s data rate is selected.
