Intel Desktop Board DZ87KLT-75K Technical Product Specification
62
2.2.2.5 Front Panel USB Connectors

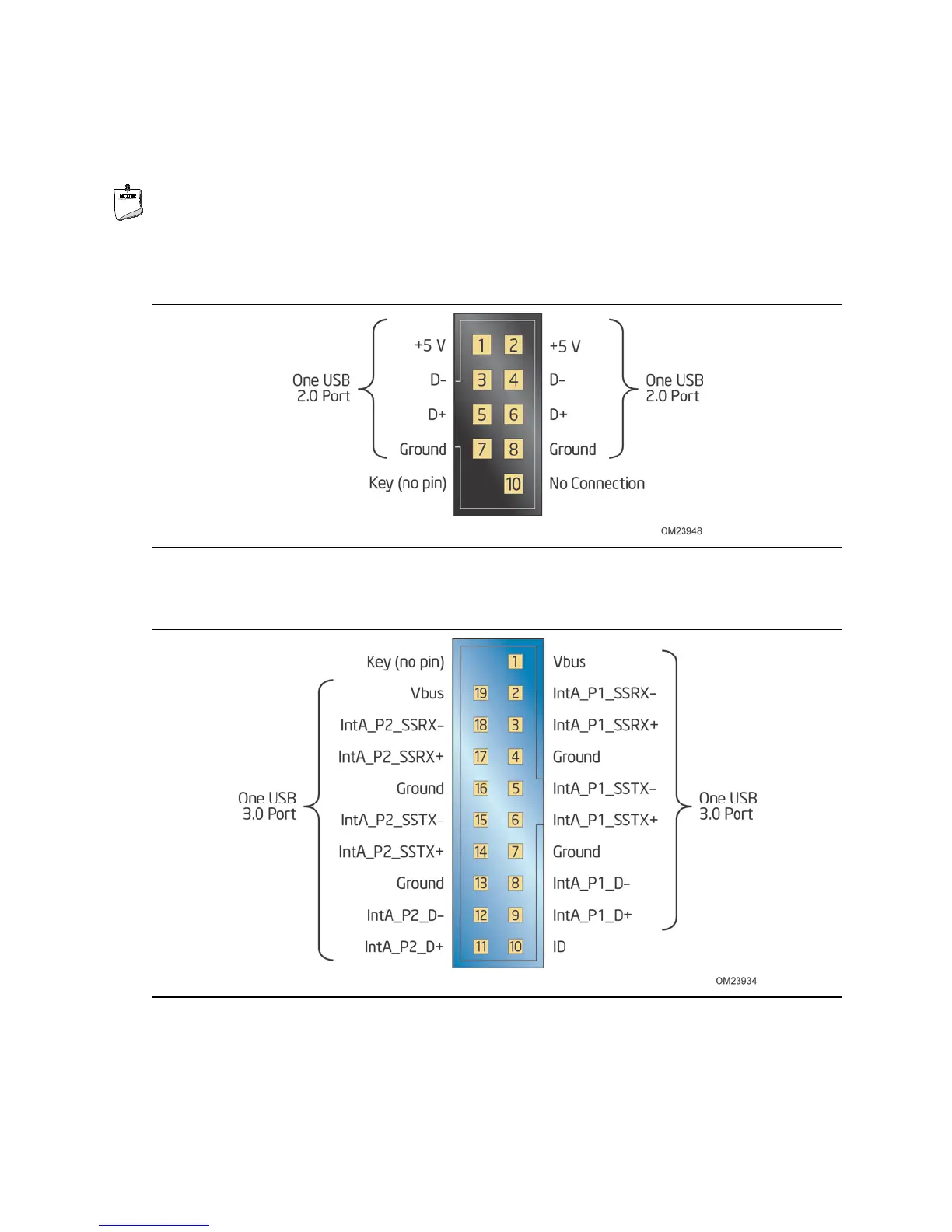

Figure 15 and Figure 16 are connection diagrams for the front panel USB connectors.
NOTE
• The +5 V DC power on the USB connectors is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
Figure 15. Connection Diagram for the Front Panel Dual-Port
USB 2.0 Connectors
Figure 16. Connection Diagram for the Front Panel
USB 3.0 Connector
