Intel DZ87KLT-75K

Product Description
13
1.1.2 Board Layout
Figure 1 shows the location of the major components on Intel Desktop Board
DZ87KLT-75K.

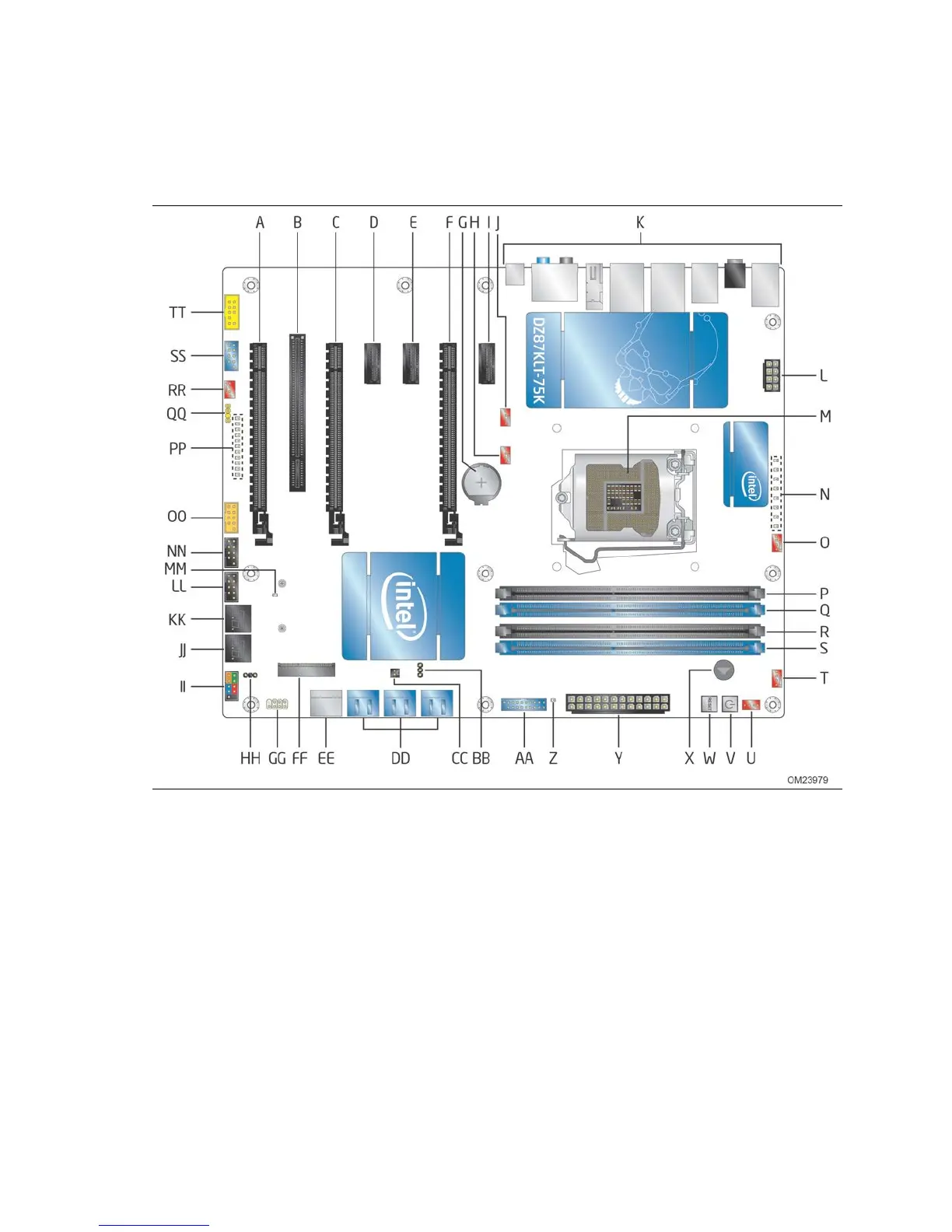

Figure 1. Major Board Components
Table 2 lists the components identified in Figure 1.
