Thermal Metrology

Thermal and Mechanical Design Guidelines 31

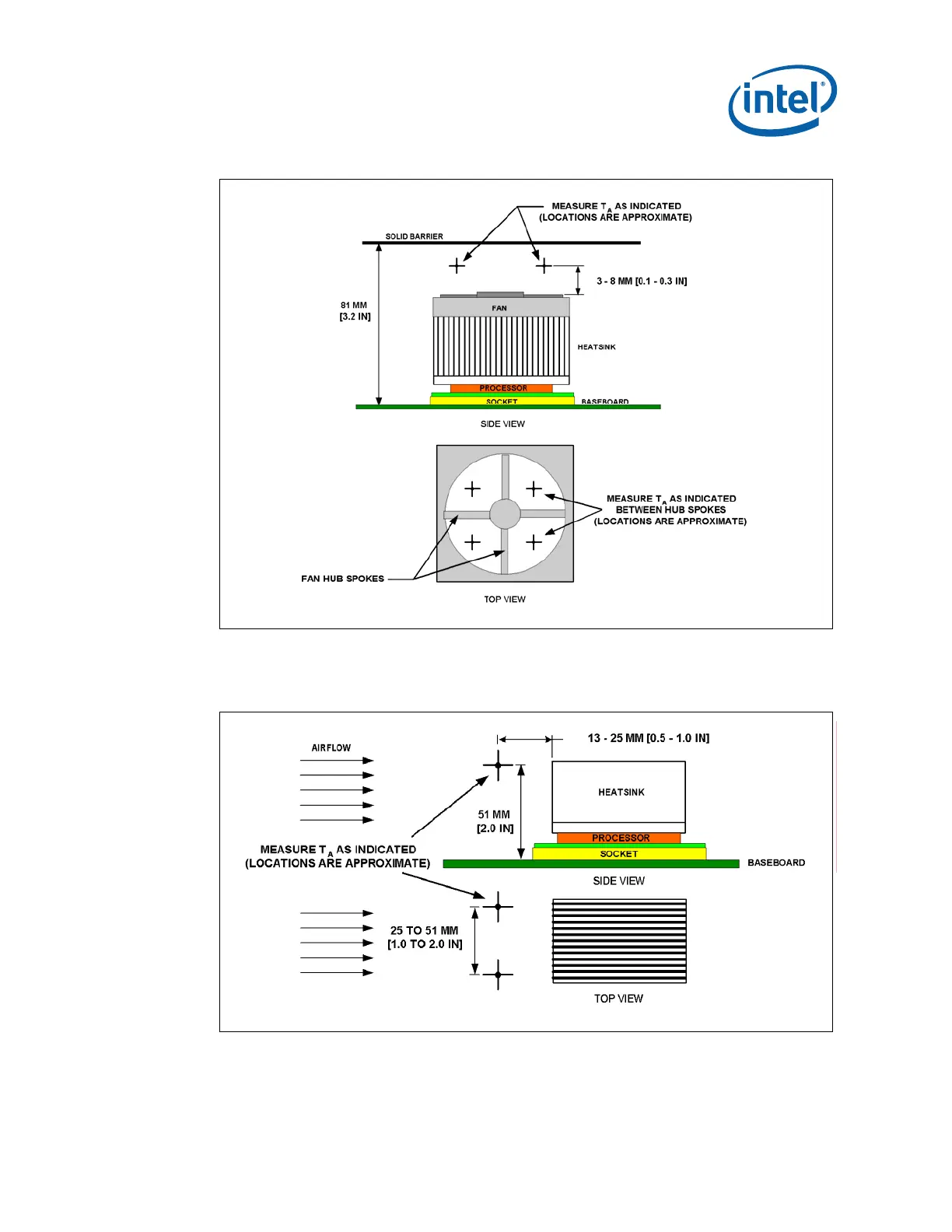

Figure 3-2. Locations for Measuring Local Ambient Temperature, Active ATX Heatsink

Note: Drawing Not to Scale

Figure

3-3. Locations for Measuring Local Ambient Temperature, Passive Heatsink

Note: Drawing Not to Scale
