Case Temperature Reference Metrology
98 Thermal and Mechanical Design Guidelines

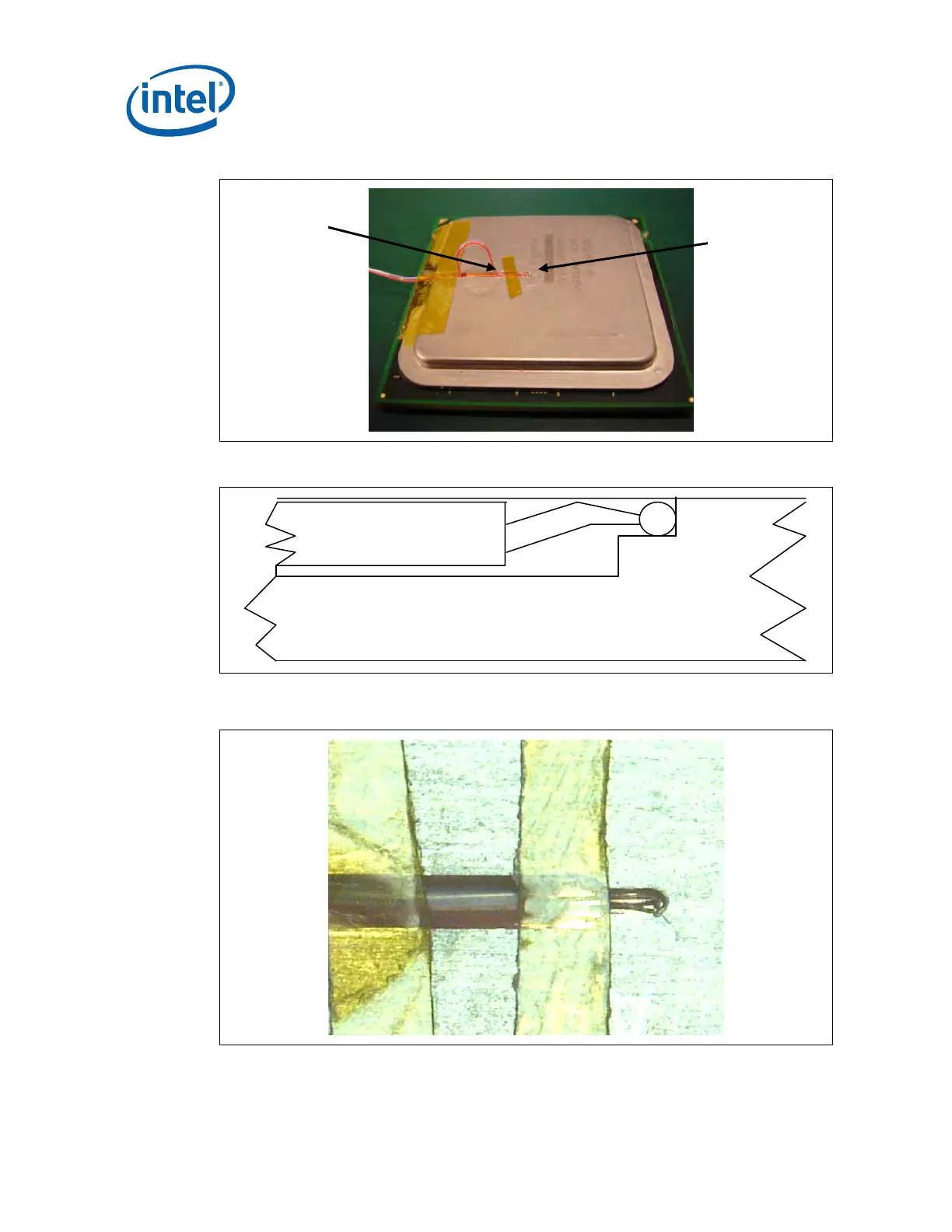

Figure 7-20. Position Bead on the Groove Step
Figure 7-21. Detailed Thermocouple Bead Placement
TC Wire with Insulation
IHS with Groove
TC Bead
Figure 7-22. Third Tape Installation
Wire section
into the
groove to
prepare for
final bead
placement
Kapton*
tape
