Intel E2180 - Pentium Dual-Core 2.00GHz 800MHz 1MB Socket 775 CPU User Manual

Intel® Quiet System Technology (Intel® QST)
72 Thermal and Mechanical Design Guidelines
7.2 Board and System Implementation of Intel
®
QST
To implement the board must be configured as shown in Figure 7-3 and listed below:
• ME system (S0-S1) with Controller Link connected and powered
• DRAM with Channel A DIMM 0 installed and 2MB reserved for Intel
®
QST FW
execution
• SPI Flash with sufficient space for the Intel
®
QST Firmware
• SST-based thermal sensors to provide board thermal data for Intel
®
QST
algorithms
• Intel
®
QST firmware

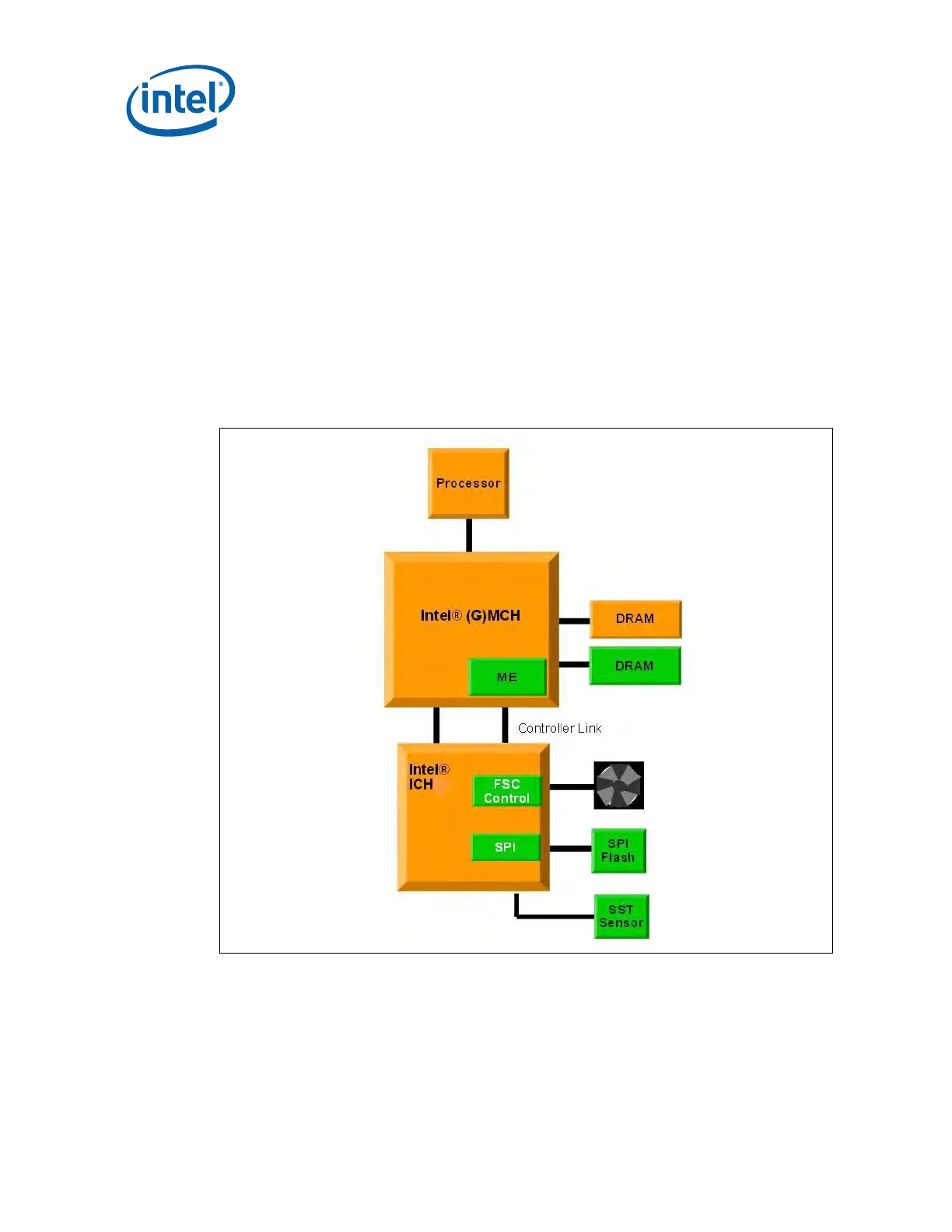

Figure
7-3. Intel
®
QST Platform Requirements
Note: Simple Serial Transport (SST) is a single wire bus that is included in the ICH8 to
provide additional thermal and voltage sensing capability to the Intel
®
Management
Engine (ME)

Intel E2180 - Pentium Dual-Core 2.00GHz 800MHz 1MB Socket 775 CPU Specifications

General

Clock Speed	2.00GHz
FSB Speed	800MHz
L2 Cache	1MB
Socket	LGA 775
Number of Cores	2
TDP	65W
Manufacturing Technology	65nm
Number of Threads	2
Virtualization Technology	No
Integrated Graphics	No
Processor Model	Intel Pentium Dual-Core E2180
