Intel Edison User Manual

High-Level Functional Description
2 High-Level Functional Description

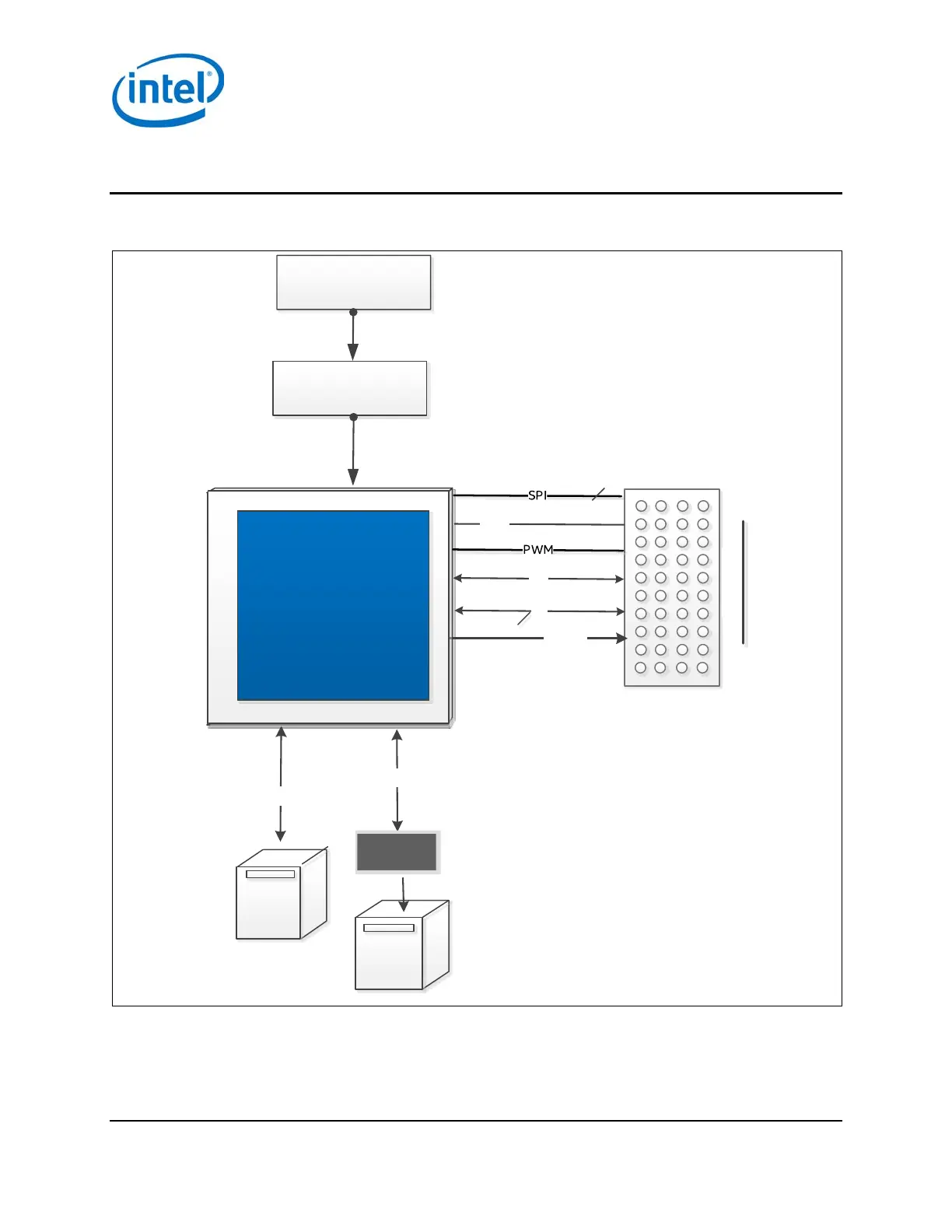

Figure 1 provides the block diagram for the Intel® Edison Breakout Board.
Figure 1 Intel® Edison breakout board block diagram
UART 1
USB 0TG
Cli ent
USB
Mic ro
T ype -AB
7 to 15 V
power supply
U AR T 0
I2C
0.1" header
GPIO
4
Cli ent
USB
Mic ro
T ype -B
U AR T –
USB FTDI
Intel® Edison
SD
4.4 V power supply
and battery
recharger
Intel® Edison Breakout Board
Hardware Guide January 2015
6 Document Number: 331190-006

Intel Edison Specifications

General

RAM	1 GB LPDDR3
Flash Memory	4 GB eMMC
Wi-Fi	802.11a/b/g/n
Bluetooth	Bluetooth 4.0
USB	USB 2.0 OTG
Dimensions	35.5 mm x 25.0 mm x 3.9 mm
Operating System	Yocto Linux
GPIO	40
Power Supply	3.3V - 4.5V
CPU	Dual-core Intel Atom Silvermont, 500 MHz
