Intel Galileo Tutorial Guide

Intel® Galileo Development Kit for IoT - Tutorial Guide Revision 1.0 – 20-Feb-2014
(Page 4 of 32)
1 Introduction
The DevKit is an out-of-the box evaluation and development platform based on the Intel® Galileo
board. This manual describes the technical details and the process of booting the DevKit Live
image and the guide for application developers.
1.1 Component list

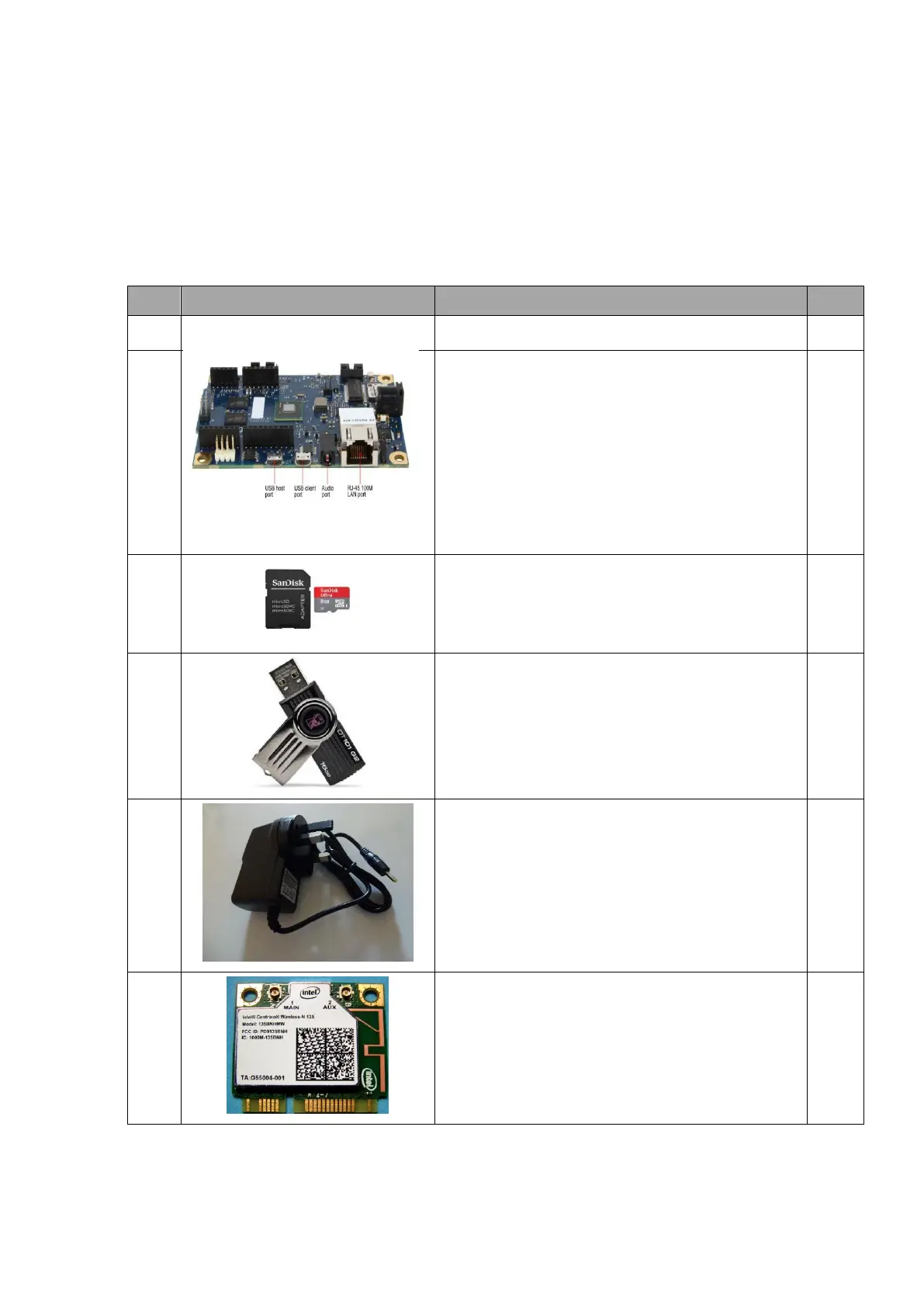

Disclaimer: Please note that pictures here are just for reference, the content and parts may vary.
No.
Item
Description
Qty
1.
Quick Start Guide
Intel® Galileo DevKit Quick Guide - Paper copy
1
2.
Intel® Galileo Development board. 400MHz 32-
bit Intel® Pentium instruction set architecture
(ISA)-compatible processor
A full sized mini-PCI Express* slot, 100Mb
Ethernet port, Micro-SD slot, RS-232 serial
port, USB Host port, USB Client port, and
8MByte NOR flash come standard on the
board.
1
3.
Micro SD card – 8GB
1
4.
USB Flash Disk – 16GB: Pre-loaded with live
image for the Host
1
5
Power Supply – 5VDC, 3.0A
1
6
Wi-Fi card with Extender
1

Intel Galileo Specifications

General

Product family	Intel Galileo
Product series	Intel Galileo board
Processor cache	16 KB
Processor cores	1
Processor model	Intel Quark SoC X1000
64-bit computing	No
Processor socket	Quark 393pin FCPGA
Product codename	-
Processor frequency	400 MHz
Microcontroller model	Intel Quark
Processor lithography	32 nm
Processor manufacturer	Intel
Thermal Design Power (TDP)	12.5 W
Memory bandwidth supported by processor (max)	2.5 GB/s
Memory bus	32 bit
Flash memory	8 MB
Memory channels	Single-channel
Flash memory type	Norwegian
Memory clock speed	800 MHz
Internal memory type	DDR3
Number of DIMM slots	0
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum internal memory	0.256 GB
Maximum memory card size	32 GB
SRAM (Static Random Access Memory)	512 KB
EEPROM (Electrically Erasable Programmable Read-Only Memory)	8 KB
USB version	2.0
Ethernet LAN	Yes
USB ports quantity	3
Ethernet interface type	Fast Ethernet
ARK ID	78919
Status	Discontinued
Launch date	Q4'13
Package size	15 x 15 mm
FSBs supported	NA
Processor included	Intel® Quark™ SoC X1000 (16K Cache, 400 MHz)
Supported memory types	DDR3-SDRAM
Power over Ethernet (PoE) voltage	12 V
Export Control Classification Number (ECCN)	4A994
PCI Support	PCI Express
PCI Express interface data lanes	x1
Form factor	Arduino
Market segment	Desktop
DC input voltage	5 V
Intel Small Business Advantage (SBA) version	0.00
Last change	63903513
Processor ID	79084
Product type	11
Harmonized System (HS) code	8471500150

Weight and Dimensions

Width	- mm
