Intel Galileo Tutorial Guide

Intel® Galileo Development Kit for IoT - Tutorial Guide Revision 1.0 – 20-Feb-2014
(Page 7 of 32)
2 DevKit Setup
Establish the target and host connections as shown it the figure below:

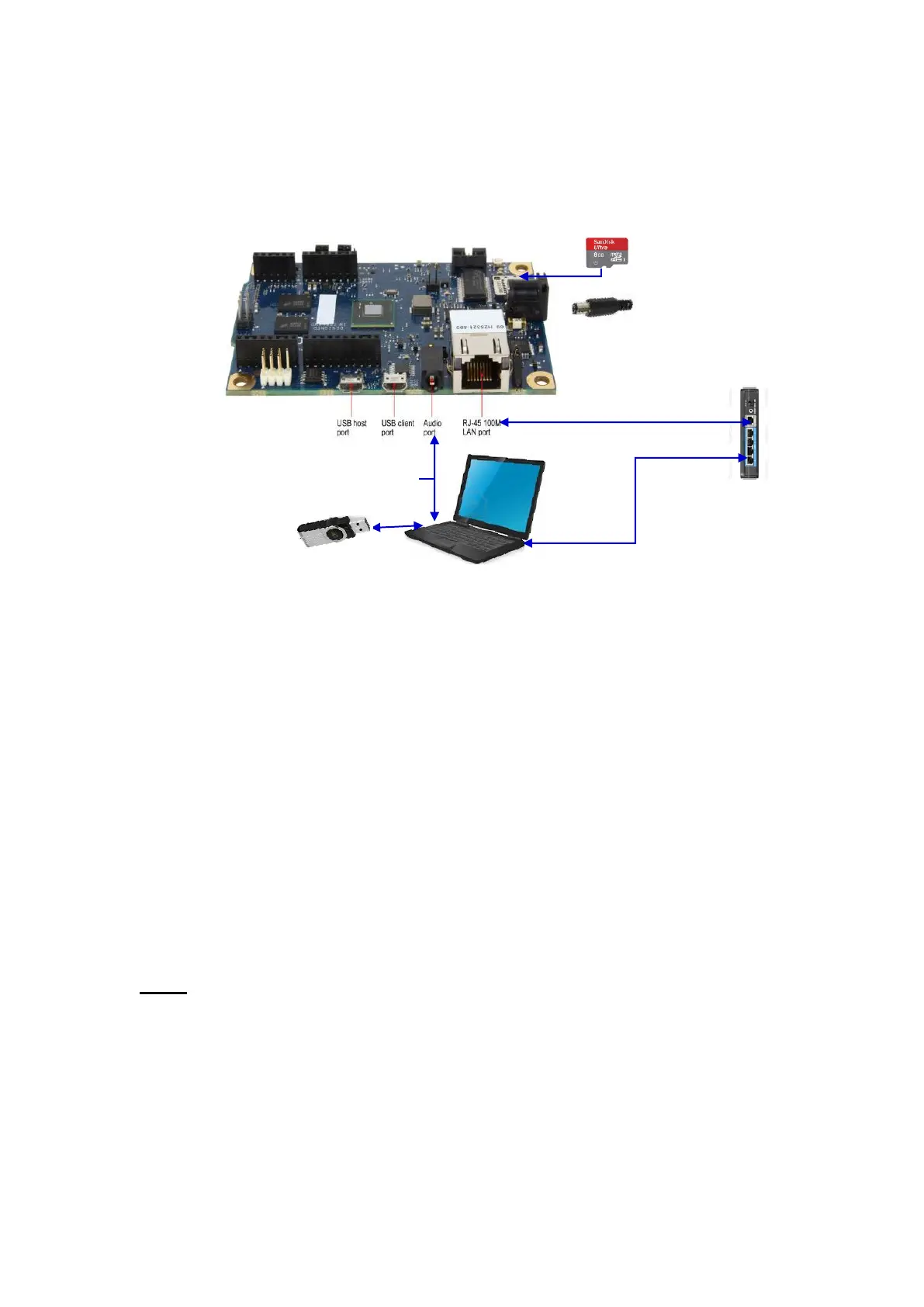

Figure 1: DevKit Development System and Target connections
2.1 Connections:
1. Insert the micro SD card supplied with the DevKit in the SD Card slot of Galileo.
2. Connect Ethernet cable between Galileo board and your internet router.
3. Plug-in serial cable between your Host PC (USB end) and 3.5mm stereo jack male pin in to
Galileo board audio type serial connector close to Ethernet port.
4. Connect power cable to Galileo board and switch ON the power.
2.2 Booting DevKit Live USB on PC:
NOTE: The BIOS configuration are all PC specific, please refer to your PC manufacturer
guide for details on specific BIOS settings.
1. Insert the provided DevKit Live USB key into the USB port of the Host PC.
2. Power on the computer and enter into BIOS menu.
3. Ensure that the legacy BIOS is enabled.
4. Select – USB key as the first boot device in the boot order.
5. Save your settings and exit the BIOS menu, reboot the Host PC.
DevKit Live
USB Image
User’s Host PC / Mac
Power
User’s
Router
micro SD card
Intel® Galileo Target
USB <-> 3.5mm Stereo Serial
115200, 8bit, 1Stopbit, No Parity

Intel Galileo Specifications

General

Product family	Intel Galileo
Product series	Intel Galileo board
Processor cache	16 KB
Processor cores	1
Processor model	Intel Quark SoC X1000
64-bit computing	No
Processor socket	Quark 393pin FCPGA
Product codename	-
Processor frequency	400 MHz
Microcontroller model	Intel Quark
Processor lithography	32 nm
Processor manufacturer	Intel
Thermal Design Power (TDP)	12.5 W
Memory bandwidth supported by processor (max)	2.5 GB/s
Memory bus	32 bit
Flash memory	8 MB
Memory channels	Single-channel
Flash memory type	Norwegian
Memory clock speed	800 MHz
Internal memory type	DDR3
Number of DIMM slots	0
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum internal memory	0.256 GB
Maximum memory card size	32 GB
SRAM (Static Random Access Memory)	512 KB
EEPROM (Electrically Erasable Programmable Read-Only Memory)	8 KB
USB version	2.0
Ethernet LAN	Yes
USB ports quantity	3
Ethernet interface type	Fast Ethernet
ARK ID	78919
Status	Discontinued
Launch date	Q4'13
Package size	15 x 15 mm
FSBs supported	NA
Processor included	Intel® Quark™ SoC X1000 (16K Cache, 400 MHz)
Supported memory types	DDR3-SDRAM
Power over Ethernet (PoE) voltage	12 V
Export Control Classification Number (ECCN)	4A994
PCI Support	PCI Express
PCI Express interface data lanes	x1
Form factor	Arduino
Market segment	Desktop
DC input voltage	5 V
Intel Small Business Advantage (SBA) version	0.00
Last change	63903513
Processor ID	79084
Product type	11
Harmonized System (HS) code	8471500150

Weight and Dimensions

Width	- mm
