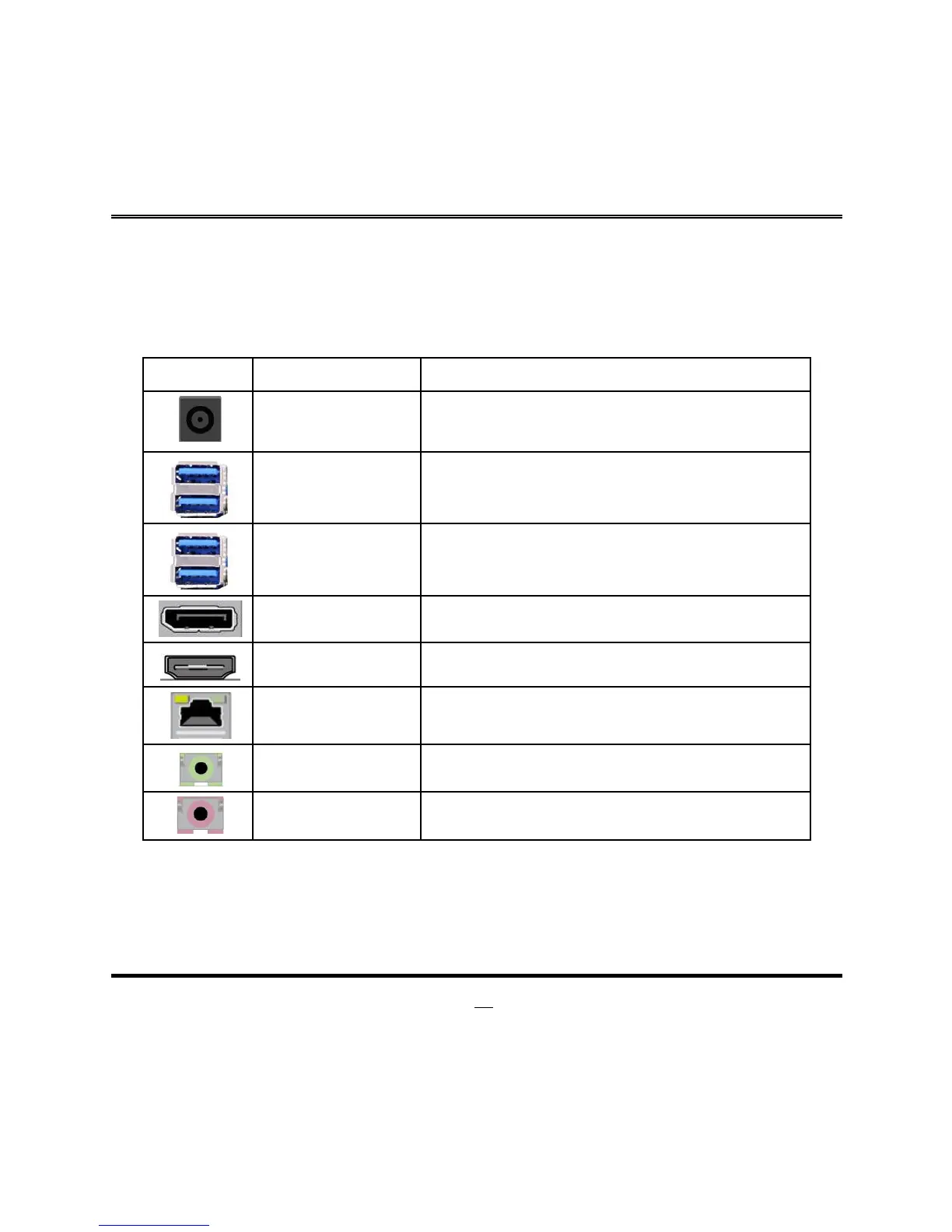

2-2 Connectors, Headers and Wafers
2-2-1 Connectors
(1) Rear Panel Connectors
*Refer to Page-3 Rear IO Diagram.
Icon Name Function
19V DC-in Power
Connector
For user to connect compatible power adapter to
provide power supply for the system.
NF893-H310 Series:
USB 3.1(Gen.1)Port
To connect USB keyboard, mouse or other devices
compatible with USB specification. USB 3.1 (Gen.1)
ports supports up to 5Gbps data transfer rate.
NF893-H370 Series:
USB 3.1(Gen.2)Port
To connect USB keyboard, mouse or other devices
compatible with USB specification. USB 3.1 (Gen.2)
ports supports up to 10Gbps data transfer rate.
Display Port
To the system to corresponding display device with
compatible display port cable.
HDMI Port
To connect display device that support HDMI
specification.
RJ-45 LAN Port
This connector is standard RJ-45 LAN jack for
Network connection.
Line-Out Connector
For user to connect external speaker, earphones,
etc
to transfer system audio output.
MIC Connector
User can connect microphone device to this port.

Intel H310 Specifications

General

Chipset	Intel H310
Socket	LGA 1151
Memory Type	DDR4
Max Memory	32 GB
PCI Express Revision	3.0
SATA Ports	4
Memory Slots	2
PCIe 3.0 x16 Slots	1
PCIe Lanes	6
RAID Support	No
Form Factor	ATX, Micro-ATX, Mini-ITX
USB 3.1 Gen 1 Ports	Up to 4
USB 2.0 Ports	Up to 6
M.2 Slots	1
Integrated Graphics	Yes (CPU Dependent)
LAN Speed	1 Gbps
USB Ports	Up to 10 (depends on implementation)
