16

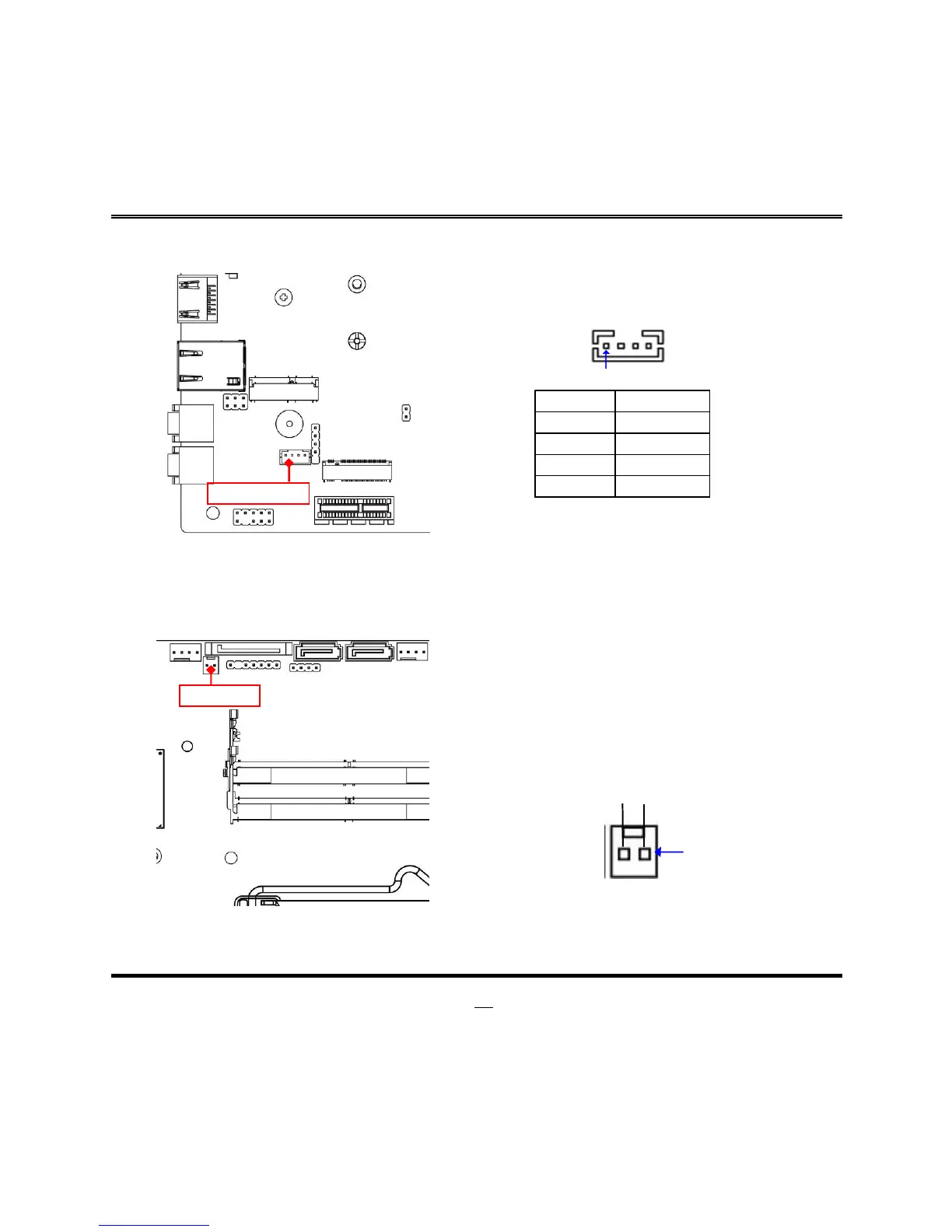

(6) SPEAK_CON (4-pin block): Speaker Connector
Pin1
Pin No.
Definition
1 L-
2 L+
3 R+
4 R-
(7) MON_SW (2-Pin): Monitor Switch Connector
Mon_SW is for LVDS or EDP display switch.
Pin1
GND
Display on/off
SPEAK_CON
MON_SW
