Intel H310 User Manual

17

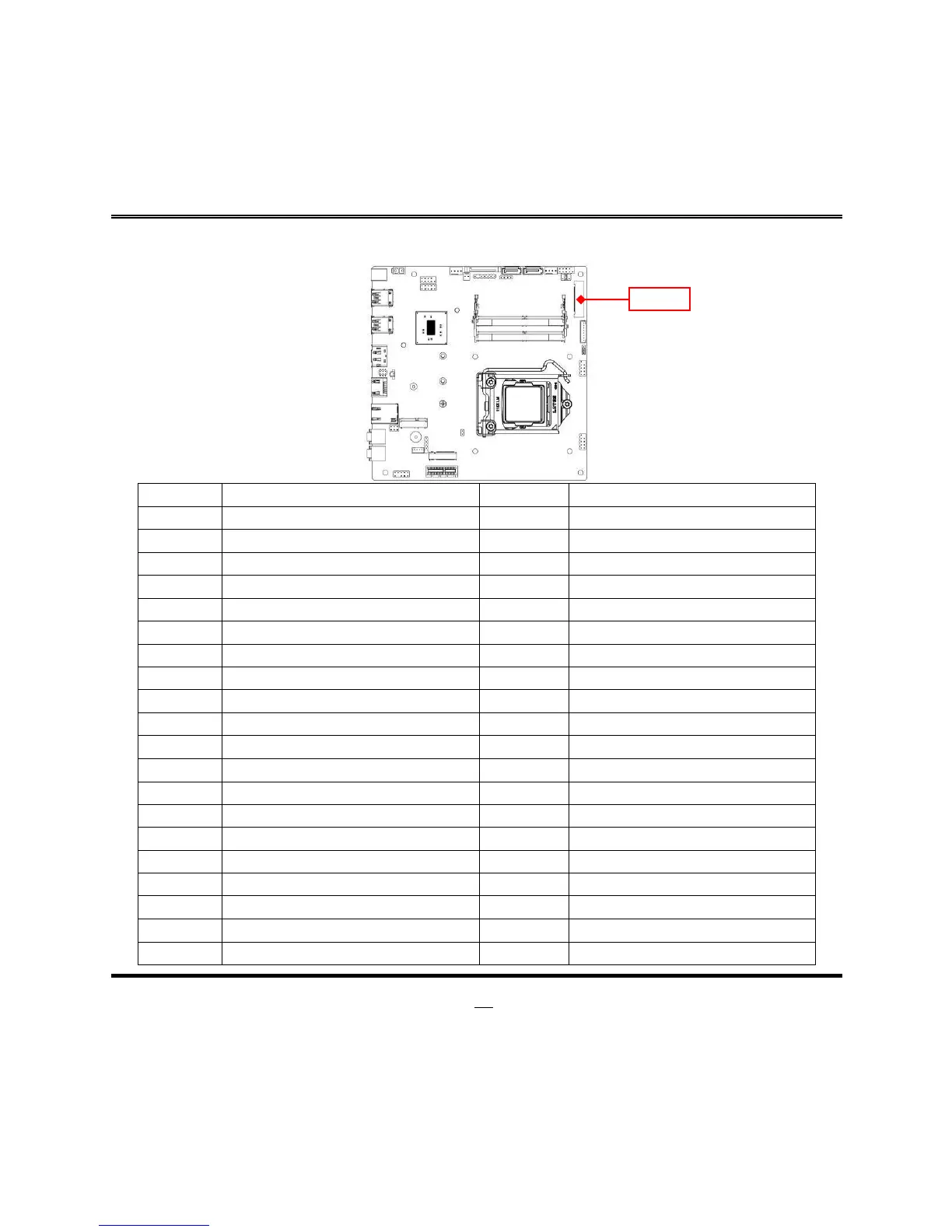

(8) LVDS(40-pin): 48-bit LVDS Connector
Pin
No.
Pin Define
Pin N
o
.
Pin Define
Pin 1 LVDSA_DATAP3 Pin 2 LVDSA_DATAN3
Pin 3 LVDSA_DATAP2 Pin 4 LVDSA_DATAN2
Pin 5 LVDSA_DATAP1 Pin 6 LVDSA_DATAN1
Pin 7 LVDSA_DATAP0 Pin 8 LVDSA_DATAN0
Pin 9 LVDSB_DATAP3 Pin 10 LVDSB _DATAN3
Pin 11 LVDSB_DATAP2 Pin 12 LVDSB _DATAN2
Pin 13 LVDSB_DATAP1 Pin 14 LVDSB _DATAN1
Pin 15 LVDSB_DATAP0 Pin 16 LVDSB _DATAN0
Pin 17 GND Pin 18 LCD_VCC
Pin 19 LCD_VCC Pin 20 LCD_VCC
Pin 21 NC Pin 22 EDID_3V3 Option
Pin 23 GND Pin 24 GND
Pin 25 GND Pin 26 LVDS_CLKAP
Pin 27 LVDS_CLKAN Pin 28 GND
Pin 29 GND Pin 30 GND
Pin 31 LVDS_DDC_CLK Pin 32 LCD_BKLT_EN
Pin 33 LCD_BKLT_PWM Pin 34 LVDS_CLKBP
Pin 35 LVDS_CLKBN Pin 36 LVDS_BKLT_PWR option
Pin 37 LVDS_BKLT_PWR option Pin 38 LVDS_BKLT_PWR option
Pin 39 NC Pin 40 LVDS_DDC_DATA
LVDS
