Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List
13
3. SAS/SATA Data Cable Guide
By default, the chassis will include one AXXCBL450HD7S cable that can be routed from the motherboard to each of four HDDs. SAS data cables may need to
be ordered separately when adding a SAS RAID module, SAS RAID PCIe* add-in card and/or Hot-Swap Backplanes to the system.
SAS / SATA data cables are NOT included with any of the chassis.

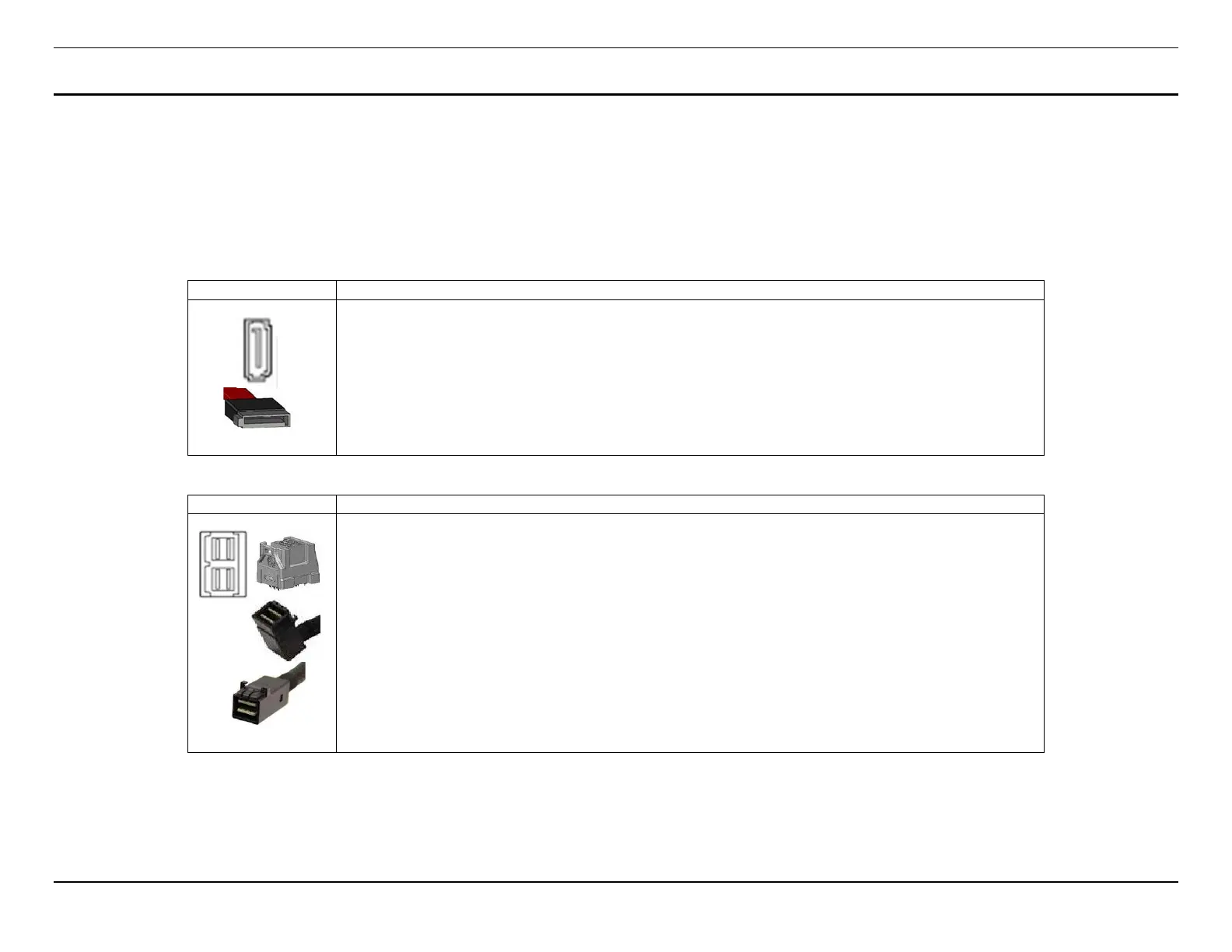

3.1 SAS/SATA Data Cable Connector Types
There are three storage interface connector types used within this product family:
Table 6. Single Port SATA Connector
Description
7-pin Single Port SATA
Support for up to 6 Gb/sec SATA devices
Where used:
- On the server board
- SATA Optical Drive – CD/DVD
- SATA DOM
Table 7. Multiple Channel MiniSAS HD Connectors
Description
SFF-8643
Support for up to 12 Gb/Sec SAS and 6 Gb/sec SATA devices
PCIe* (NVMe) SFF support associated with Intel Accessory Kit iPC FUP8x25S3NVDK
Where used:
- 12Gb/sec 4x3.5” Hot-Swap Backplane (iPC FUP4X35S3HSDK, FUP4X35S3HSBP)
- 12Gb/sec 8x2.5” Hot-Swap Backplane (iPC FUP8X25S3HSDK , FXX8X25S3HSBP)
- All 12 Gb/sec SAS RAID Controllers
- All 12 Gb/sec SAS Expander Cards
