Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List
18
3.2.3 8x3.5” Hot-swap HDD SAS/SATA Cable Guide
The 8x3.5” hot-swap hard drive configuration is an upgrade option that requires two hot-swap hard drive cage kits - iPC FUP4X35S3HSDK.
The Mini-SAS cable kits - iPC AXXCBL380HDHD, AXXCBL650HDHD or AXXCBL650HDMS must be ordered separately.

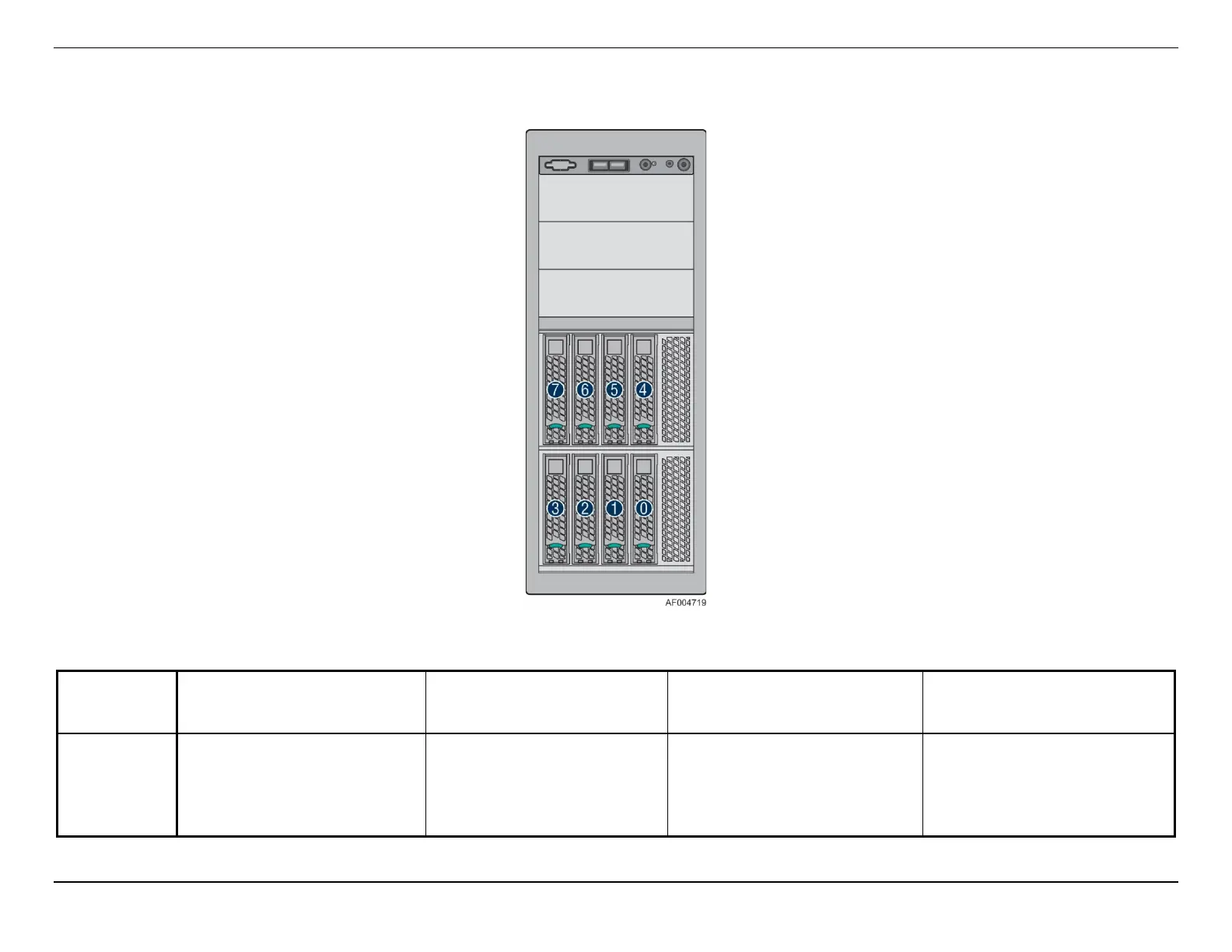

Figure 5. SATA/SAS 0-7
Table 12. 8x3.5” Hot-swap HDD Configuration Cable Guide
Drive Support
Cables for On-Board SATA
Controller to Backplane
Cables for On-Board SAS
Controller on S2600CW2SR or
S2600CWTSR to Backplane
Cables for 12 Gb SAS RAID PCIe*
add-in card to Backplane
Cables for 6 Gb SAS RAID PCIe*
add-in card to Backplane
Top and
Bottom
Hot-swap
4x3.5”
SATA -> BP
sSATA -> BP
380mm HD --- HD
(2) AXXCBL380HDHD
The kit includes two cables
SAS onboard -> BP
380mm HD --- HD
(2) AXXCBL380HDHD
The kit includes two cables
SAS Add-in card -> BP
650mm HD --- HD
(2) AXXCBL650HDHD
The kit includes two cables
SAS Add-in card -> BP
650mm HD --- MS
(2) AXXCBL650HDMS
The kit includes two cables
